Features
| Title | Other BEDROCK CYLINDER FOR 320E PROGRESSIVE THUMB 4170223B |
| Type | Machinery Attachments |
| Sub Type | Hydraulics |
| Make | BEDROCK |
| Model | CYLINDER FOR 320E PROGRESSIVE THUMB |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | 150116422009 |
| RefCode | TA1289563 |
Description

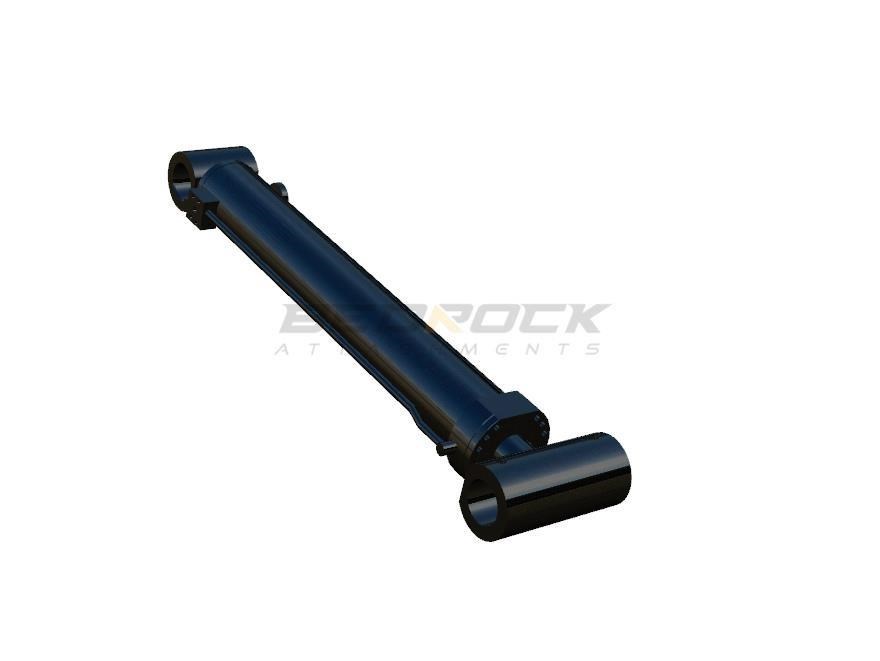

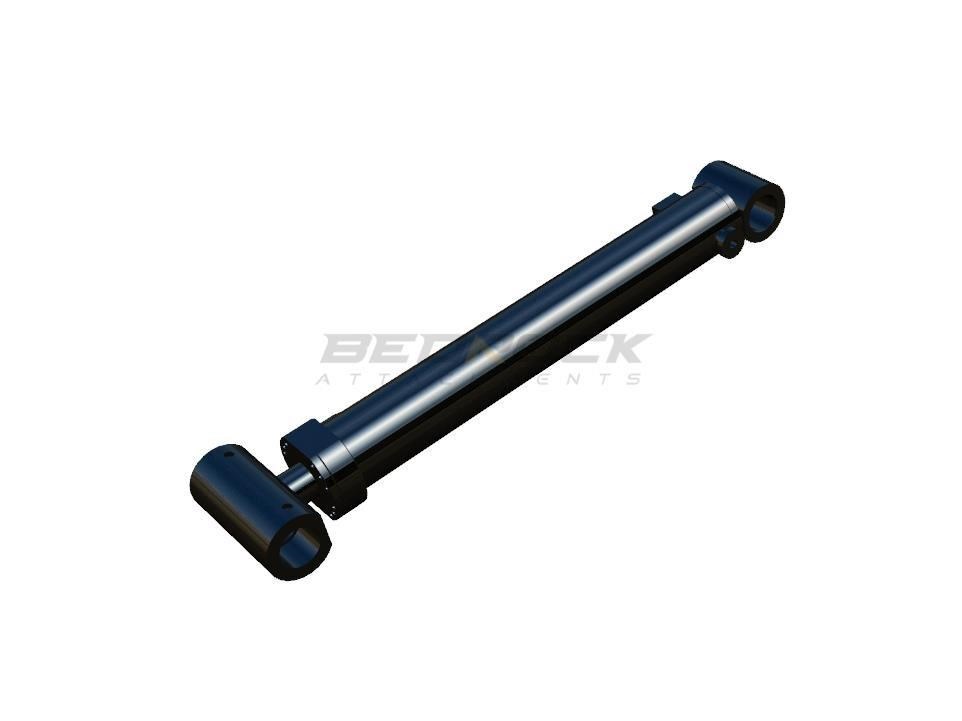

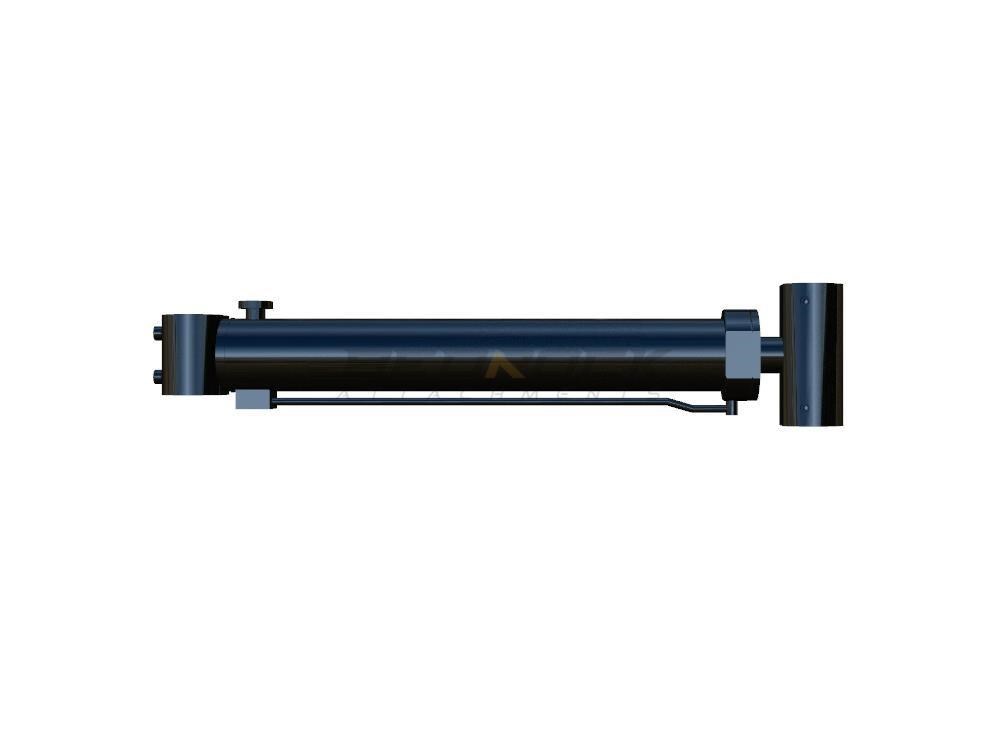

Cylinder for 320E Progressive thumb
SKU: 4170223B
For thumb: 4305837 CYLINDER GP-THUMB, 4180278, 4180280, 4180282, 4180284, 4180286, 4180288, 4180290, 4180292, 4180368, 4180370, 4180372, 4180374, 4180376, 4180378, 4180380, 4180382, 4180384, 4180386, 4180388, 4180390, 4180392, 4180394, 4180396, 4180398, 4180400, 4180402, 4217312, 4217314, 4217344, 4222638, 4509201, 4520469, 4549180, 4654062, 4680096, 4706800, 4739846, 4739848, 4818740, 4839679, 4969688, 5036357, 5055760, 5060836, 5127795, 5249702, 5287210, 5330871, 5330872, 5330873, 5330874, 5330875, 5330876, 5330877, 5330878, 5330879, 5330880, 5330881, 5330882, 5330883, 5330884, 5330918, 5782487, 5782488, 5782489, 5782490, 5782491, 5782493, 5782494, 5782495, 5782496, 5782497, 5782498, 5782499, 5782500, 5782501, 5782502, 5782504, 5782505, 5782506, 5782508, 5782509, 5782510, 5782558, 5790213, 5834537, 5834538, 5834540, 5834541, 5834542, 5845100, 5845103, 5845105, 5849110, 6013975
- Bore: 127mm / 5in
- Stroke: 914.4mm / 36in
- Working pressure: 276 bar
- Test pressure: 345 bar
- Length range: 1270 - 2184.4 mm
- Pin sizes: 69.9mm (Pin 3843914B, 3870288B unincluded)
SKU: 4170223B
For thumb: 4305837 CYLINDER GP-THUMB, 4180278, 4180280, 4180282, 4180284, 4180286, 4180288, 4180290, 4180292, 4180368, 4180370, 4180372, 4180374, 4180376, 4180378, 4180380, 4180382, 4180384, 4180386, 4180388, 4180390, 4180392, 4180394, 4180396, 4180398, 4180400, 4180402, 4217312, 4217314, 4217344, 4222638, 4509201, 4520469, 4549180, 4654062, 4680096, 4706800, 4739846, 4739848, 4818740, 4839679, 4969688, 5036357, 5055760, 5060836, 5127795, 5249702, 5287210, 5330871, 5330872, 5330873, 5330874, 5330875, 5330876, 5330877, 5330878, 5330879, 5330880, 5330881, 5330882, 5330883, 5330884, 5330918, 5782487, 5782488, 5782489, 5782490, 5782491, 5782493, 5782494, 5782495, 5782496, 5782497, 5782498, 5782499, 5782500, 5782501, 5782502, 5782504, 5782505, 5782506, 5782508, 5782509, 5782510, 5782558, 5790213, 5834537, 5834538, 5834540, 5834541, 5834542, 5845100, 5845103, 5845105, 5849110, 6013975
- Bore: 127mm / 5in
- Stroke: 914.4mm / 36in
- Working pressure: 276 bar
- Test pressure: 345 bar
- Length range: 1270 - 2184.4 mm
- Pin sizes: 69.9mm (Pin 3843914B, 3870288B unincluded)
