BEMATO BMT 3060AH

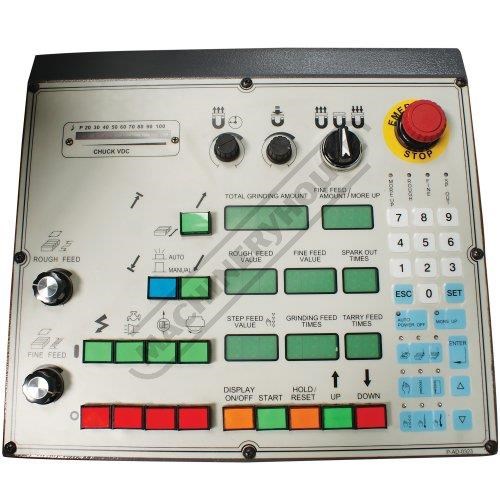

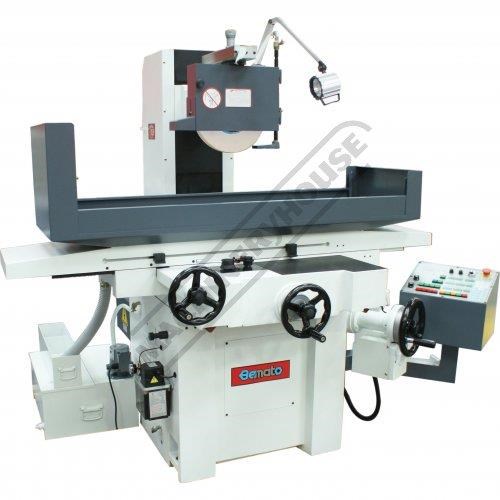

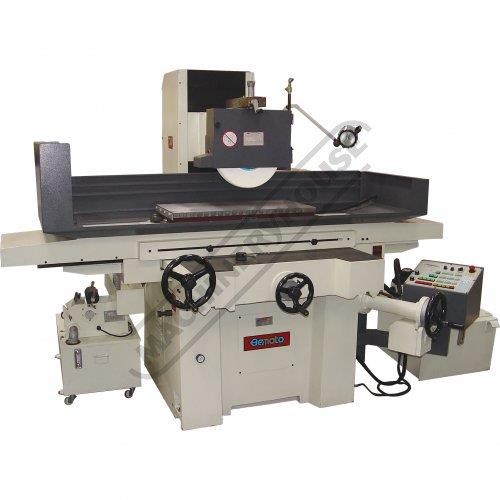

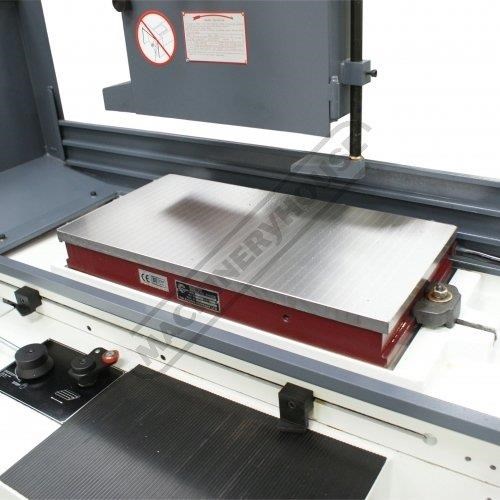

BMT-3060AH Precision Auto Hydraulic Surface Grinder 670 x 340mm Table Travels Includes AD5 Auto Cont BEMATO BMT-3060AH Precision Auto Hydraulic Surface Grinder 670 x 340mm Table Travels Includes AD5 Auto Control CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: G248 Manufactured in Taiwan When it comes to surface grinding the Bemato BMT-3060AH Automatic AD5 controlled machine is in a class above the rest in precision, quality, accuracy and functionality, this unique machine is accepted and is recognised in the majority of engineering companies' worldwide. Special design features to improve the finish of your work piece is the Programmable AD5 control, allowing operator to work on other projects or jobs whilst machine is in automatic mode. This also has additional functions for rough grinding, finish grinding, spark-out and head will rapid return automatically when programme has finished. Also incorporated within the unit is an electromagnetic chuck with electronic demagnetise. NOTE: Larger models also available on special order request Features: Optimized Structure: The major parts are manufactured from high quality cast iron combined with an outstanding structural design. These parts have been stress relieved to ensure maximum rigidity stability minimize vibration and maintain machining accuracy Precision Spindle Design: The spindle runs in a class P4 high precision angular contact bearing assuring run out accuracy in 2?m. The cartridge-type spindle is completely sealed and lubricated for long working lifetime providing high accuracy grinding and a long service life. Turcite-B on Slideways: The XZ axis slideways have been specially coated with a durable turcite-B to minimise friction between slides and to provide long life accuracy Automatic Pressure Lubrication: This system lubricates the slide-ways and screws with a timer adjustment providing optimum machine conditions AD5 NC Auto Down Feed: Automatic down-feed AD5 control and rapid UP/DOWN system standard on Bemato models are a 3 axis fully automated for greatly increasing operational convenience Plunge and surface grinding Cross & vertical micro incremental feed 0.001mm 2-step grinding procedure: roughing - finishing Rapid auto return to home positions Pre-set spark out Includes: - Electromagnetic chuck with demagnetise - Balancing arbor - Balancing stand - Parallel dresser - Coolant system - Wheel flange - Work light - AD5 control Specifications: ORDER CODE: G248 MODEL: BMT-3060AH AD5 Controller: Yes Magnetic Chuck Size (mm): 600 x 300 Longitudinal Table Traverse - Maximum (mm): 670 Cross Table Traverse - Maximum (mm): 340 Table Bed Size (mm): ~ Spindle To Table - Maximum (mm): 500 (Optional 600) Wheel Diameter (mm): 355 Vertical Increment Graduations (mm): 0.005 Vertical Graduations Per Revolution (mm/rev): 2 Cross Increment Graduations (mm): 0.02 Cross Graduations Per Revolution (mm/rev): 5 Spindle Motor (kW / hp): 3.75 / 5 Voltage / Amperage (V / amp): 415 Nett Weight (kg): 1950 To Purchase Online Please Visit The Machineryhouse Website & Search For 'G248' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
