CATERPILLAR 300.9D

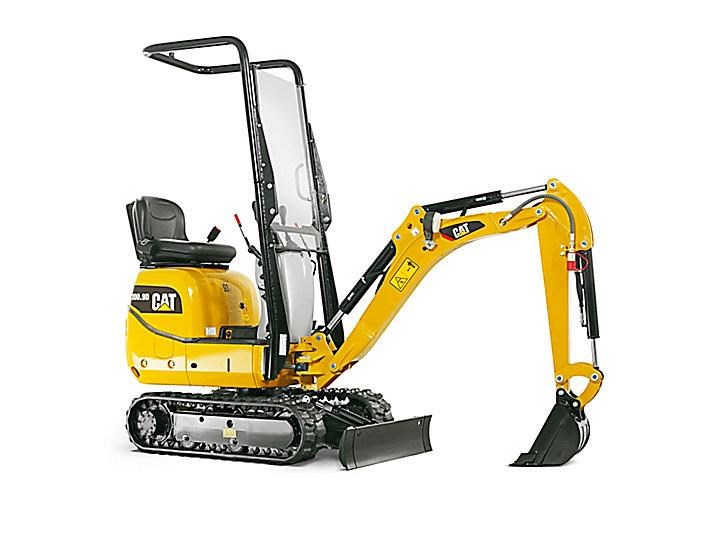

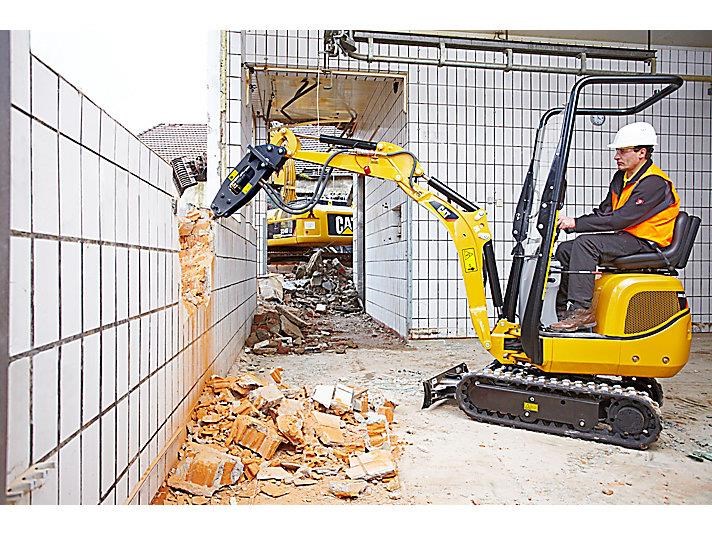

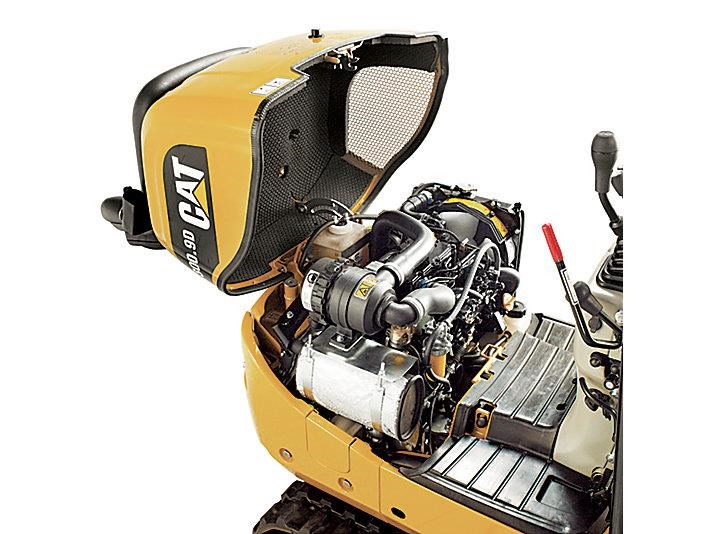

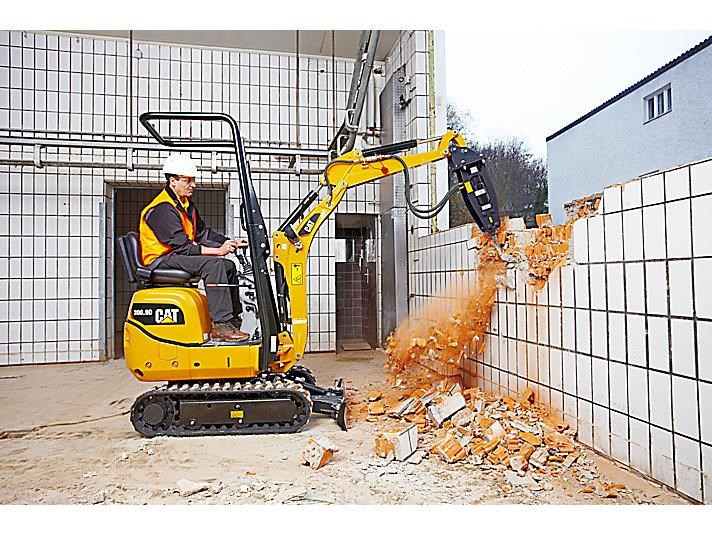

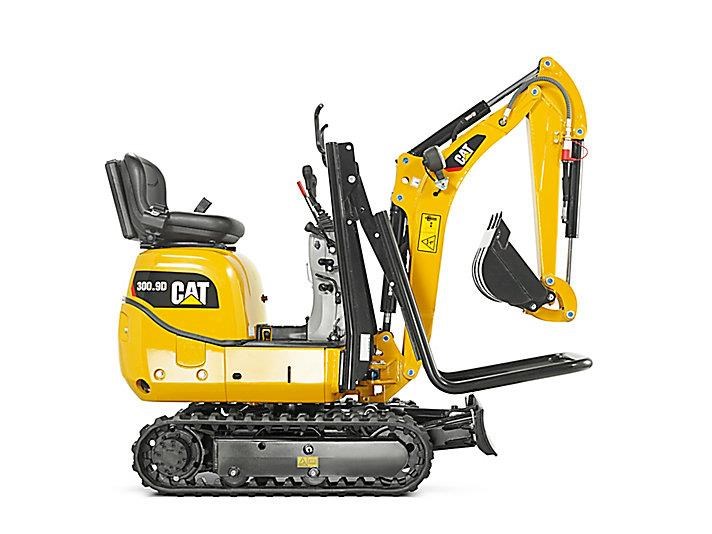

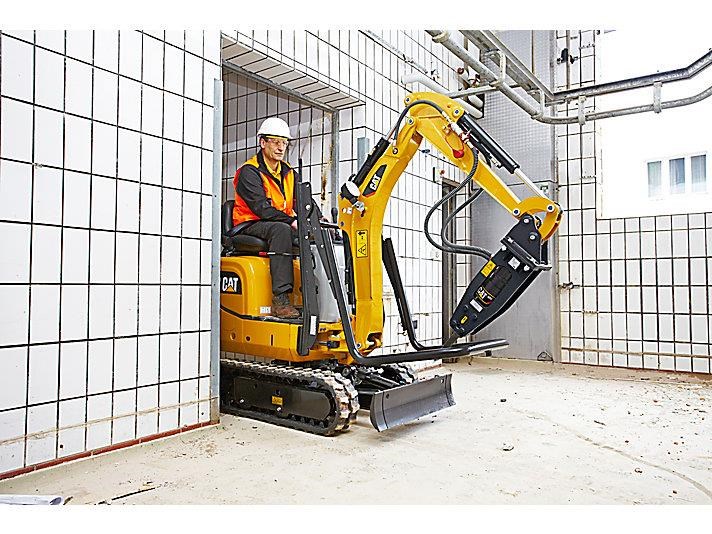

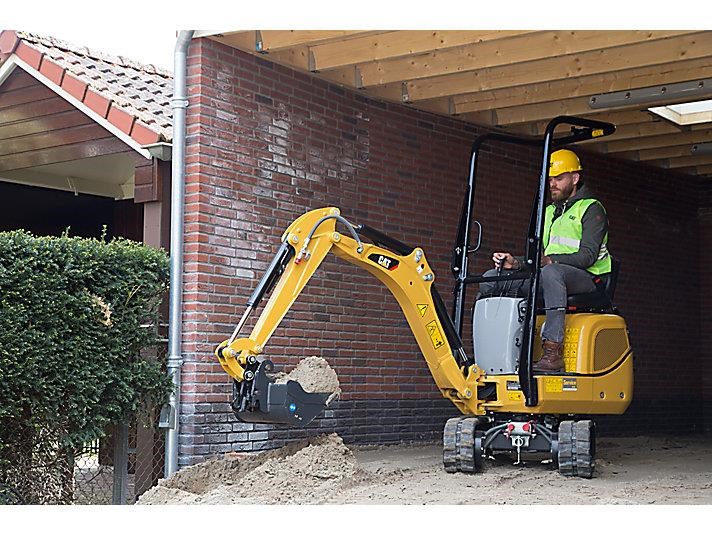

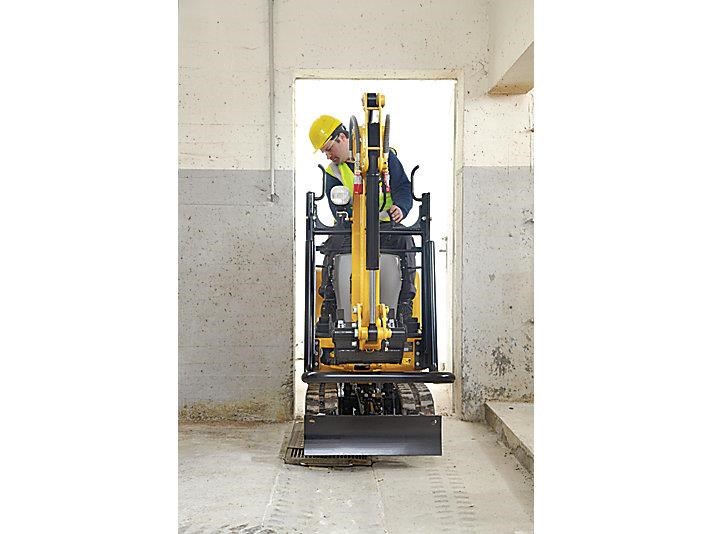

CATERPILLAR?? 300.9D MINI HYDRAULIC EXCAVATOR OVERVIEW Caterpillar is pleased to announce the introduction of the 300.9D sub 3 tonne mini excavator machine. The 300.9D expands the Cat?? Mini Excavator offering. Most notably, the new 300.9D sub 1 tonne class provides customers with a lower cost unit for entrance into MHE ownership. OPERATIONAL DATA UNITS: US METRIC Digging Force - Bucket - 8.9 kN Digging Force - Stick - 4.5 kN Operating Weight - With Safety Frame - 985.0 kg Operating Weight - Without Safety Frame - 935.0 kg ENGINE Engine Model - Yanmar 31NV70 Net Power - 9.6 kW Rated Speed - 2100.0 r/min Battery - 12 V, 20 Amp Diesel Tank Volume - 10.0 l Displacement - 854.0 cm?? Flywheel Output ISO - 9.6 kW Gross Power - ISO 14396 - 13.7 kW Make/Type - Yanmar 31NV70 Maximum Engine Output - 13.7 kW Type - Water cooled model 3-cylinder diesel engine WEIGHTS Operating Weight - 935.0 kg Operating Weight - With Safety Frame - 985.0 kg Operating Weight - Without Safety Frame - 935.0 kg COMPACT DIMENSIONS With an overall width of only 730 mm (2 ft 5 in) the Cat?? 300.9D can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible. EXTENDING UNDERCARRIAGE AND BLADE An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator's seat, enables the machine to pass through narrow openings. FOLDABLE SAFETY FRAME A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage. PERFORMANCE AND DURABILITY POWERFUL ENGINE AND HYDRAULICS The 13.7 kW (18 hp) engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful Cat?? hammer. Low noise and vibration levels deliver comfortable operation. HOSE AND CYLINDER PROTECTION Bucket hoses are well protected within the boom and the cylinder is mounted above the structure to increase the machines durability for working in tough environments. The clean lines of the front linkage also provide excellent visibility to the digging area. AUXILIARY HYDRAULICS AS STANDARD The 300.9D is fitted with auxiliary lines for hammer operation routed down to the stick. Locating the connecting point close to the work tool reduces connecting hose lengths and potential for damage. USER FRIENDLY OPERATION SIMPLE CONTROLS (EASE OF USE) The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice. EXTENDING DOZER BLADE Blade extensions simply rotate and lock into position allowing the machine to be quickly configured for narrow width or maximum blade coverage. Locking pins and extension plates are retained with the machine to reduce potential for lost or damaged components. SERVICEABILITY Service and maintenance time is reduced to a minimum with a simple to open steel engine cover and all maintenance and greasing points easily accessible.
