Features
| Title | 2024 Other CATERPILLAR 320 4170224N |
| Type | Machinery Attachments |
| Sub Type | Hydraulics |
| Make | CATERPILLAR |
| Model | 320 |
| Year | 2024 |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | 150108376305 |
| RefCode | TA1289101 |

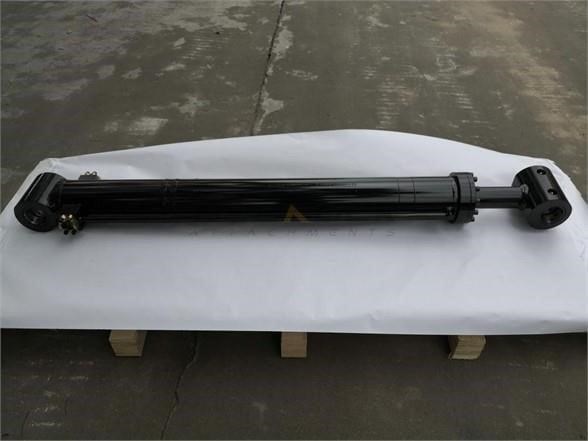

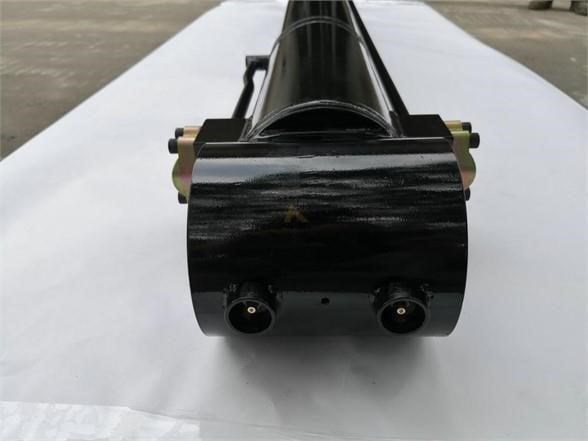

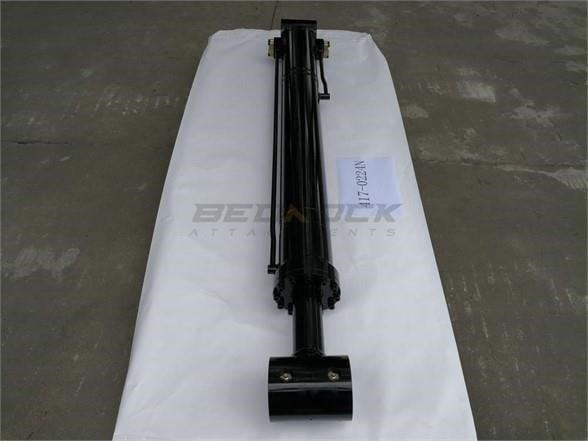

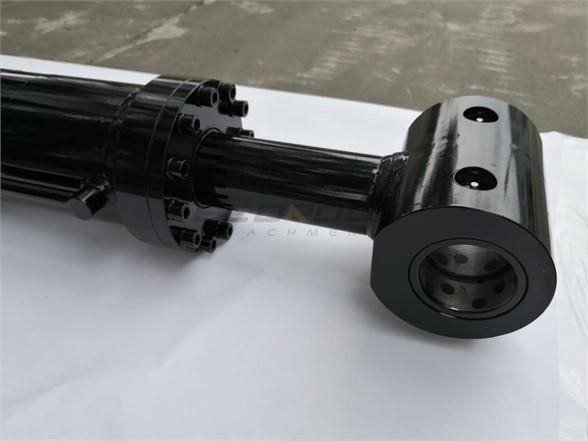

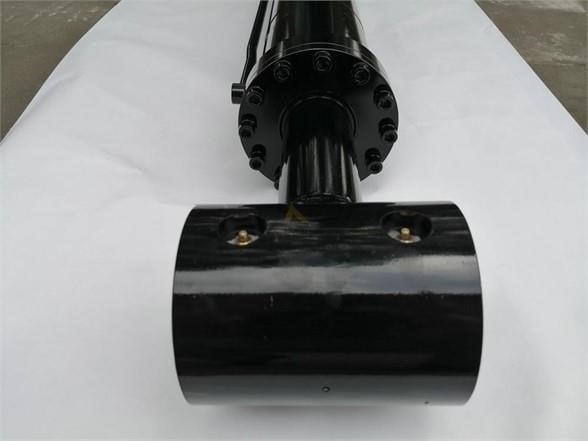

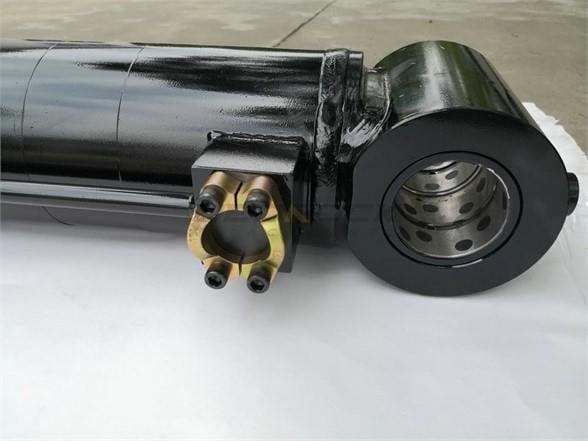

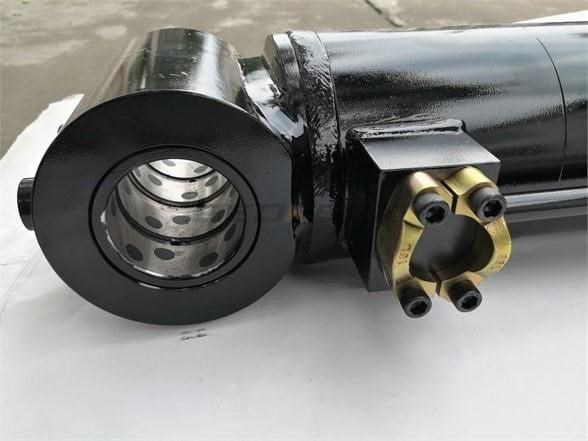

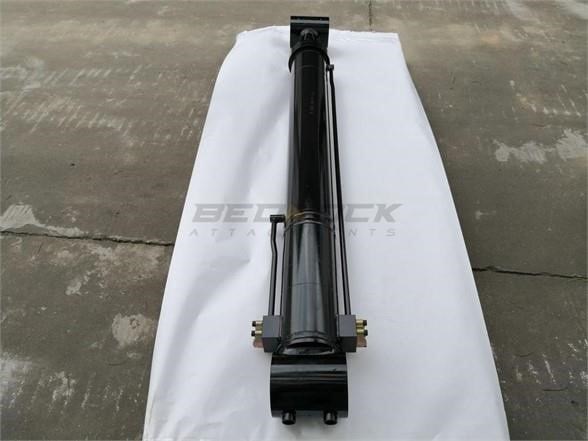

Description

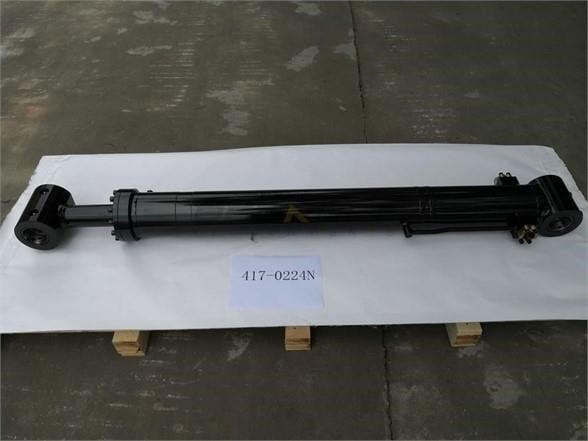

SKU: 4170224N
For thumb: 4180294, 4180296, 4180298, 4180300, 4180302, 4180304, 4180306, 4180308, 4217316, 4217318, 4222640, 4456164, 4546682, 4568295, 4724706, 4745731, 4837643, 5834543, 5834544, 5834545, 5834546, 5834547, 5845110
Bore: 127mm / 5in
Stroke: 819.15mm / 32.25in
Working Pressure: 276 bar
Test Pressure: 310 bar
Length Range: 1730 - 2549.2 mm
Includes 2 Pins
Pin Diameter: 69.9mm
Dimension: 13.78" x 14.17" x 77.17"
Weight: 352.8 lbs.
For thumb: 4180294, 4180296, 4180298, 4180300, 4180302, 4180304, 4180306, 4180308, 4217316, 4217318, 4222640, 4456164, 4546682, 4568295, 4724706, 4745731, 4837643, 5834543, 5834544, 5834545, 5834546, 5834547, 5845110
Bore: 127mm / 5in
Stroke: 819.15mm / 32.25in
Working Pressure: 276 bar
Test Pressure: 310 bar
Length Range: 1730 - 2549.2 mm
Includes 2 Pins
Pin Diameter: 69.9mm
Dimension: 13.78" x 14.17" x 77.17"
Weight: 352.8 lbs.
