Features

Title	DE DIETRICH 6,300LT
Type	Tanks
Sub Type	Vacuum - Pressure
Make	DE DIETRICH
Model	6,300LT
Sale Price	POA
Listing Type	Used
Stock Number	5771
RefCode	TA926456

Description

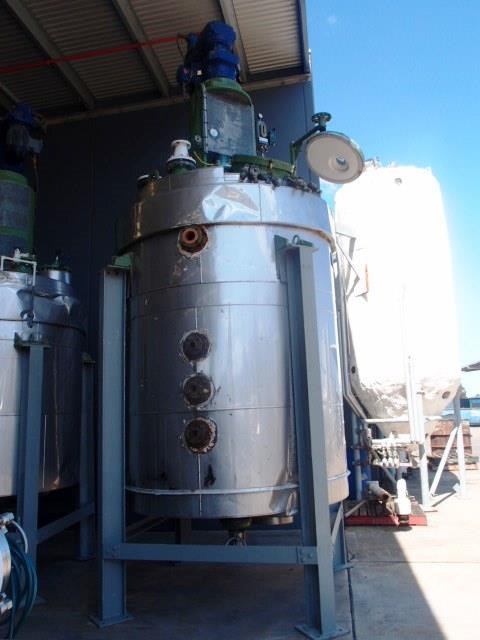

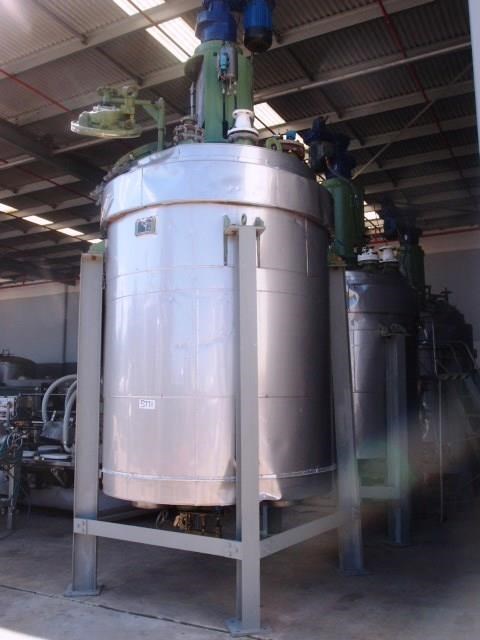

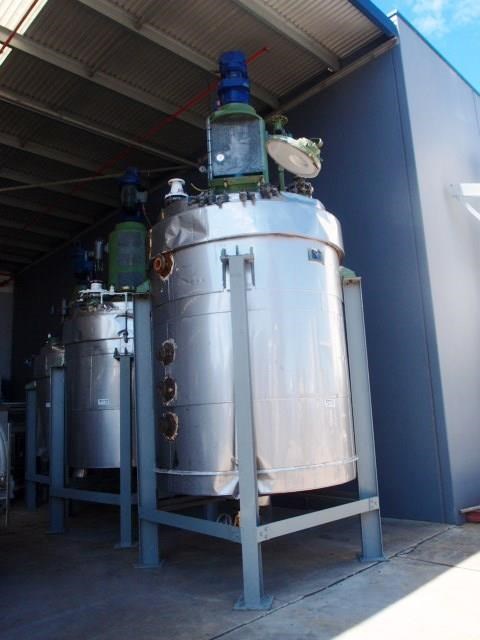

Pressure Vessel Tank (Glass Lined & Jacketed), Capacity: 6,300Lt, Dimension: 2100mm Dia x 1860mm H, Brand: De Dietrich

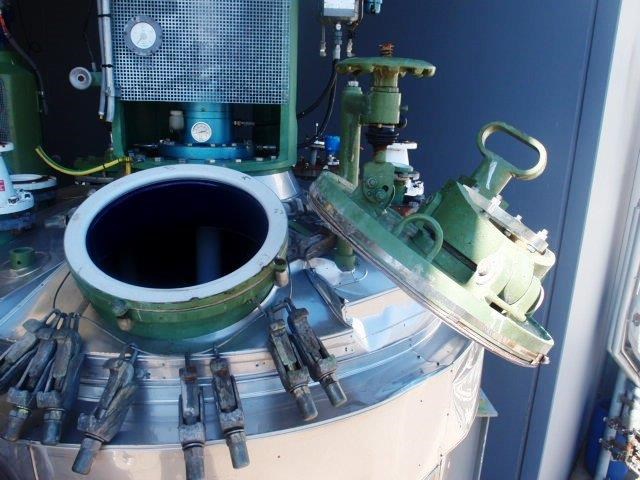

Unit is a glass lined jacketed mixing batch reactor with stainless steel pop riveted insulation.
Unit is complete with Carbone Lorraine graphite condenser.

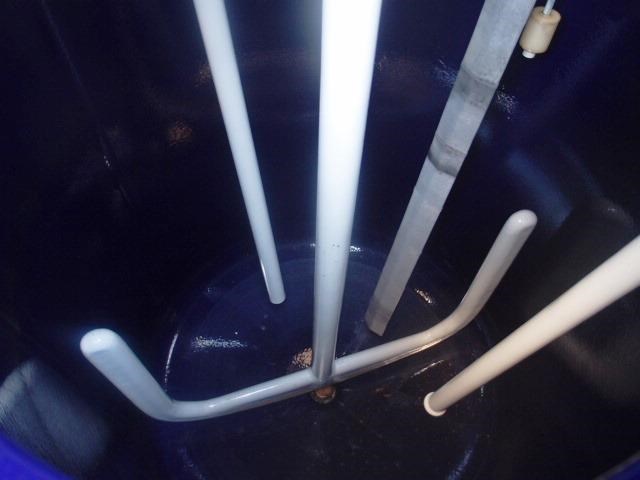

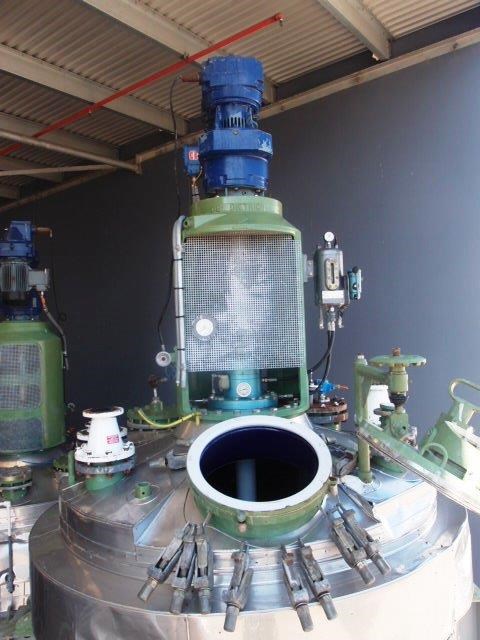

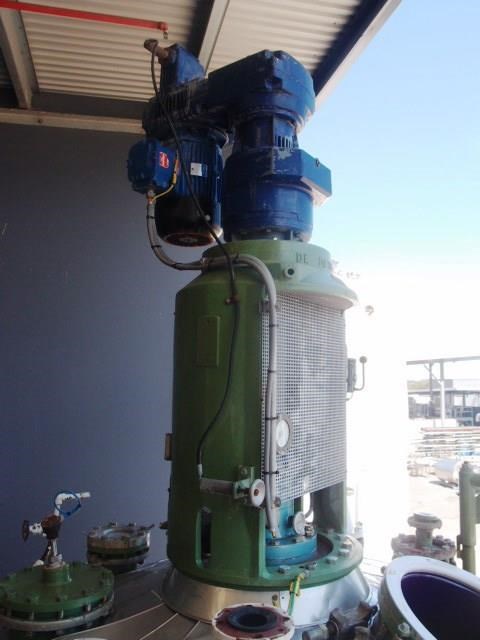

The reactor is fitted with a centre mounted anchor stirrer driven by a SEW 11Kw @ 6-33 RPM variable speed, 415V flameproof gear motor.

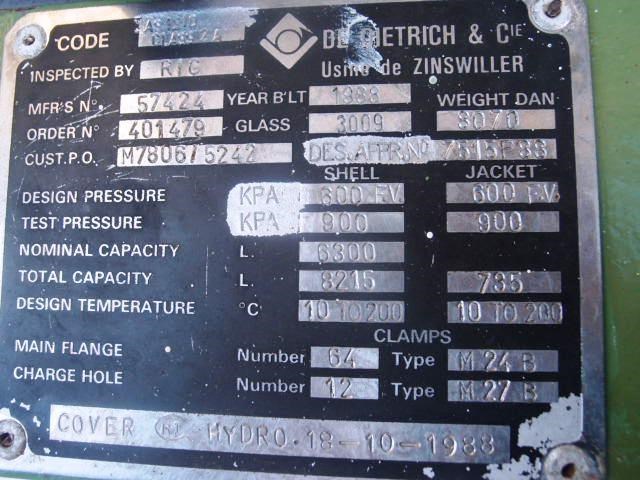

Plate Details:

Manufacturers No. 57424.
Year: 1988.
Weight: 8070 Kg.
Code: AS1210 Class 2A.

Shell Design Pressure: 600 KPA/FV.
Jacket Design Pressure: 600 KPA/FV.
Shell Test Pressure: 900 KPA.
Jacket Test Pressure: 900 KPA.
Shell Nominal Capacity: 6300 Lt.
Shell Total Capacity: 8215 Lt.
Jacket Total Capacity: 735 Lt.
Shell Design Temp.: 10-200 Deg C.
Jacket Design Temp.: 10-200 Deg C.
