EASSON GS10

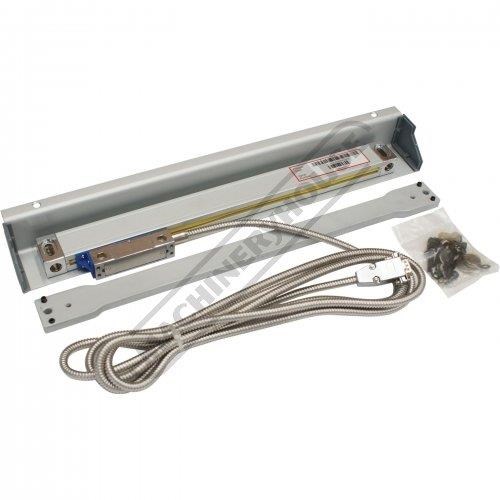

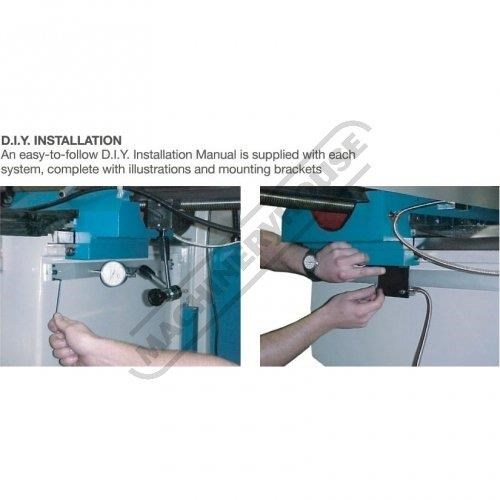

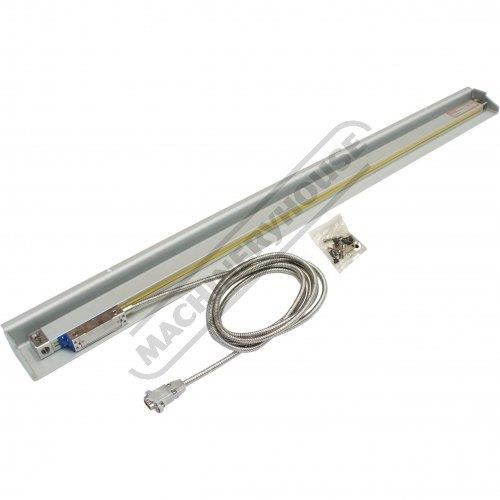

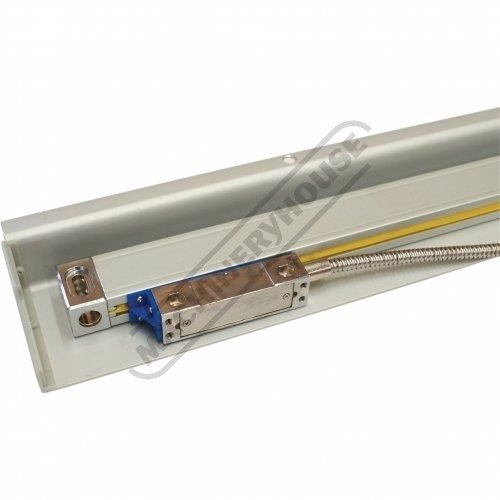

800mm Easson Digital Readout Scale VS10 Standard Scale 5??m Resolution EASSON 800mm Easson Digital Readout Scale VS10 Standard Scale 5??m Resolution CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: D732 Easson VS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation Features: DOUBLE SEAL DESIGNED SCALES: The plastic seals of the transducer use an innovative material to offer superior oil resistance high elastic recovery properties and durability carefully designed lip geometry offer low slide resistance. 100% LASER CALIBRATION: All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications. ADVANCED OPTICAL MEASURING SYSTEM: The slide carrier of the VS series scales use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market. The glass grating slide-ways are lapped and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life. D.I.Y. INSTALLATION: An easy-to-follow D.I.Y. Installation Manual is supplied with each system complete with illustrations and mounting brackets. Specifications: ORDER CODE: D732 MODEL: ~ Type: VS10 Standard Scale Travel - Maximum (mm): 800 Overall Length (L) (mm): 946 Scale Resolution (??m): 5 Grating Pitch: ~ Accuracy (??m): ??10 Output Signal: ~ Connector: ~ Cable Length (Metre): 3 Working Temperature (??C): ~ Sealing Protection Class: ~ Maximum Speed (M/min): ~ Reference Point: ~ Width x Height (W x H) (mm): 27.5 x 33.5 Backing Support Plate (Yes / No): No To Purchase Online Please Visit The Machineryhouse Website & Search For 'D732' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
