EASSON GS10
Contact Seller
Features
| Title | EASSON GS10 |
| Type | Software |
| Sub Type | Industrial Software |
| Make | EASSON |
| Model | GS10 |
| Sale Price | $200 GST Exclusive |
| Listing Type | New |
| Stock Number | 182647 |
| RefCode | TA1266220 |
Description

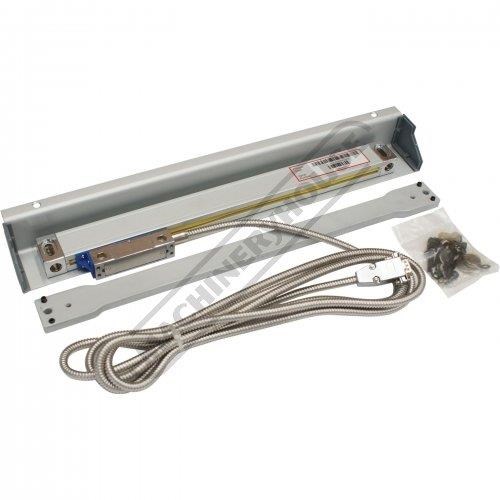

250mm Easson Digital Readout Scale VS10 Standard Scale 5??m Resolution
EASSON 250mm Easson Digital Readout Scale VS10 Standard Scale 5??m Resolution
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D721
Easson VS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation
Features:
DOUBLE SEAL DESIGNED SCALES:
The plastic seals of the transducer use an innovative material to offer superior oil resistance high elastic recovery properties and durability carefully designed lip geometry offer low slide resistance.
100% LASER CALIBRATION:
All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.
ADVANCED OPTICAL MEASURING SYSTEM:
The slide carrier of the VS series scales use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
The glass grating slide-ways are lapped and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

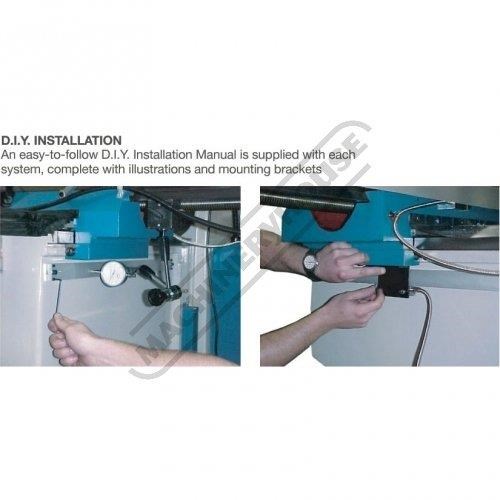

D.I.Y. INSTALLATION:
An easy-to-follow D.I.Y. Installation Manual is supplied with each system complete with illustrations and mounting brackets.
Specifications:
ORDER CODE: D721
MODEL: ~
Type: VS10 Standard Scale
Travel - Maximum (mm): 250
Overall Length (L) (mm): 396
Scale Resolution (??m): 5
Grating Pitch: ~
Accuracy (??m): ??3 - ??5
Output Signal: ~

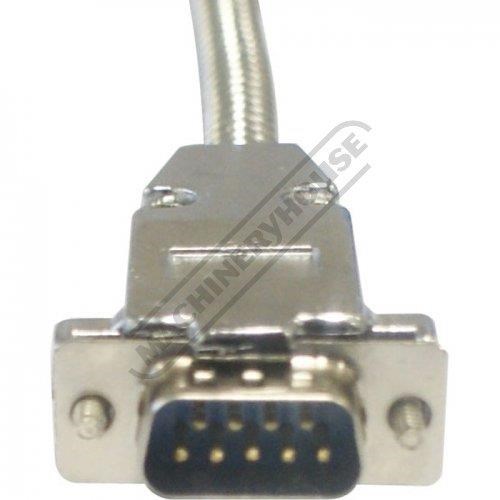

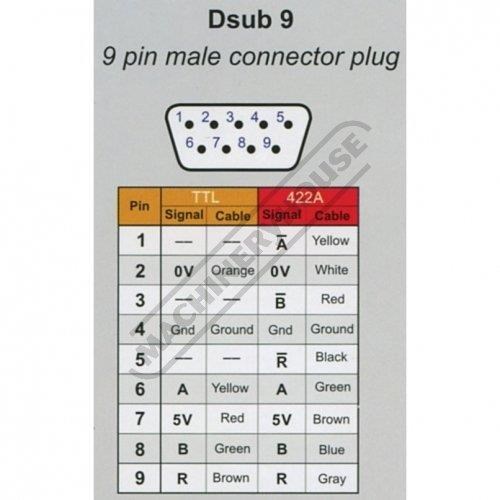

Connector: ~
Cable Length (Metre): 3
Working Temperature (??C): ~
Sealing Protection Class: ~
Maximum Speed (M/min): ~
Reference Point: ~
Width x Height (W x H) (mm): 27.5 x 3.5
Backing Support Plate (Yes / No): Yes
To Purchase Online Please Visit The Machineryhouse Website & Search For 'D721'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
