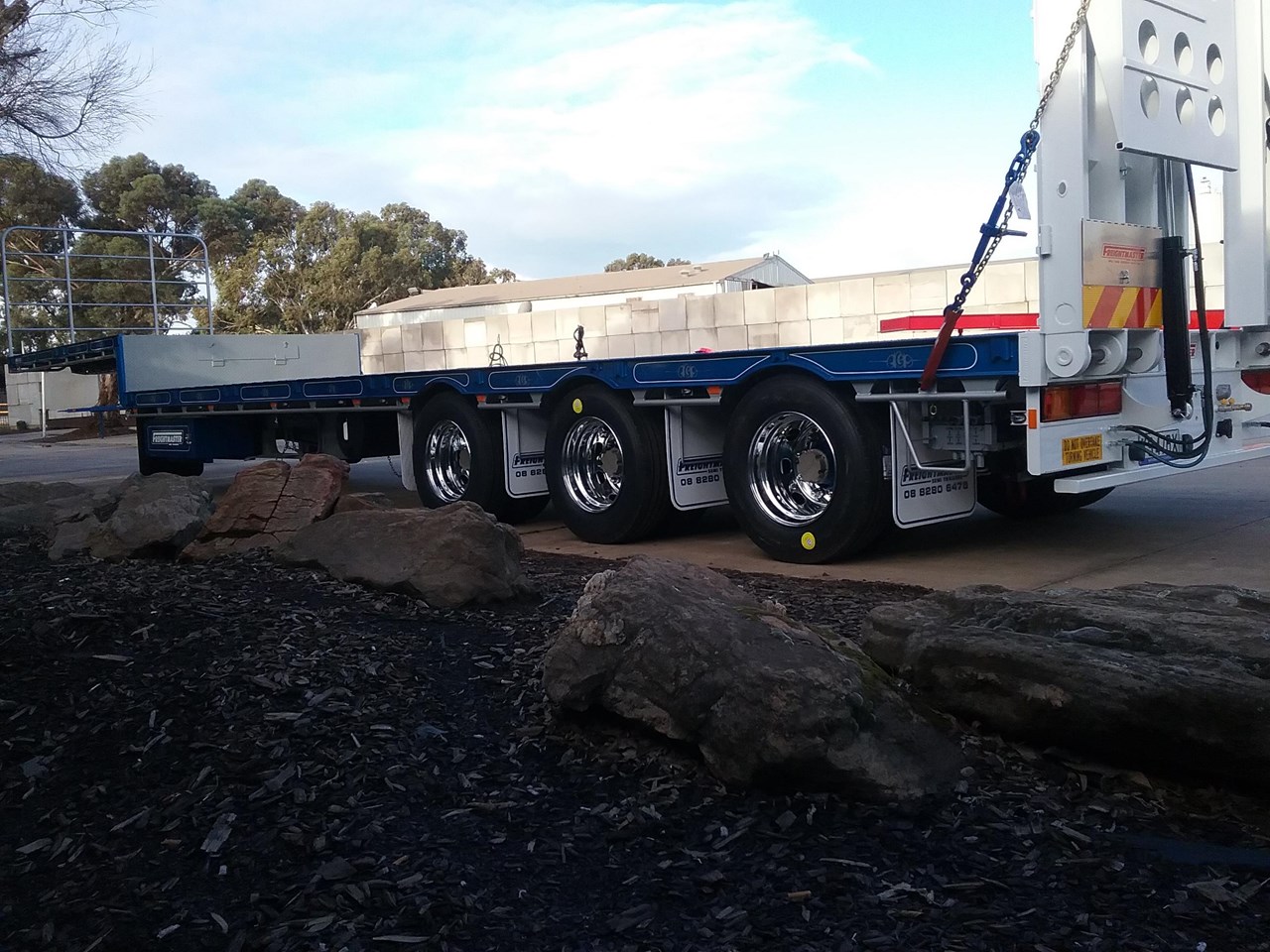

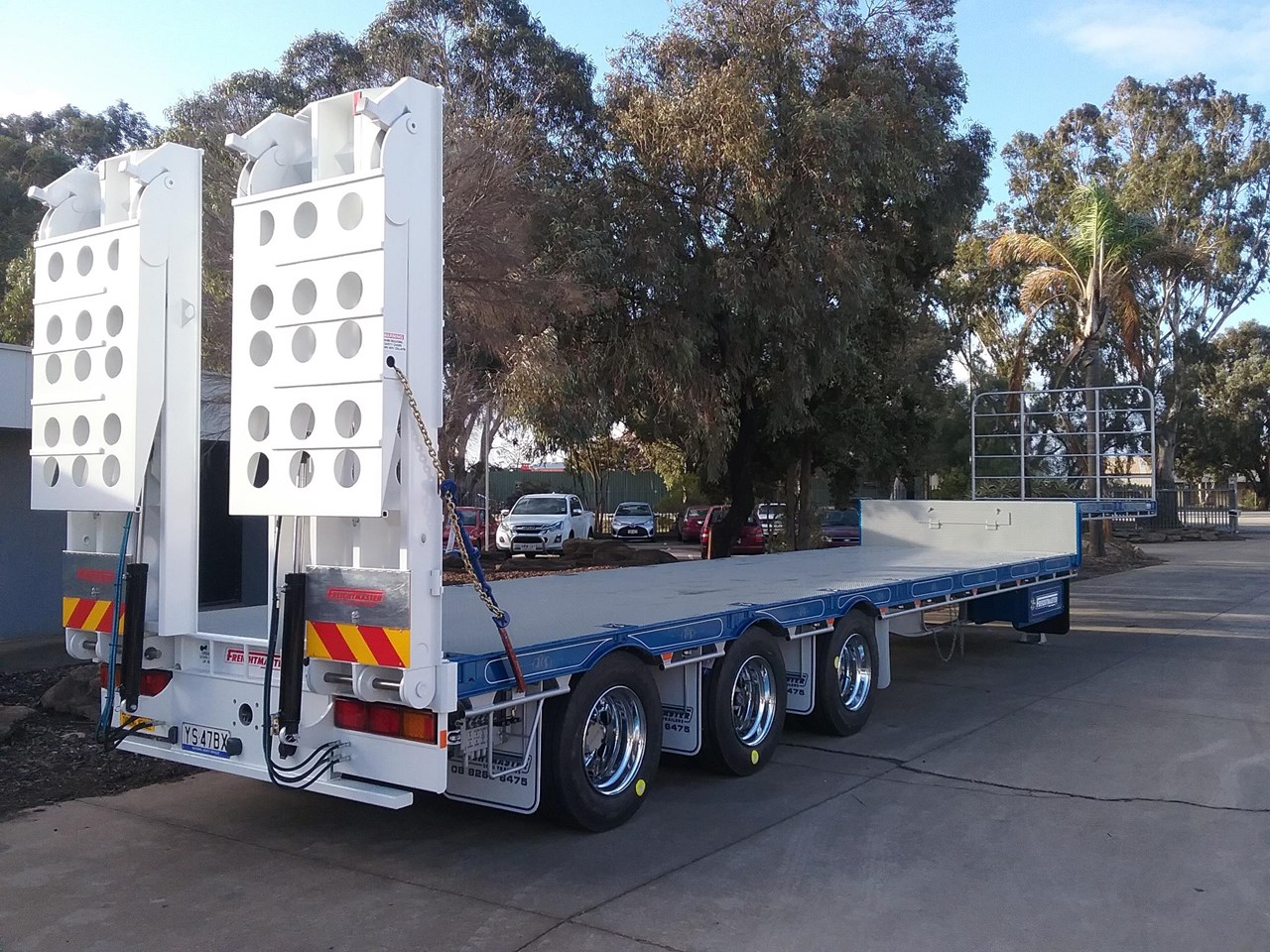

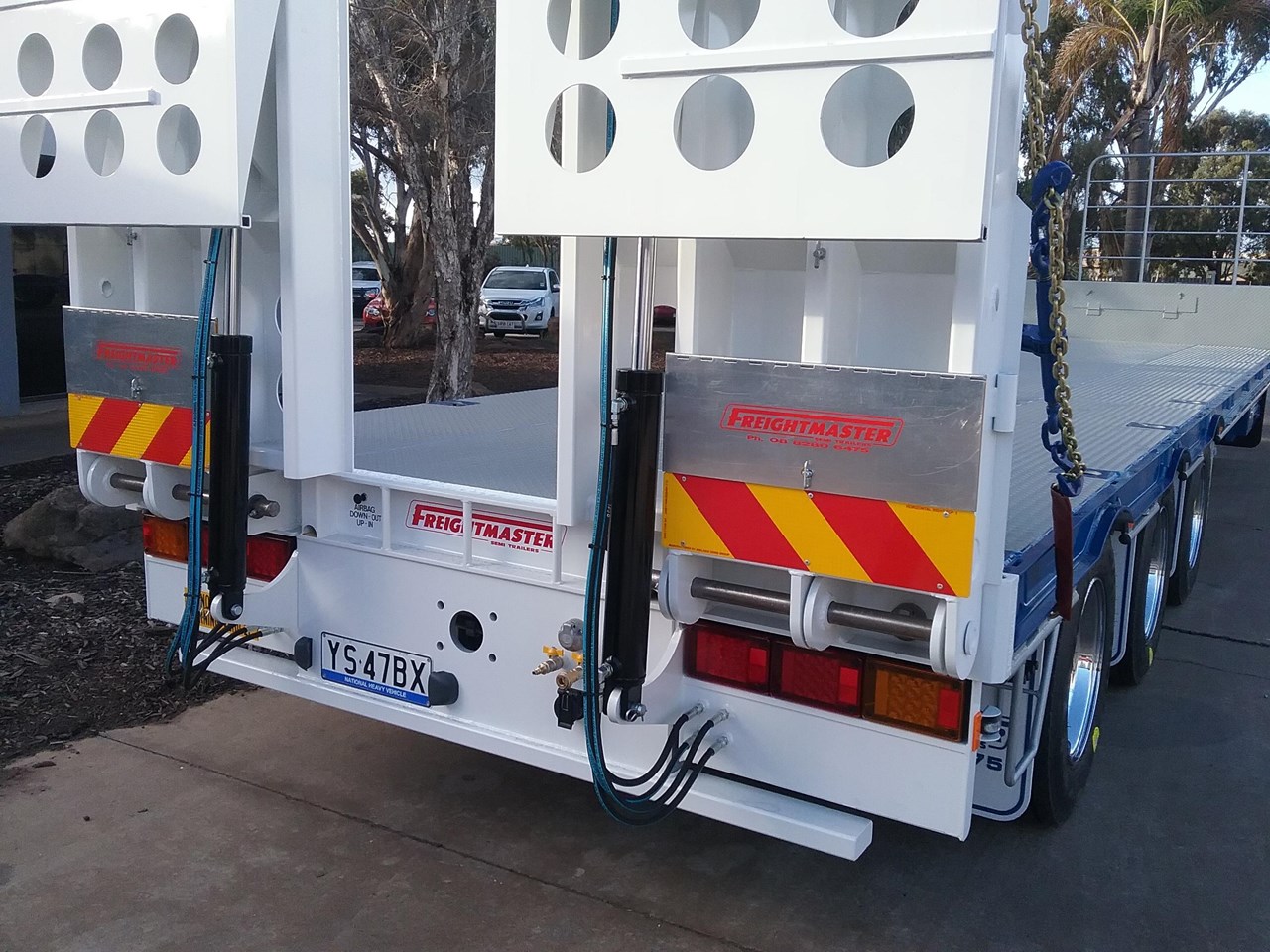

FREIGHTMASTER 45' TRI AXLE DROP DECK H/D

J/N: 11570

Axles: YORK 5" Round Road Baron Axles 10-Stud 285pcd - Grease filled with Auto Slack Adjusters & Hubometer

Suspension: YORK 9'1" Spread Tri Tapered Bush Spring Suspension

Braking System: Air Brake Corp EBS Road Train Brake Kit - Push/Pull Couplings and Yard Release Button - EBS Cable to Rear

Main Beam: 100 x 20mm Top Flange
100 x 25mm Bottom Flange
5mm Webb

Coaming: 125mm TFB with 125mm TFB 'X' members @ 450mm Centres with Gate Pockets

Floor: 3mm Chequer Plate with 9 Floor Runners - 10mm Drop Top Deck
5mm Chequer Plate with 9 Floor Runners - Drop Bottom Deck Flush

10mm thick Adjustable with 50mm Road Train rated Bolt in King Pin set @ 1400mm

Toolbox: Two (2) Steel Lockable Toolboxes 1200 x 550 x 400 with Mud Flaps in Front both sides

Tyre Carrier: Dual Bolt On

Water Tank: One (1) 60 Litre Plastic with Soap Bottle

Lights: All HELLA L.E.D. Lights
6 x L.E.D. Clearance Lights per side with Centre Turning Flasher
2 x L.E.D. Jumbo's at Rear
2 x L.E.D. Number Plate Lights
Standard 6mm Wiring - DG Wiring

Legs: JOST A530 Two Speed Legs with Pad Feet

Gates: Front & Rear Load Racks

Gate Carrier: NIL

Ringfeder: Ringfeder Bracket with Air, Electrical & 50mm Ringfeder Coupling

Twistlocks: Full set, 6 Rows 1 x 20', 1 x 40', 2 x 40' + 2 Stands

Winches: NIL

Tyres: 255/70 Double Coin GL283A Tubeless Tyres on 13 x 8.25 x 22.5 Steel 10-Stud 285pcd Rims

Paint: Sandblasted & Painted in 2-Pak: Chassis: Silver, Coaming: TBA

Sundries: Ramps to Top Deck inc Storage Provision
Road Train & Over Size Signs
16 Chain Down Points (12 Bottom 4 Top)
30T Hydraulic Bi-Fold Ramps ( 3800 x 900 x 6mm Plate ) with Controls on sides
12Volt Powerpack with Battery and Anderson Cable at Front
