2024 GSR E290PX

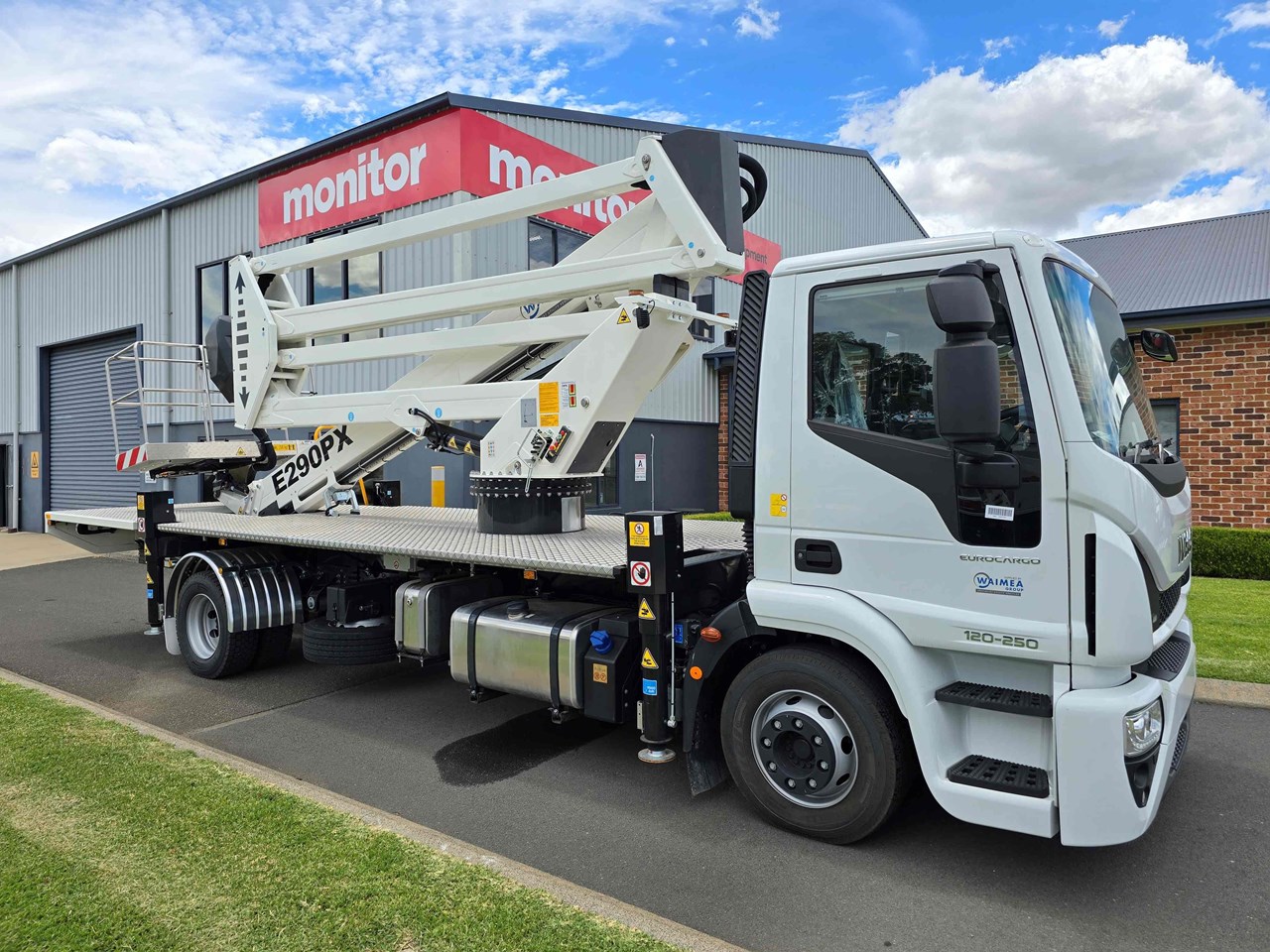

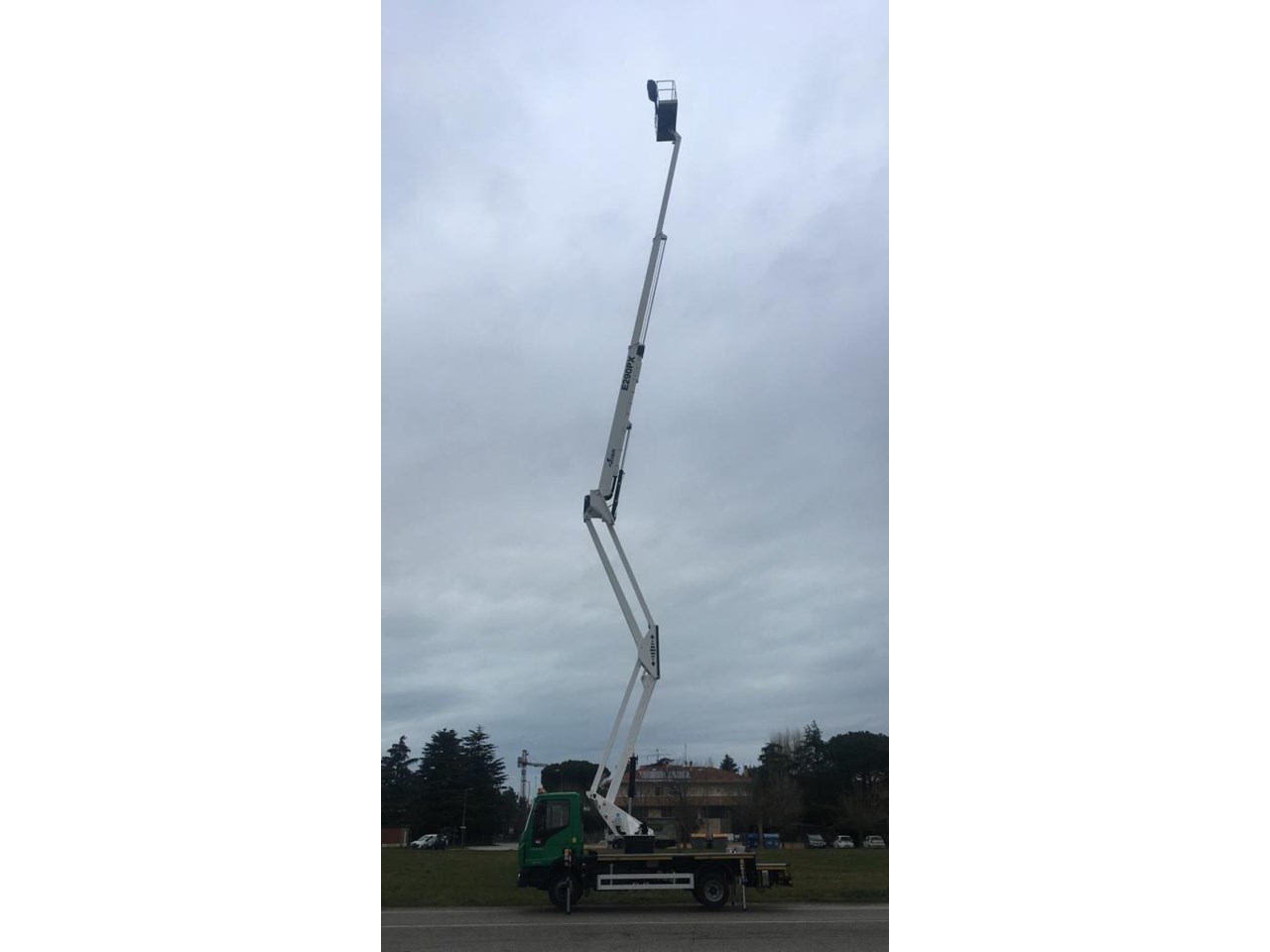

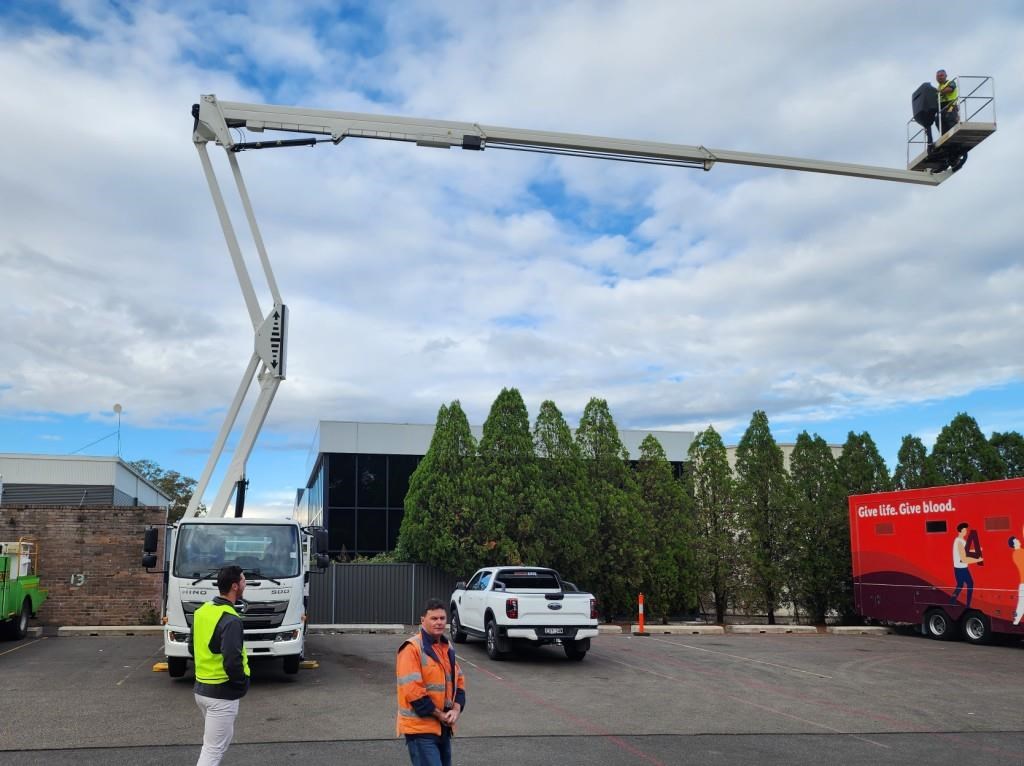

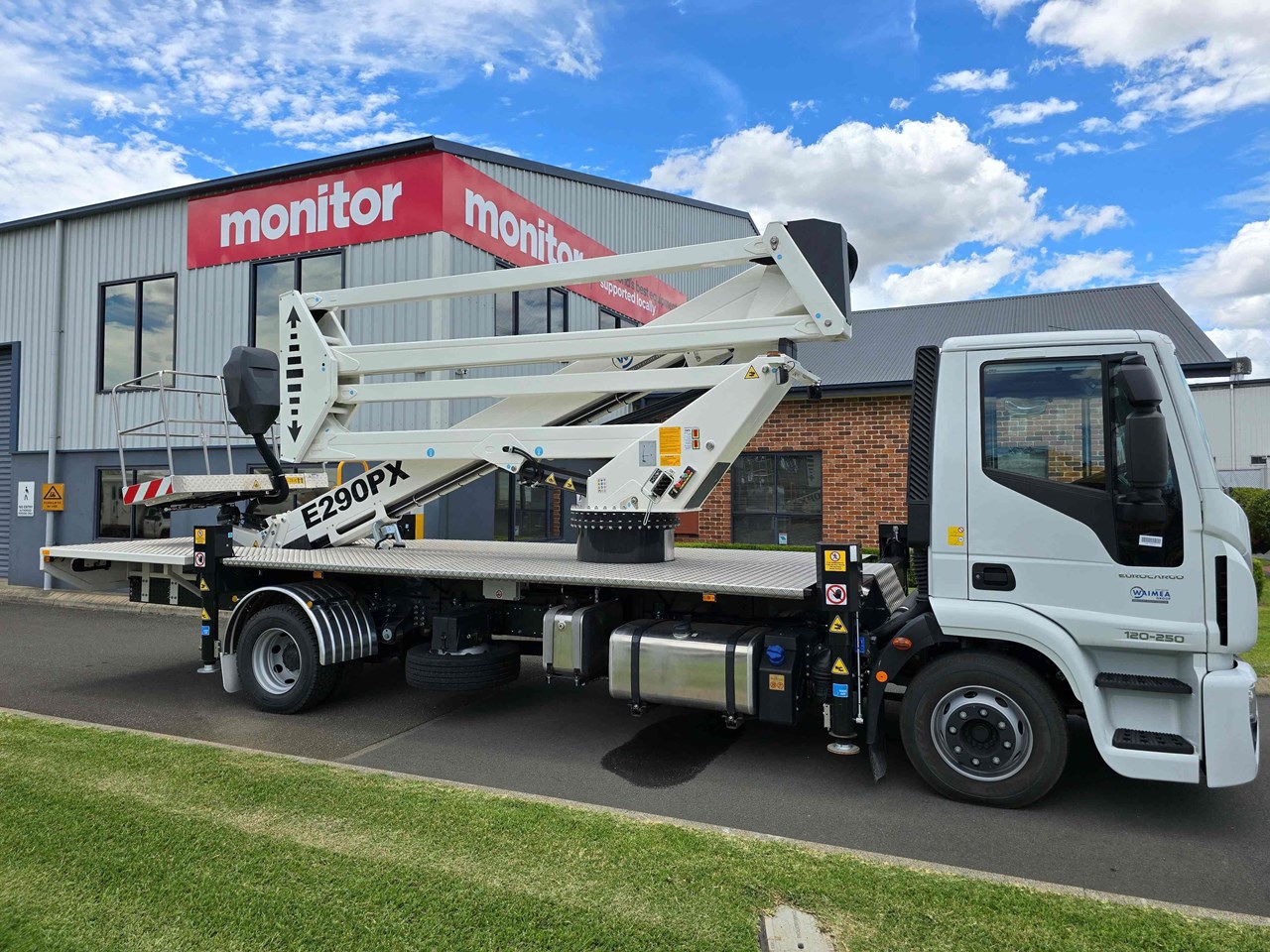

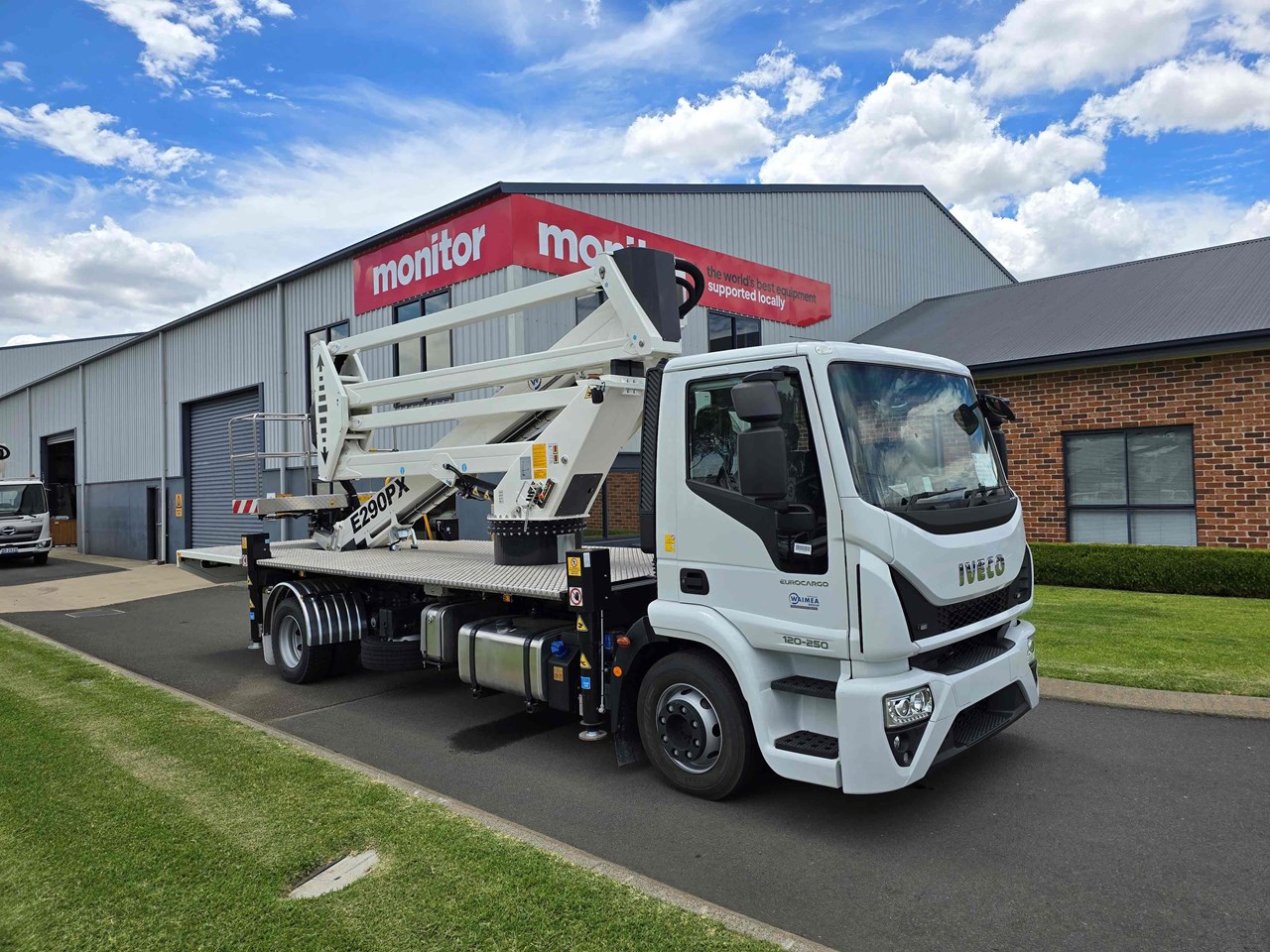

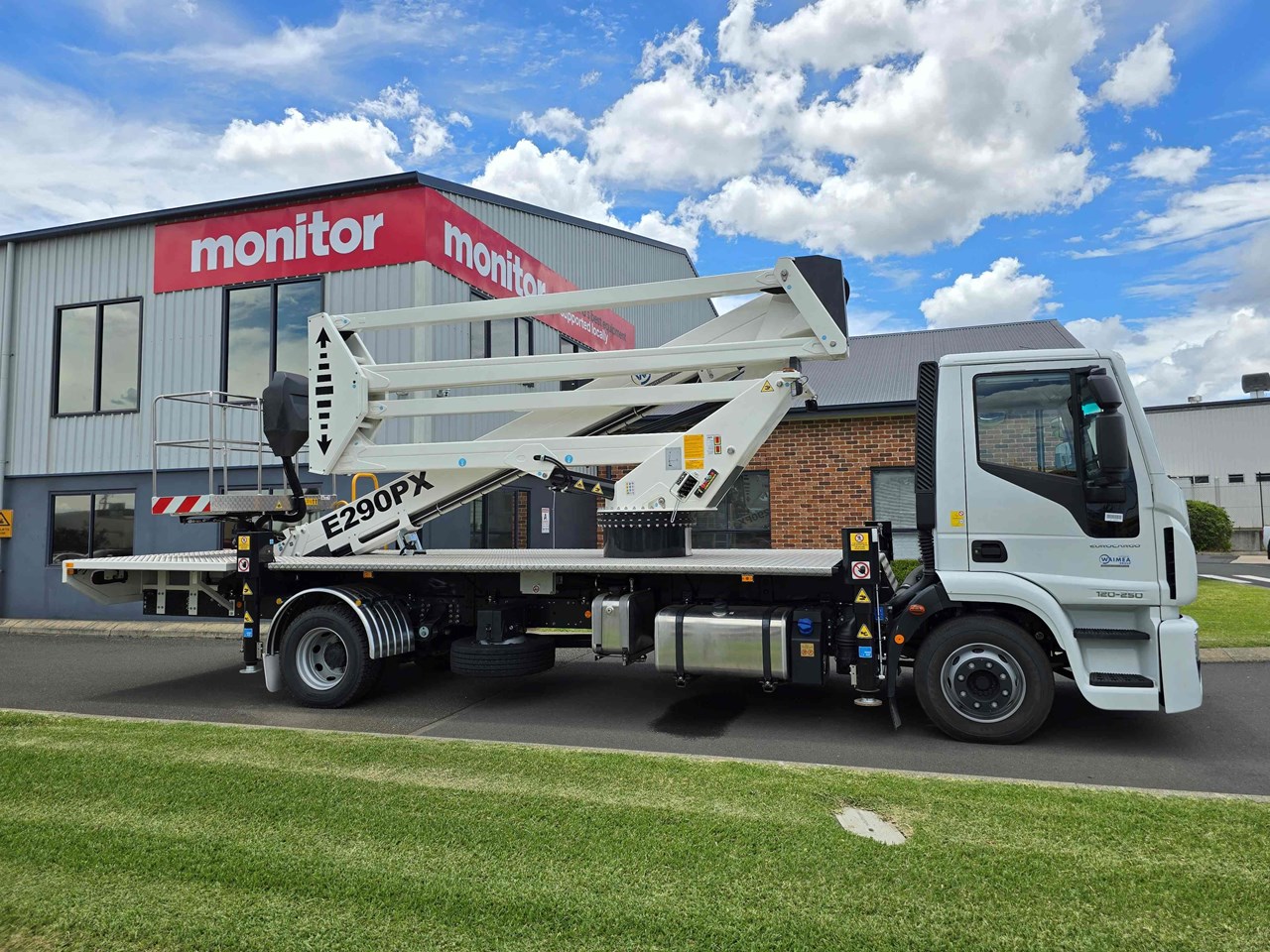

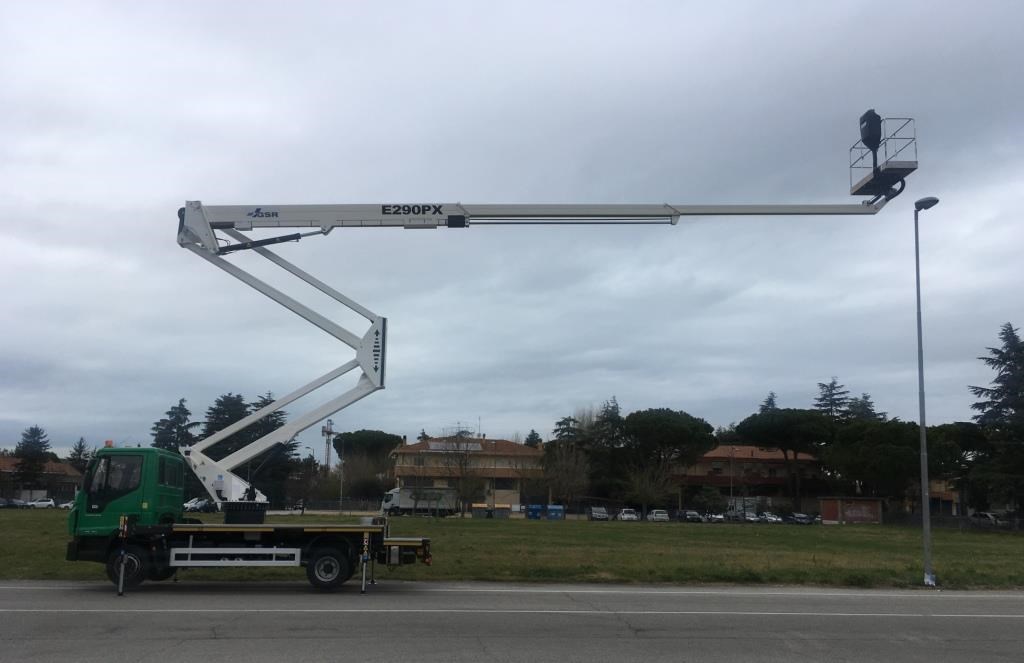

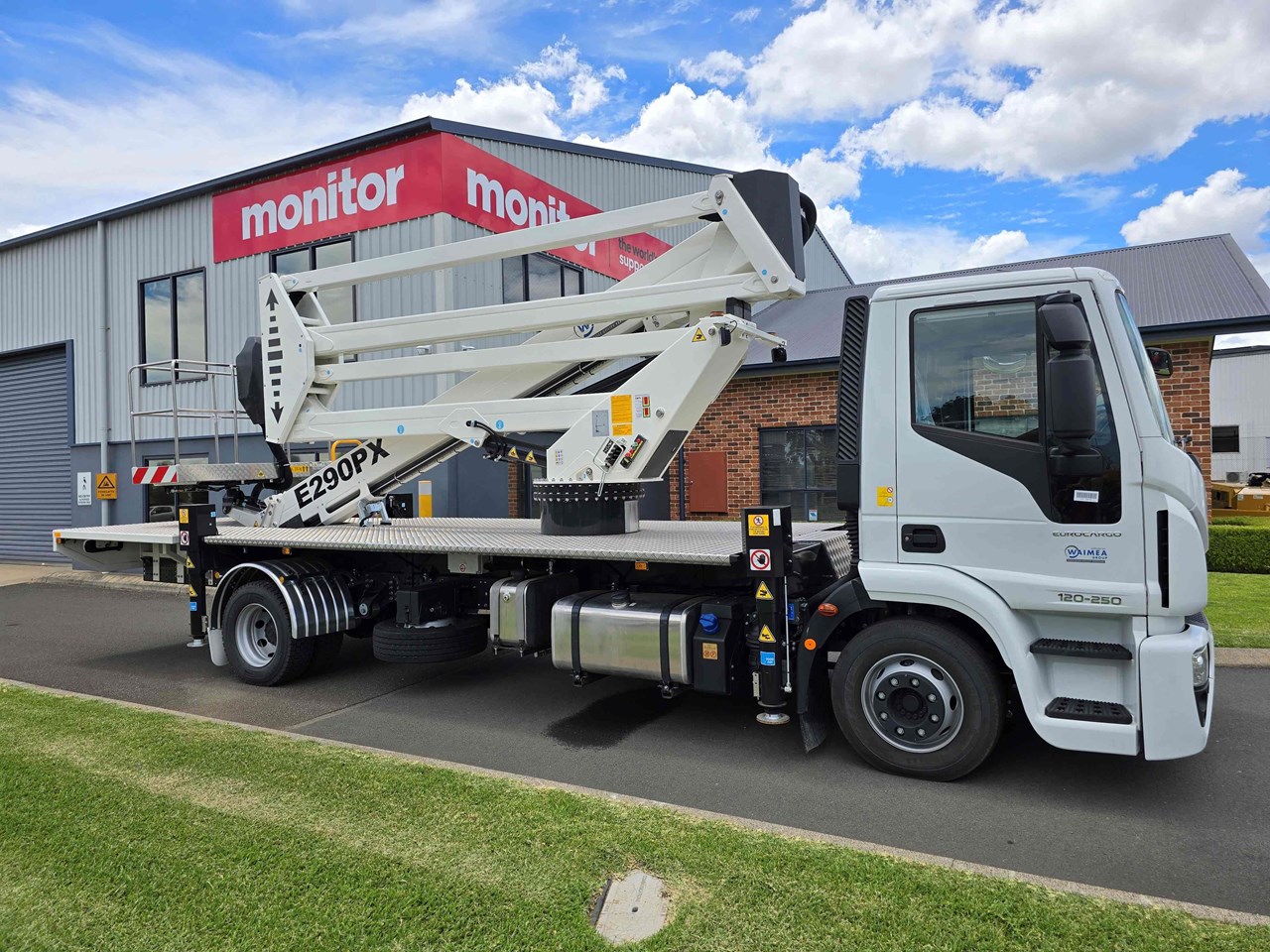

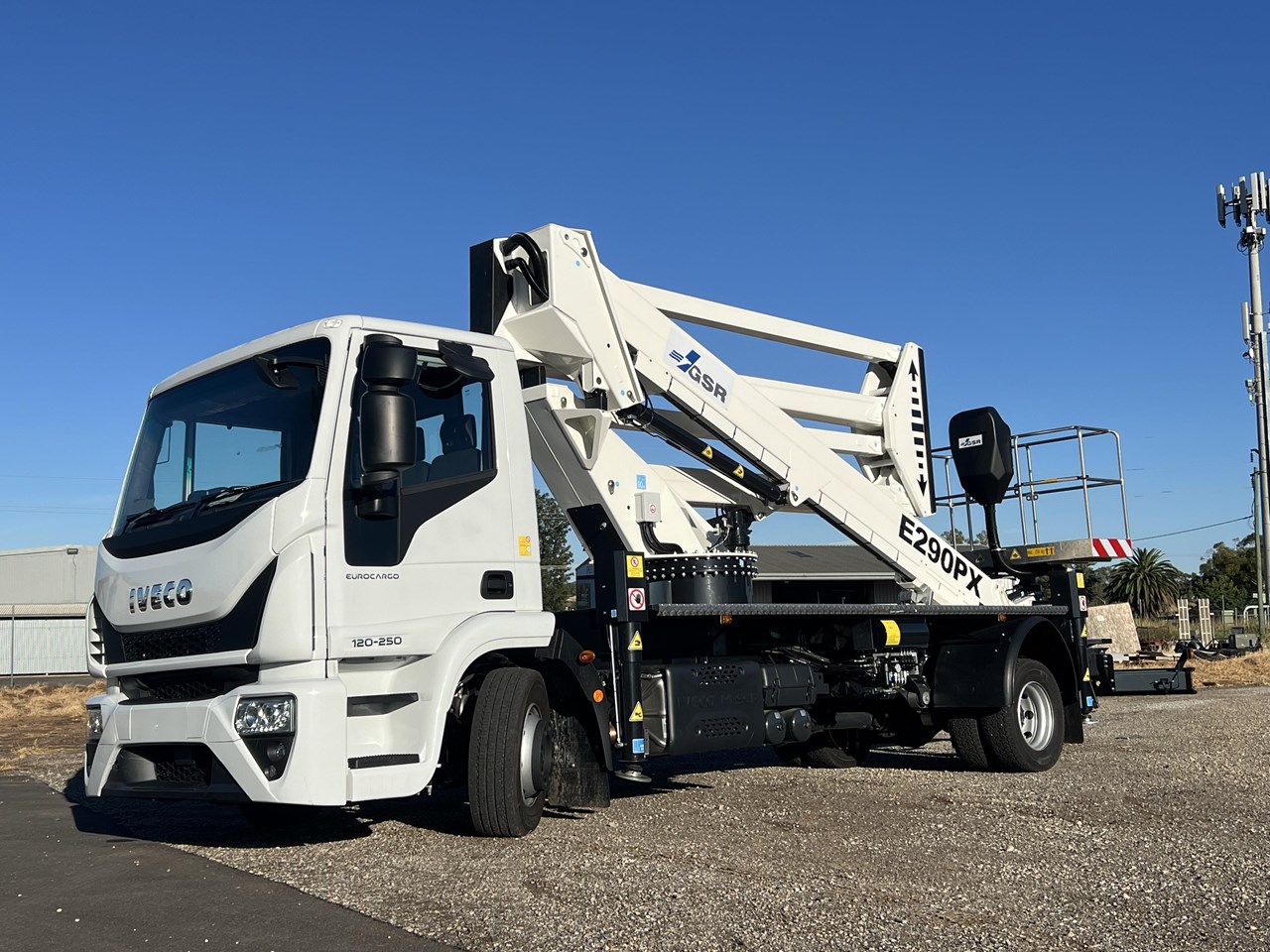

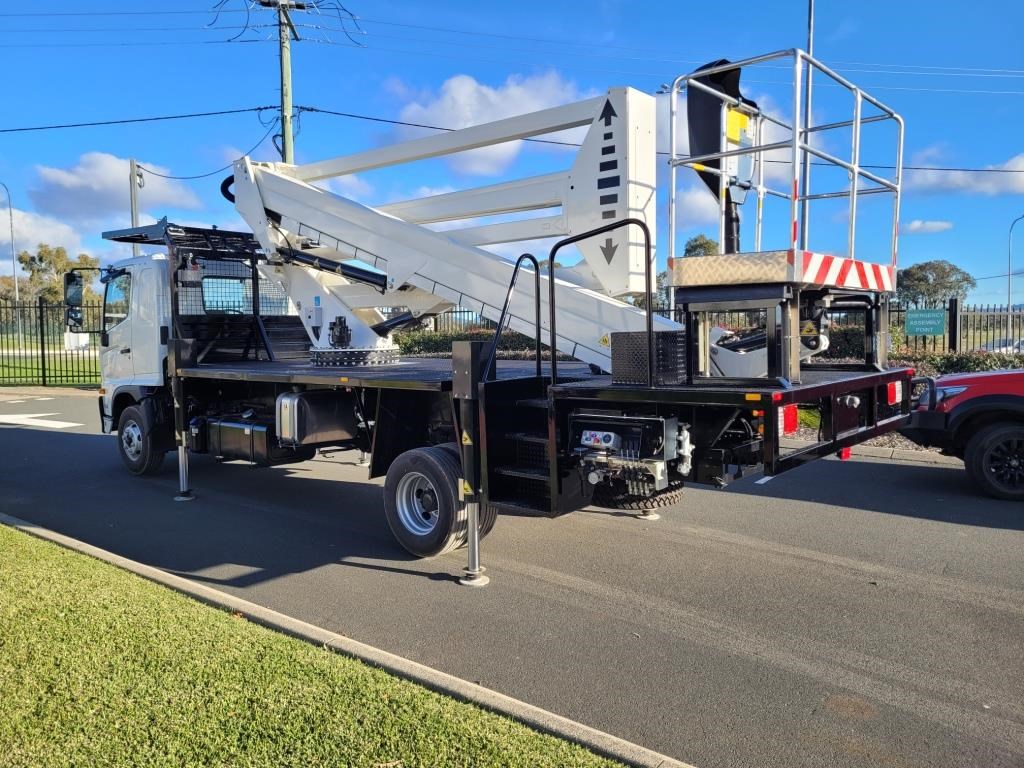

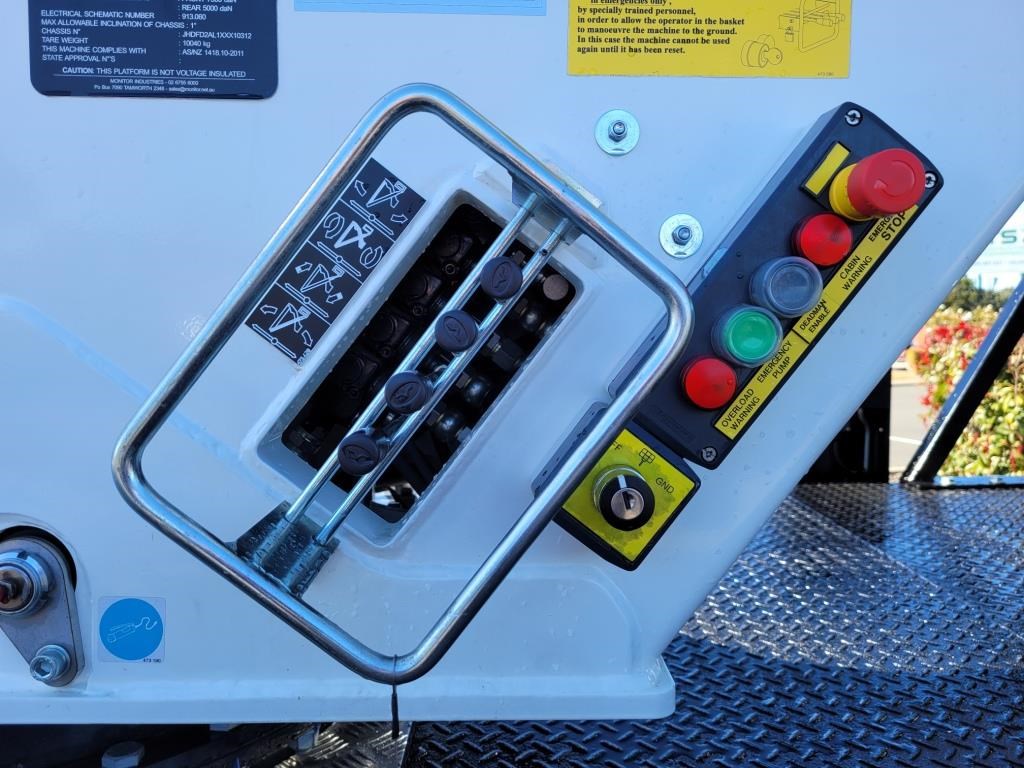

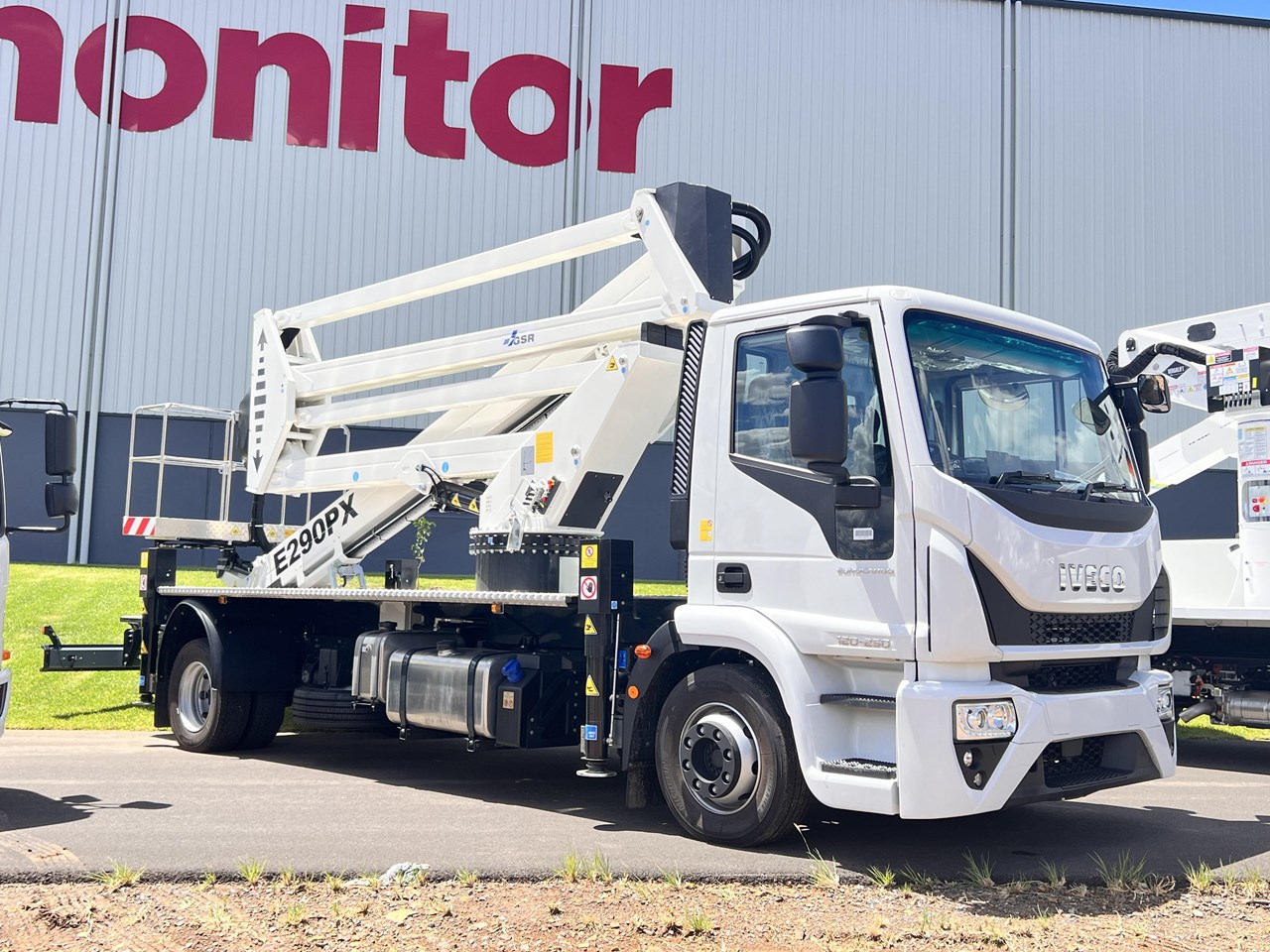

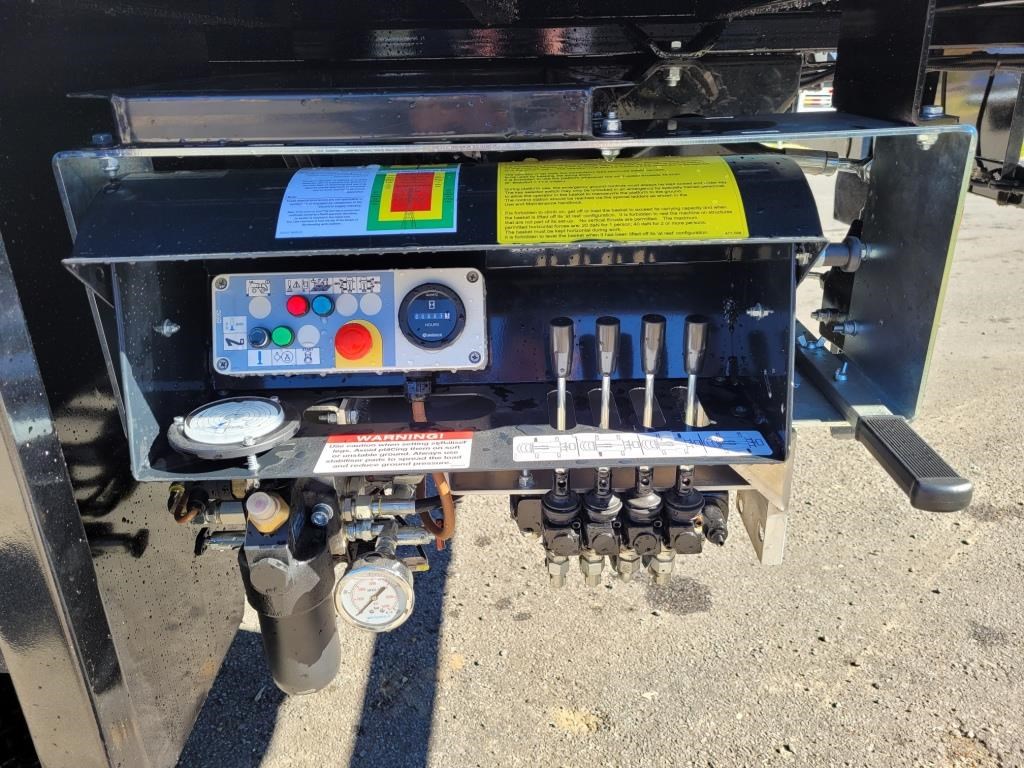

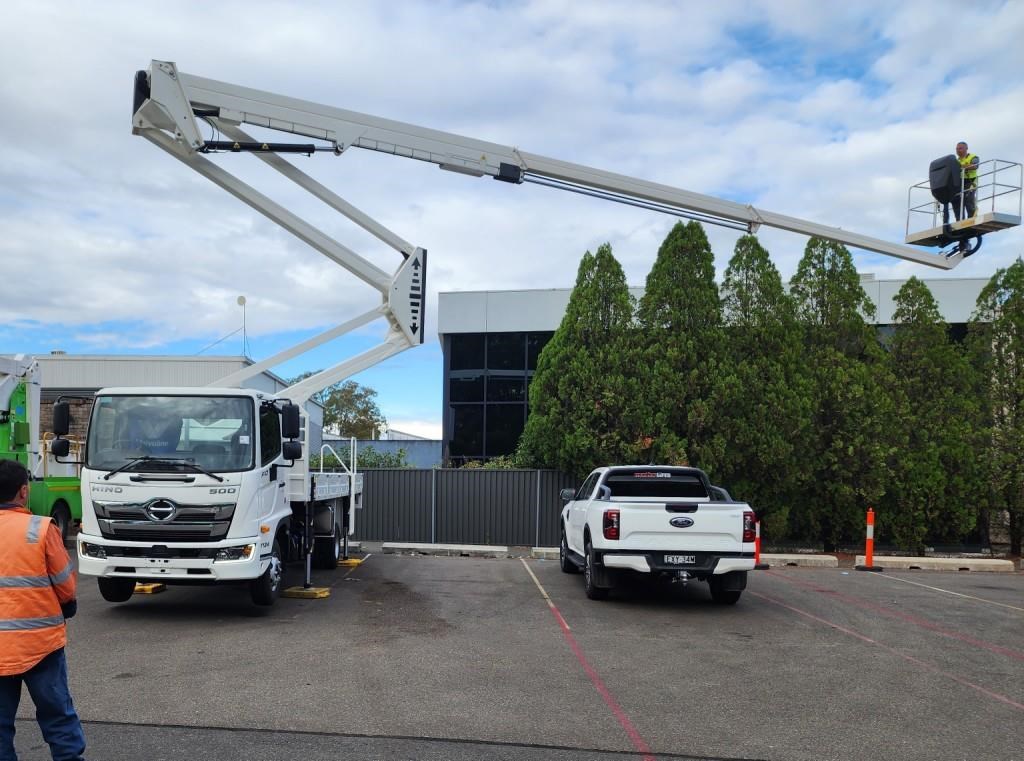

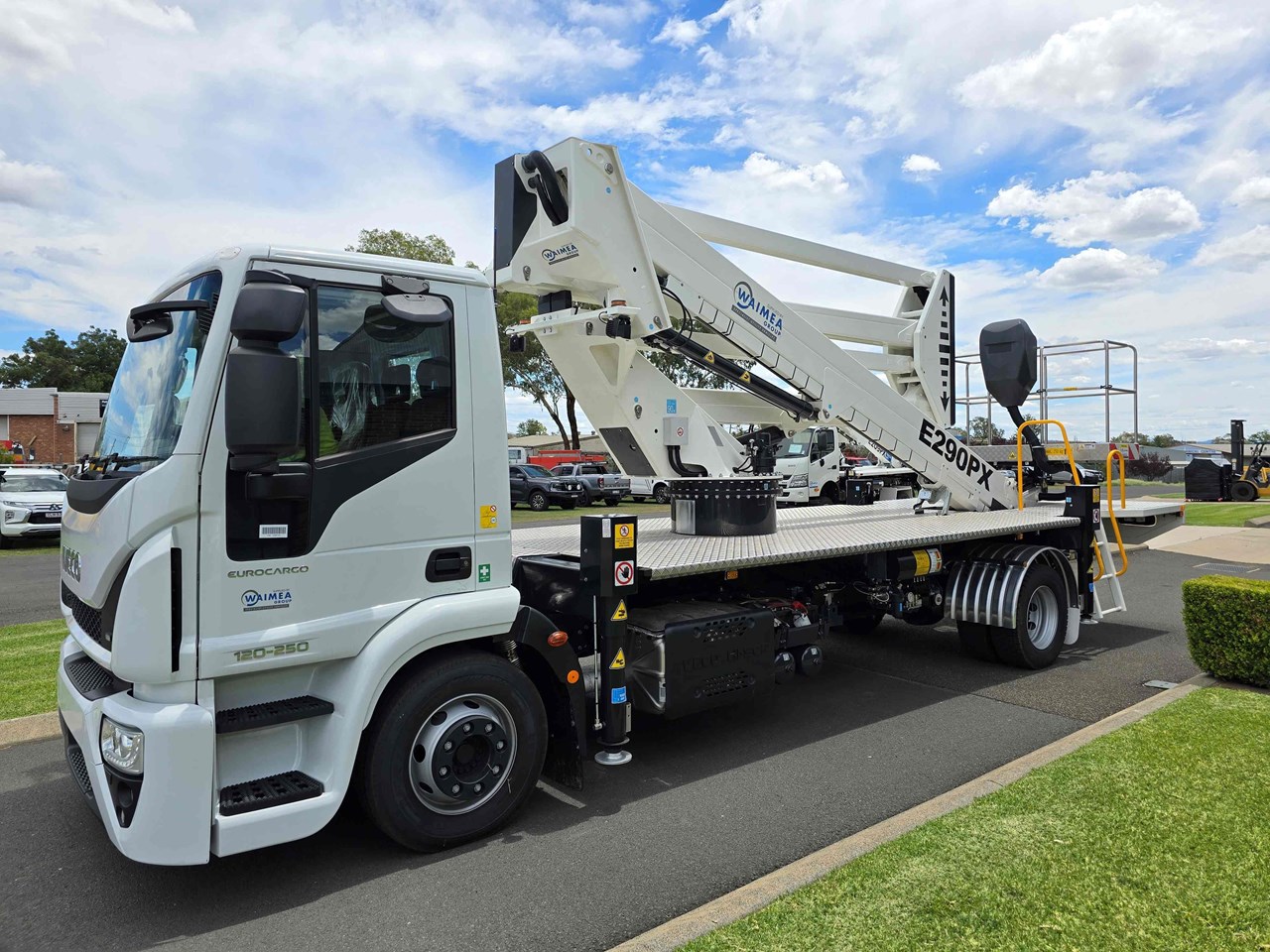

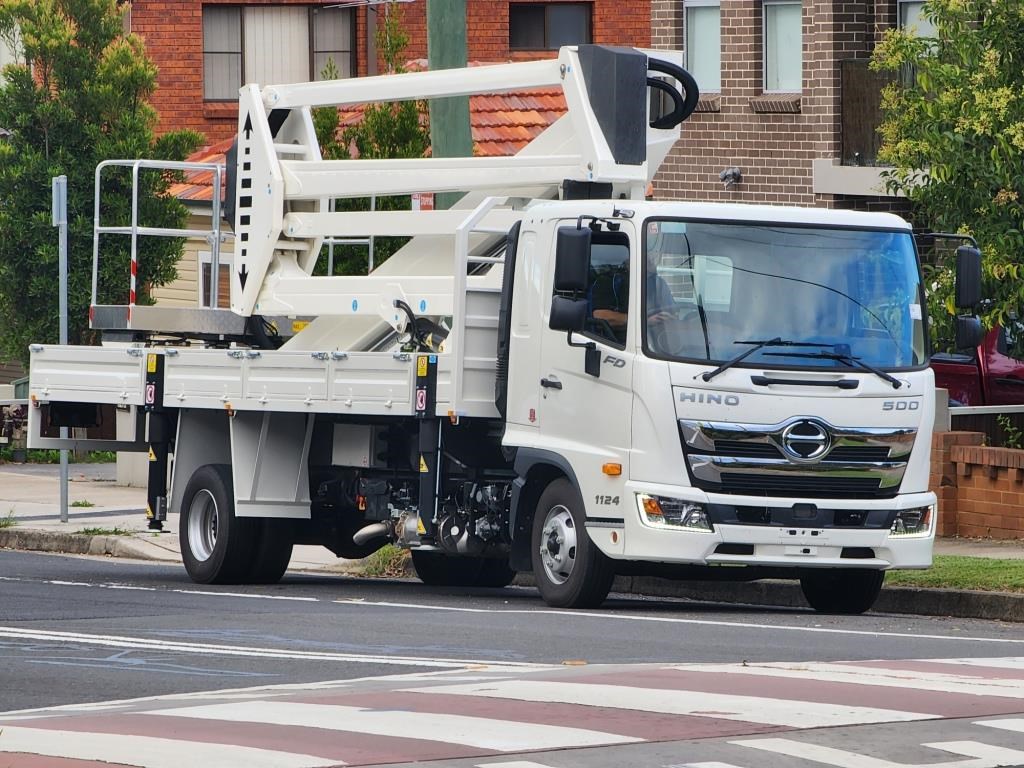

Monitor GSR E290PX - 29m Truck Mounted EWP | Ready for Immediate Delivery The Monitor E290PX is a versatile 28.7 m telescopic truck mounted machine. An agile unit with amazing outreach! The Monitor E290PX truck mounted lift is built to accommodate 2 persons and tools with a maximum rated capacity of 250 kg. It is also equipped with hydraulic controls for lift and stabilisation functions, providing for a very smooth operation and accuracy even at full height and outreach. The Monitor E290PX is great for applications where frequent set-ups are needed, in restricted locations with higher reach requirements. EWP Specifications EWP Manufacturer: GSR Model: E290PX Working Height: 28.7m Height (ground to bucket floor): 26.7m Working Radius: 15.6m Insulation: No Boom Style: Articulating/Telescopic Boom Slew: Rotation 450?? non continuous Bucket Rotation: 105?? Bucket Rotation: Powered Yes Bucket Capacity: MRC 250kg Bucket Dimensions: (LxWxH) 1800x700x1145 Control Type: Hydraulic Bucket Lift Slide: No Hydraulic Tool Port At Bucket: No PTO Flow (LPM): 900RPM 20 PTO Pressure (BAR): 190 Truck Specifications Model: Iveco ML120 Specifications: 4x2 HP: 260 Transmission: AMT Auto Trailer Weights & Dimensions: GVM (Kg): 12,000 Tare Weight: (kg) 9,920 Front axle max. (Kg) 4,480 Rear axle max. (Kg) 8,480 Kerb mass front axle (Kg) 4,050 Kerb mass rear axle (Kg) 5,870 Kerb mass total (Kg) 9,920 Payload max.(Kg) 2,080 Length (mm) 9,266 Wheelbase (mm) 5,175 Height (mm) 3,552 Width (mm) 2,500 BTE1-12 E290PX ON IVECO ML120 4X2
