HAFCO METALMASTER SG-820

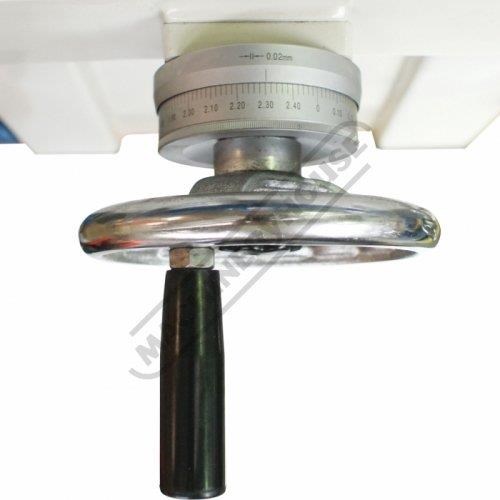

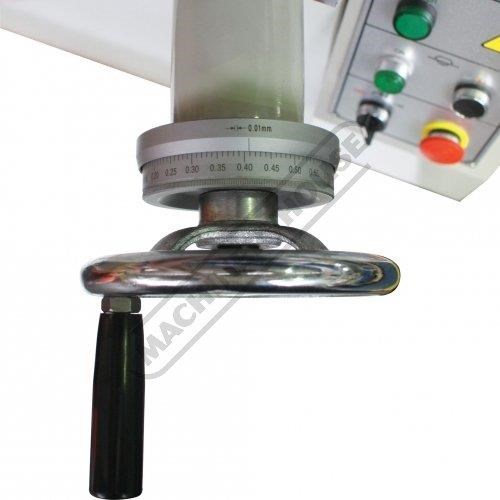

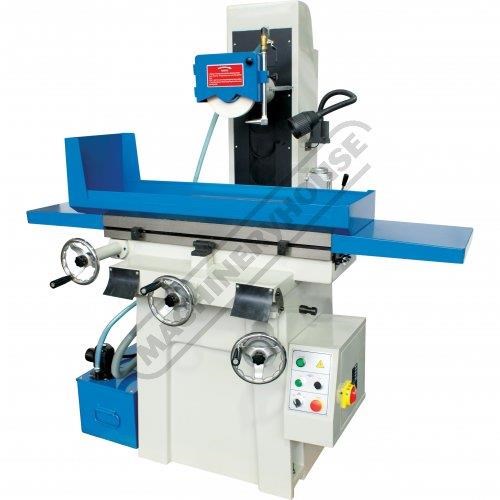

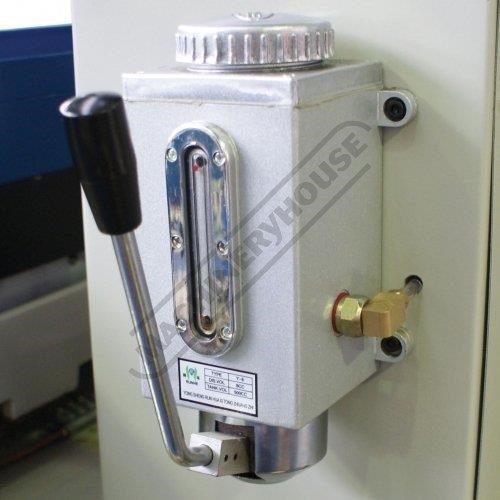

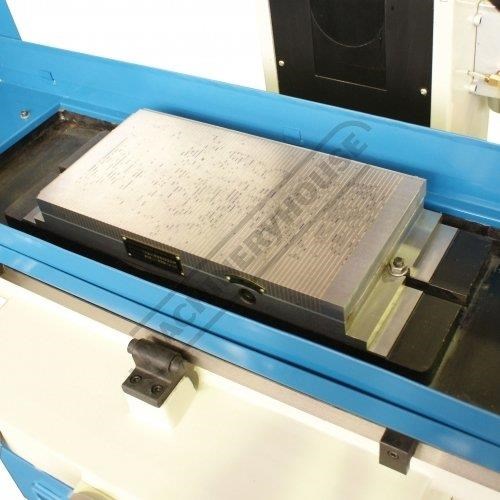

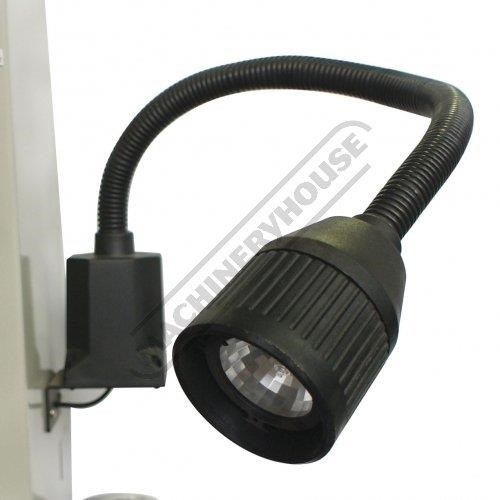

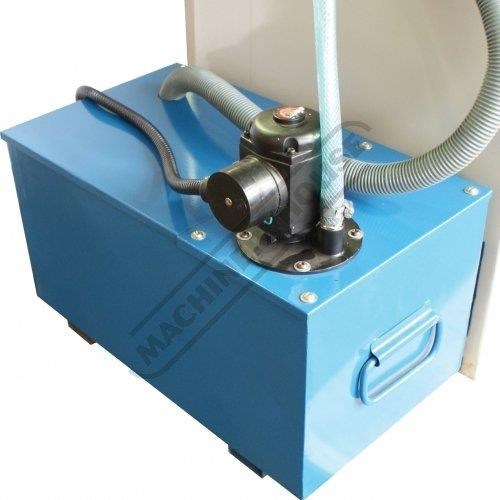

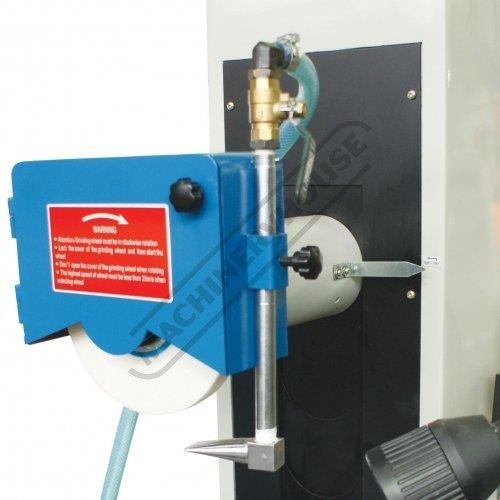

SG-820 Manual Surface Grinder 530 x 220mm Table Travel HAFCO-METALMASTER SG-820 Manual Surface Grinder 530 x 220mm Table Travel CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: G218 The SG-820 is an excellent surface grinder for grinding precision parts in hardened or annealed ferrous metals. It features heavy duty cast iron construction, quiet running precision spindle, ball bearing longitudinal slide, coolant system and more. Features: Quality castings and Precision Japanese P4 ball bearing supporting the spindle Coolant system with nozzle and flow control valve Cast iron machine body and stand for maximum rigidity and smooth operation Vertical dial graduations 0.01mm Cross travel graduations 0.02mm Manual one shot lubrication pump Wheel balancing stand and arbor 400 x 200mm Magnetic Chuck Diamond wheel dresser Halogen work light Specifications: ORDER CODE: G218 MODEL: SG-820 AD5 Controller: ~ Magnetic Chuck Size (mm): 400 x 200 Longitudinal Table Traverse - Maximum (mm): 530 Cross Table Traverse - Maximum (mm): 220 Table Bed Size (mm): 480 x 200 Spindle To Table - Maximum (mm): 490 Wheel Diameter (mm): 200 Vertical Increment Graduations (mm): 0.01 Vertical Graduations Per Revolution (mm/rev): 1.25 Cross Increment Graduations (mm): 0.02 Cross Graduations Per Revolution (mm/rev): 2.5 Spindle Motor (kW / hp): 1.1 / 1.5 Voltage / Amperage (V / amp): 415 Nett Weight (kg): 800 To Purchase Online Please Visit The Machineryhouse Website & Search For 'G218' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
