HYDRAPOWER 92AC600/25-01

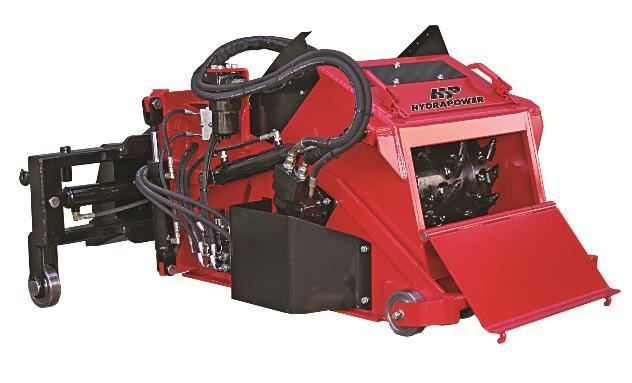

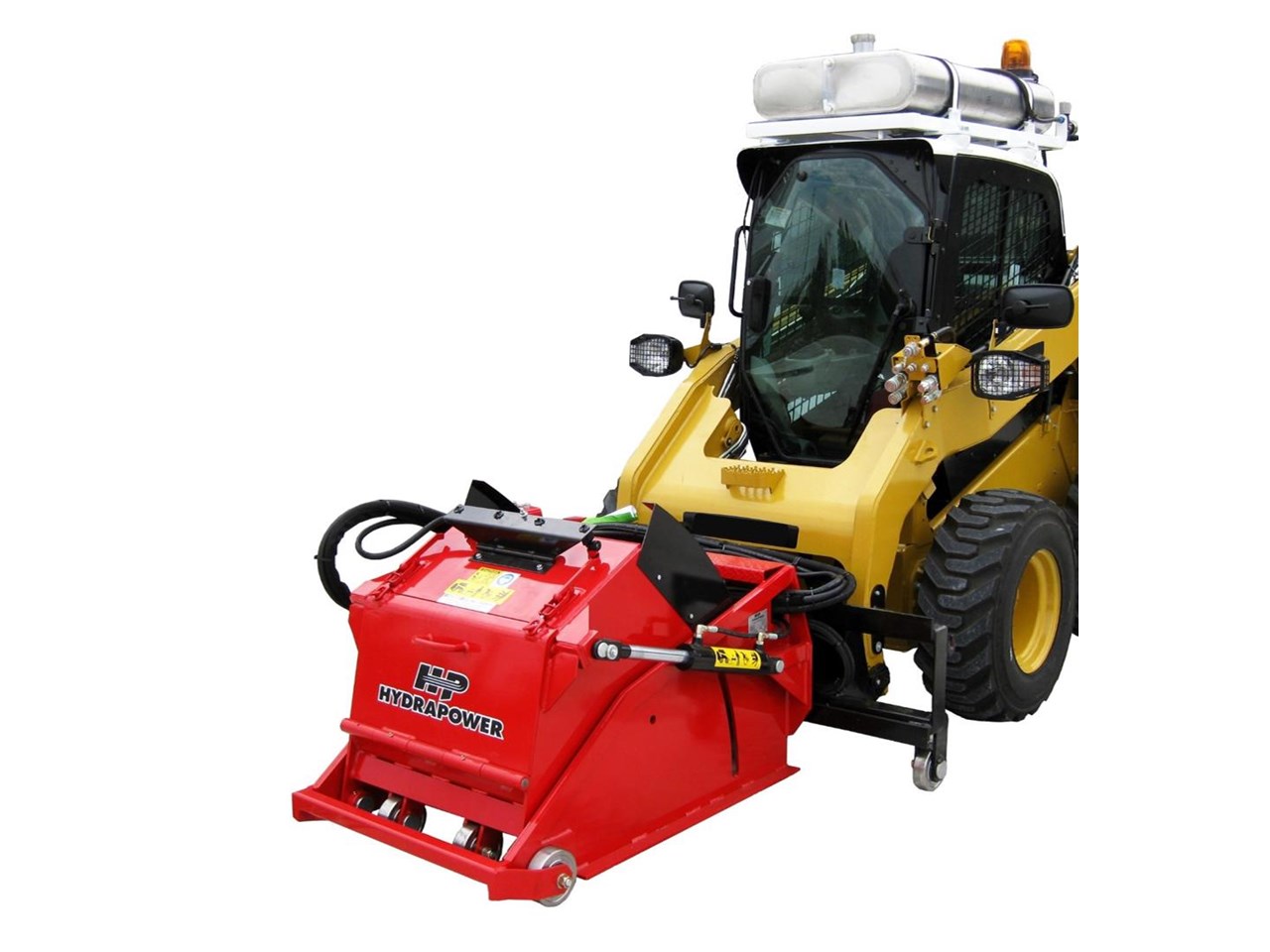

BUILT FOR STRENGTH AND STAMINA Road Profiler / Cold Planer / Stabiliser 600mm wide x 250mm deep Profilers and stabilisers are arguably the one piece of ground working equipment that takes the most punishment. These machines are designed to virtually tear up the road and that is exactly what our high-quality attachments do. Our durable range is suitable for a range of skid steer applications and is manufactured to the very highest specifications. This state-of-the-art AC Profiler has a working depth of up to 250mm. The drum housing is fully enclosed so that milled debris is contained at all depths. The AC Profiler / Stabiliser has easy access to picks for cleaning and has optional stabiliser drum and water tank attachments. AC PROFILER/STABILISER Host Machine Size - High-Flow Skid Steer (Wheeled or Tracked) Primary Task - Repairing Road Failures and/or Road Stabilising Hydraulic Power Requirements for Hot mix Milling - 600 x 250mm, 50kw Side Shift - Hydraulic, Centre to Left Depth Control - Hydraulic ??? infinitely variable Drive Mechanism - Hydraulic motor via a planetary reduction gearbox fitted with a duo-cone seal Number of Cutting Picks - 600 x 200mm ??? 74 Picks Hydraulic Flow Required - 100???170lpm Hydraulic Pressure Required - 206???345bar Tilt - Hydraulic Tilt Angle (left or right) 450mm ??? 10?? Water Tank Option Available? Yes Comments: For single system loaders extra valving is required on attachment which will incur an additional charge.
