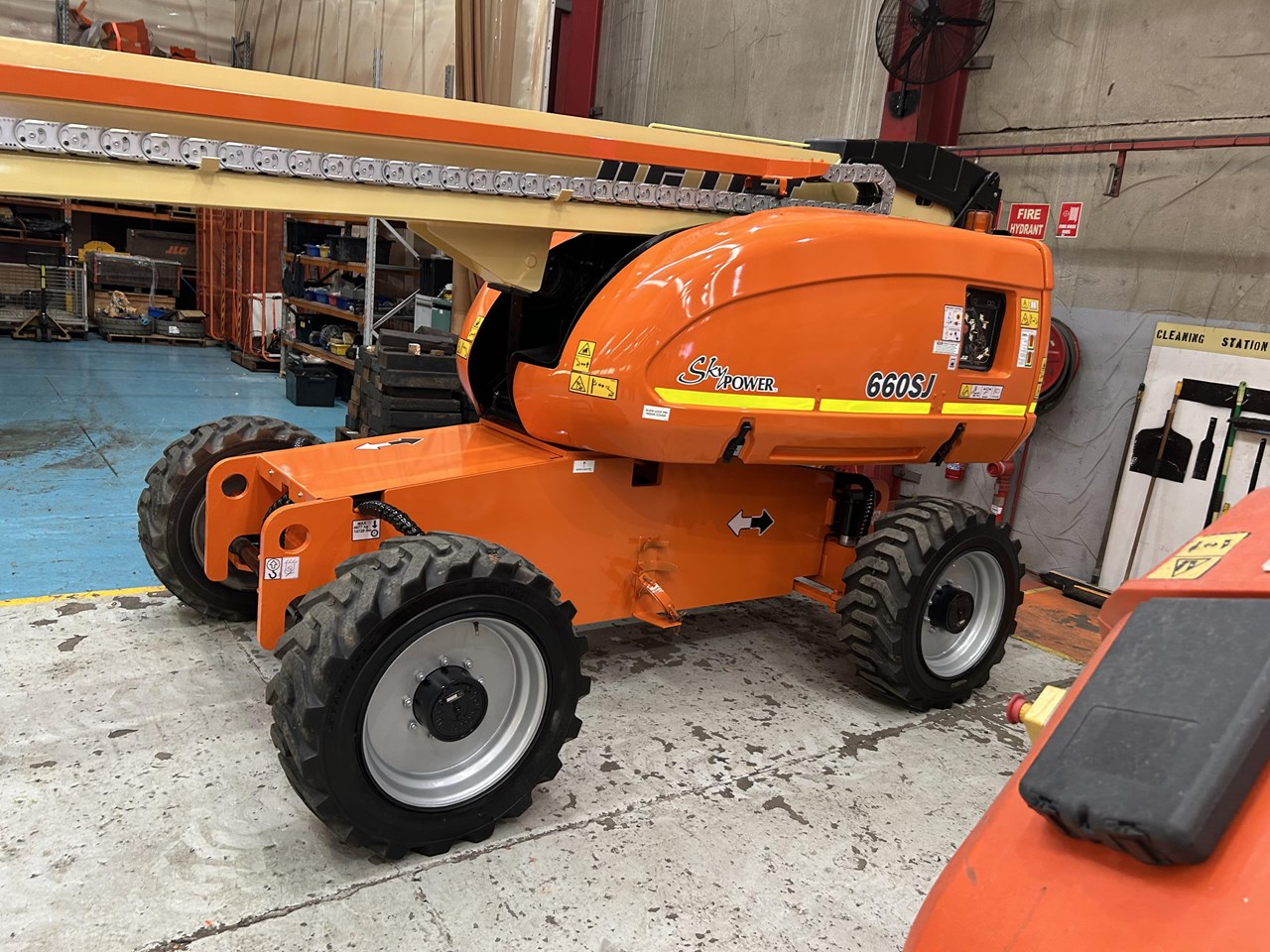

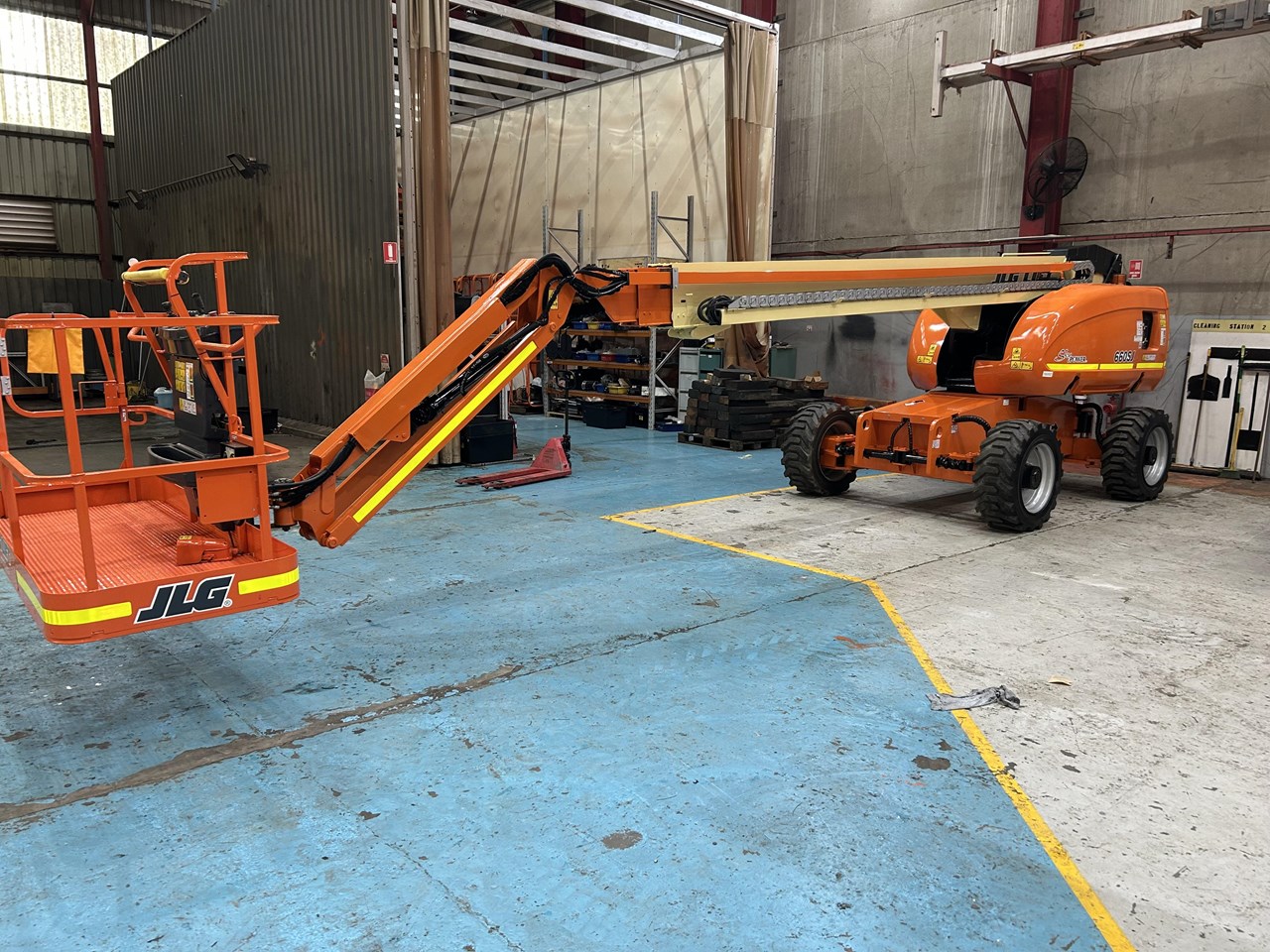

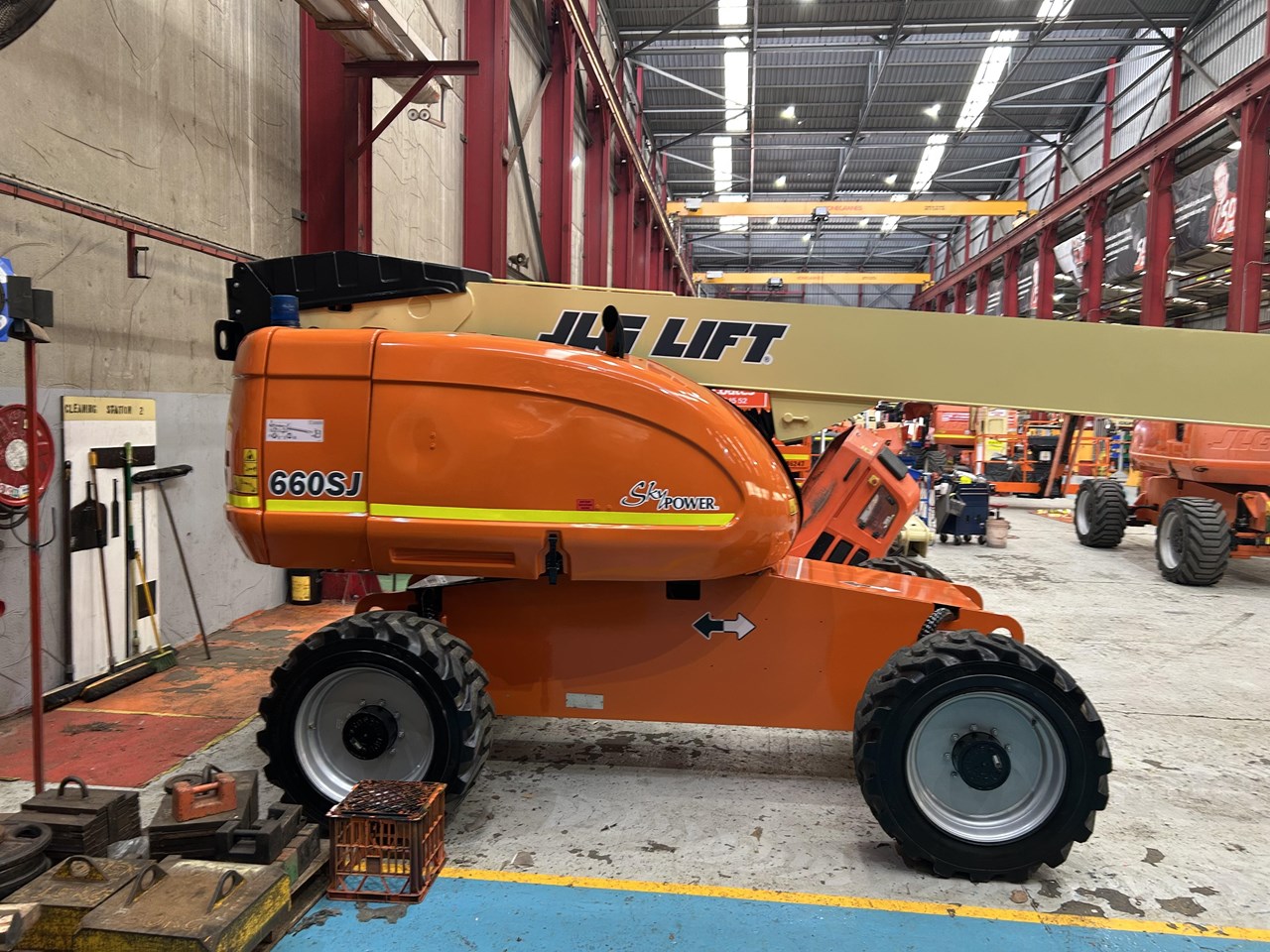

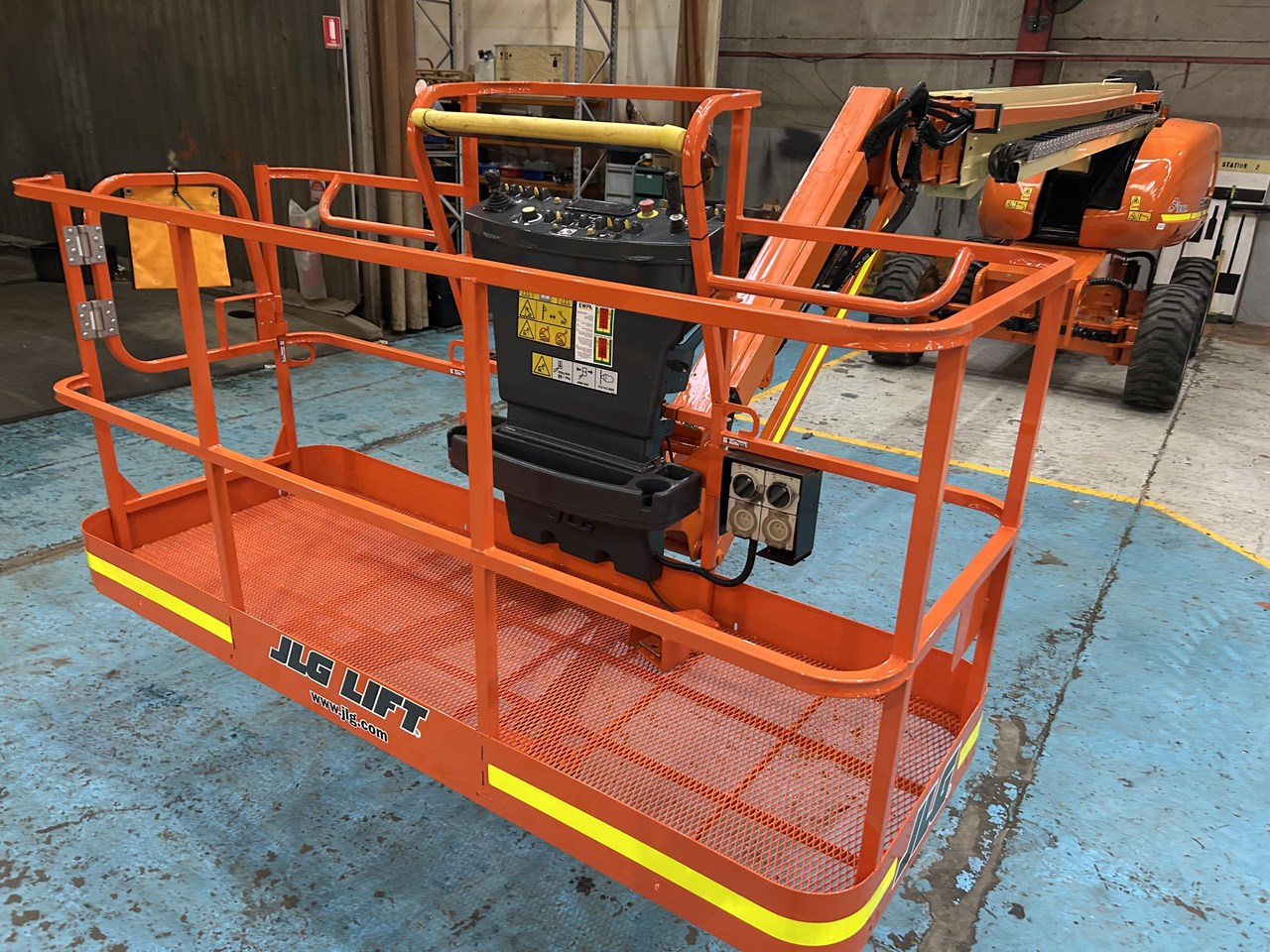

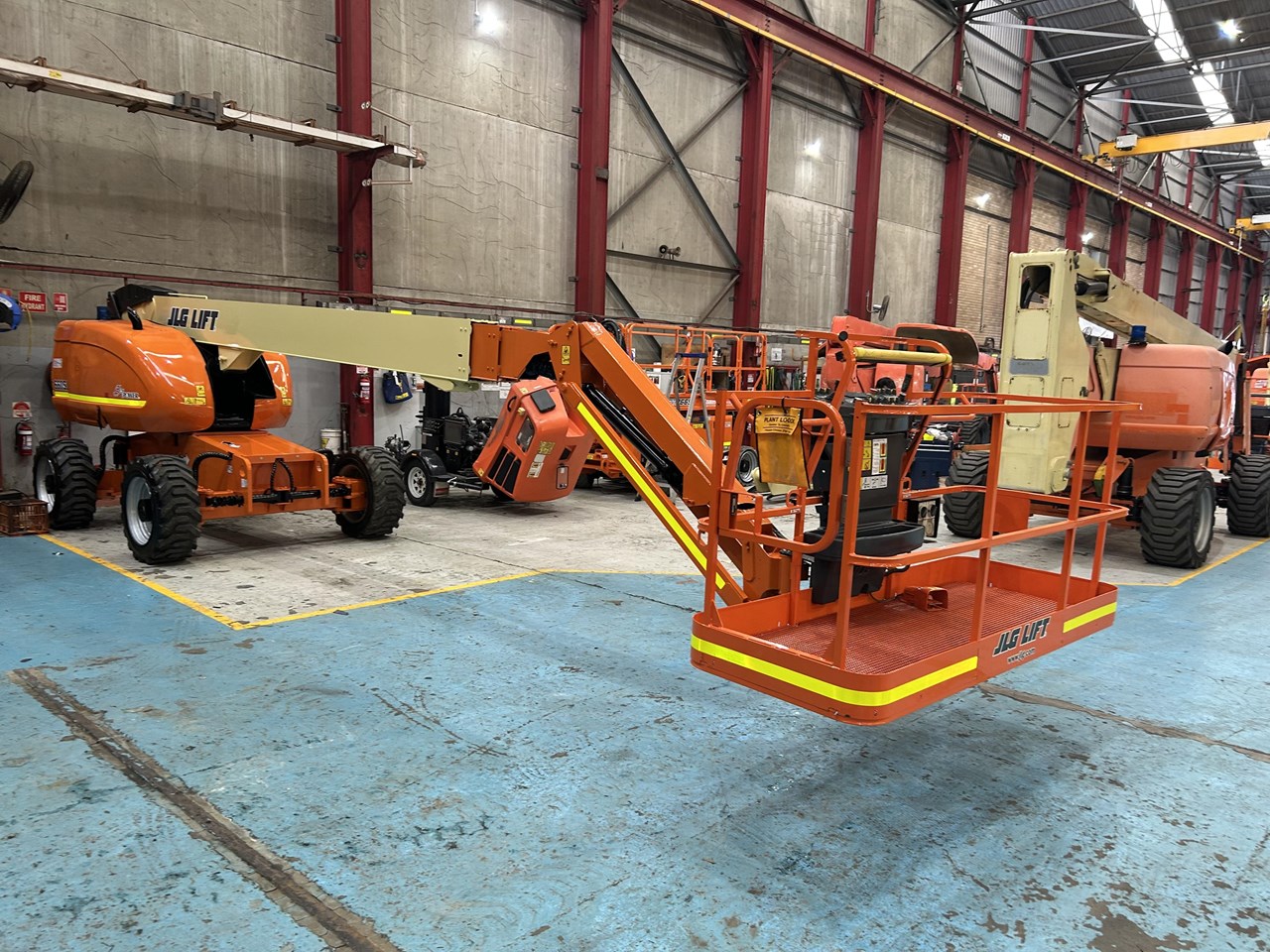

JLG 660SJ

66ft JLG Stick Boom Lift 10-year recertified and painted

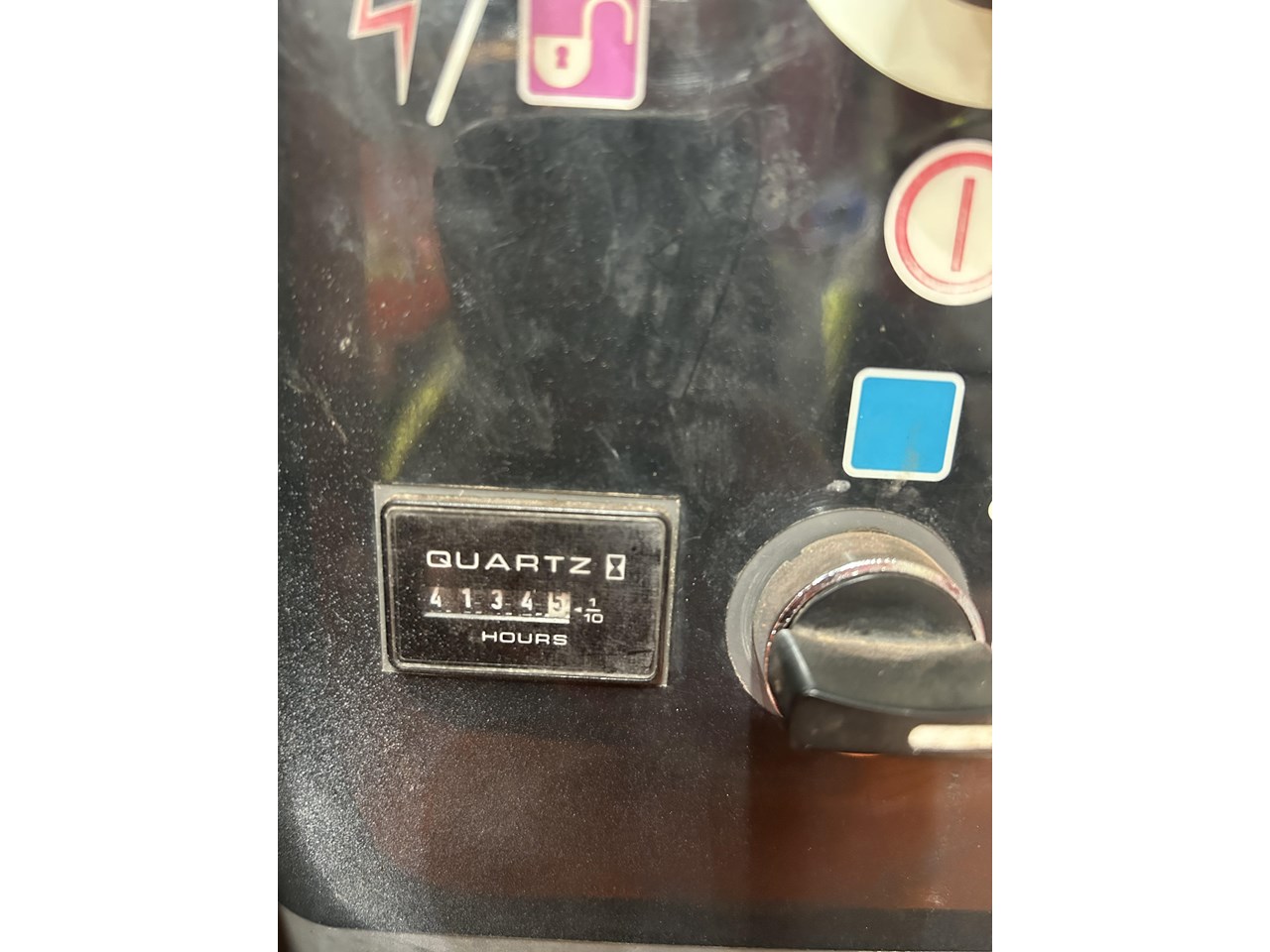

Hours 4134

10 year inspected and repainted April 2025
Compliant for 5 years from resale date.

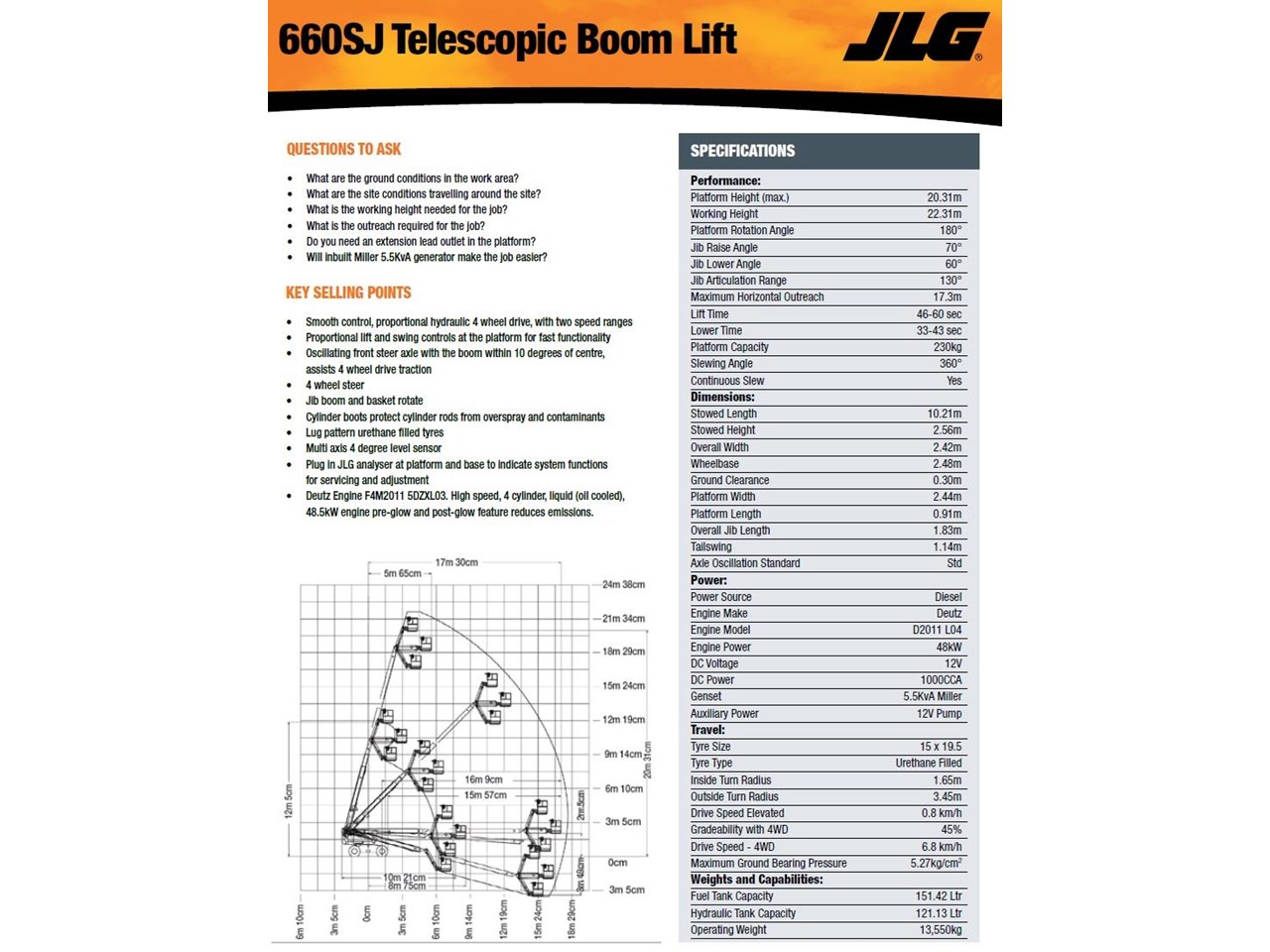

Performance:

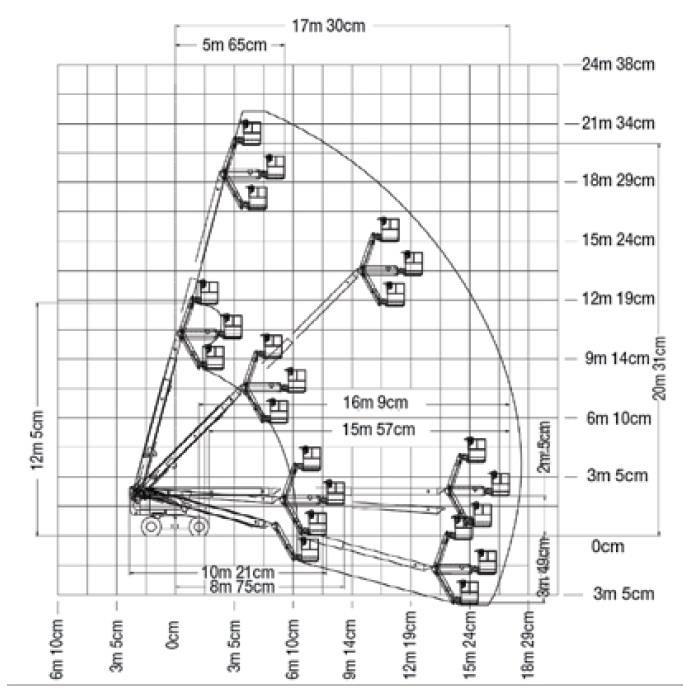

Platform Height (max.) 20.31m
Working Height 22.31m
Platform Rotation Angle 180°
Jib Raise Angle 70°
Jib Lower Angle 60°
Jib Articulation Range 130°
Maximum Horizontal Outreach 17.3m
Platform Capacity 230kg
Slewing Angle 360°
Continuous Slew Yes

Dimensions:
Stowed Length 10.21m
Stowed Height 2.56m
Overall Width 2.42m
Wheelbase 2.48m
Ground Clearance 0.30m
Platform Width 2.44m
Platform Length 0.91m
Overall Jib Length 1.83m
Tailswing 1.14m
Axle Oscillation Standard Std

Travel:
Tyre Size 15 x 19.5
Tyre Type Urethane Filled
Inside Turn Radius 1.65m
Outside Turn Radius 3.45m
Drive Speed Elevated 0.8 km/h
Gradeability with 4WD 45%
Drive Speed - 4WD 6.8 km/h

Weights and Capabilities:

Operating Weight 13,550kg
