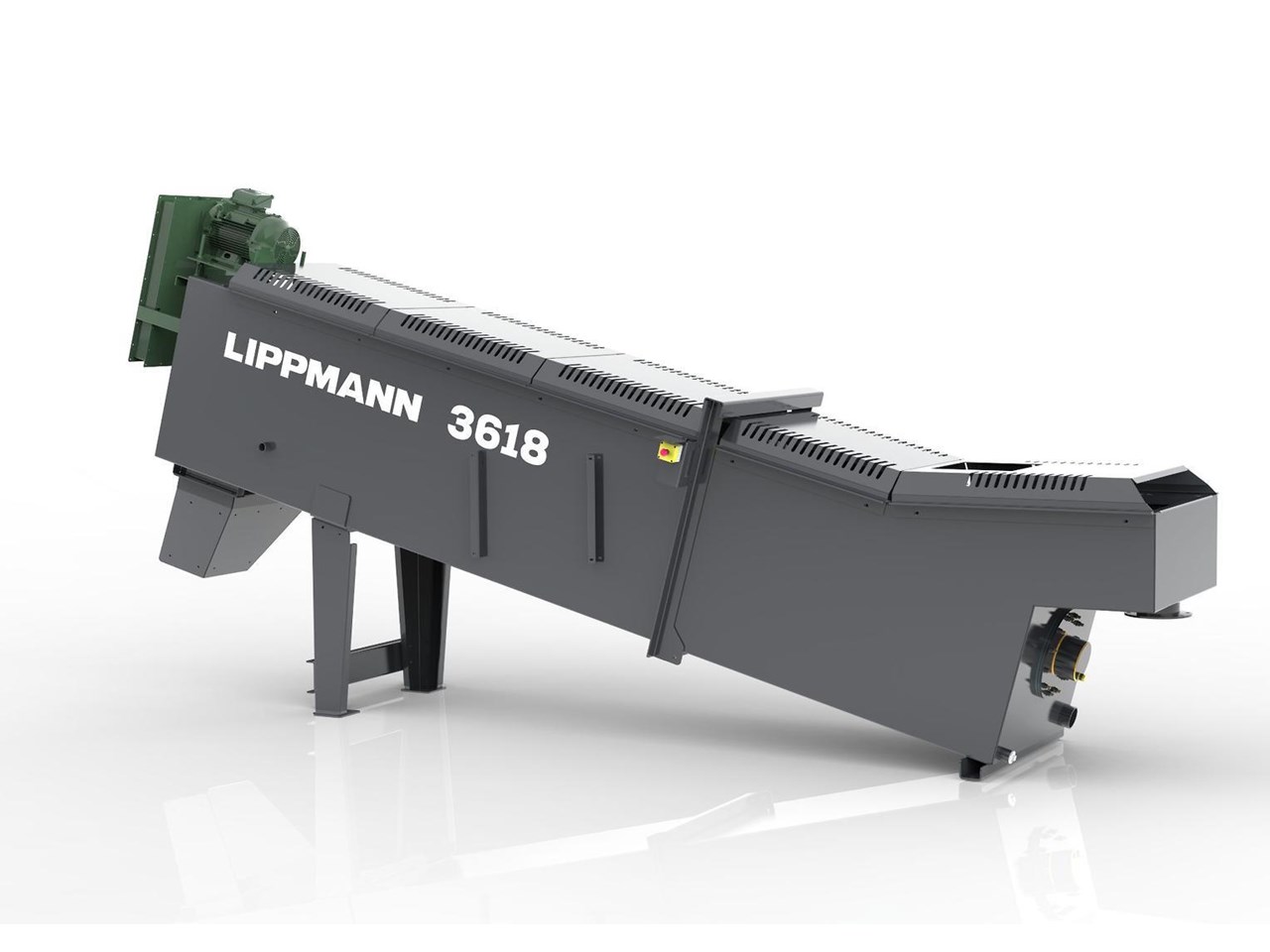

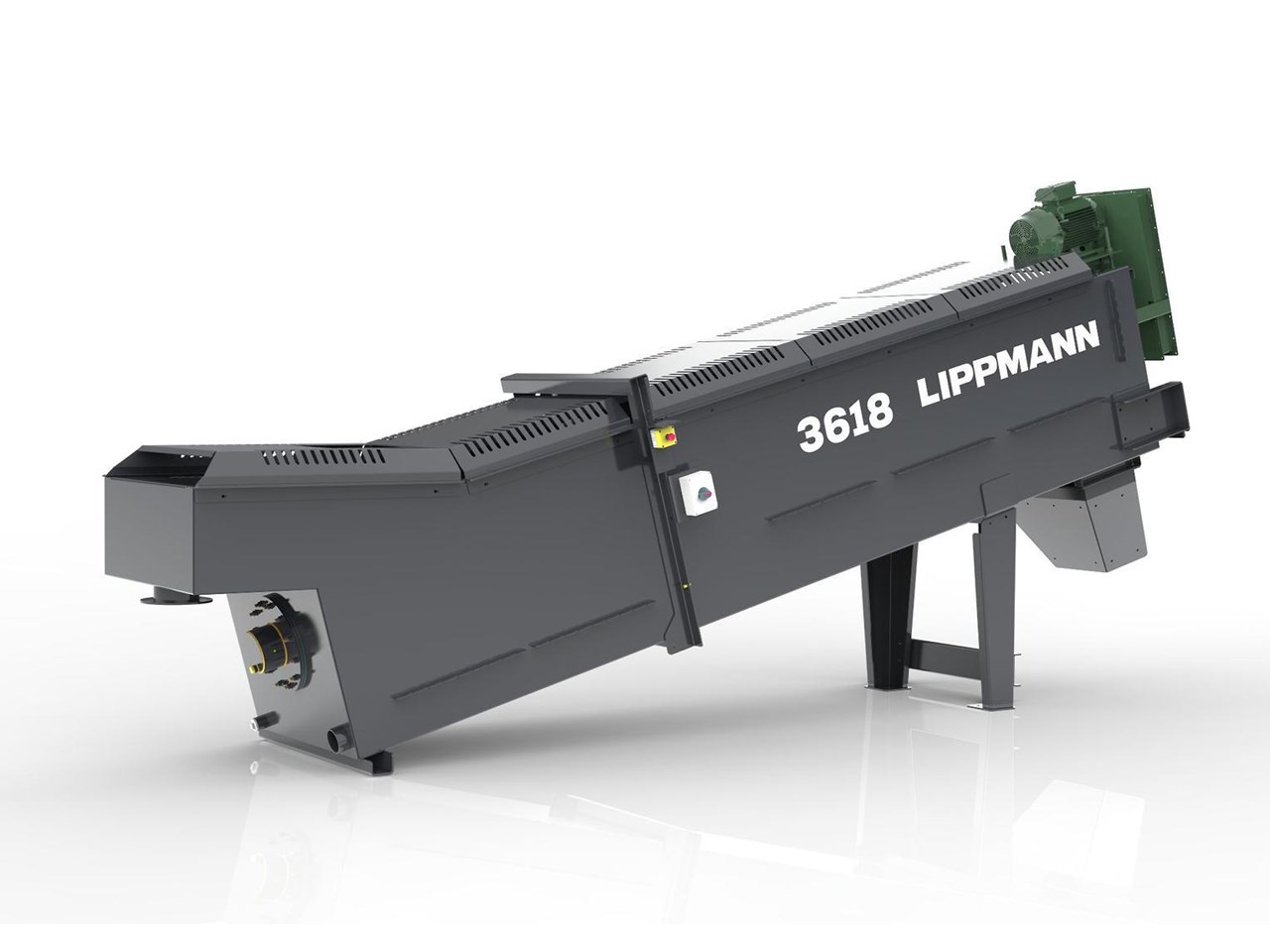

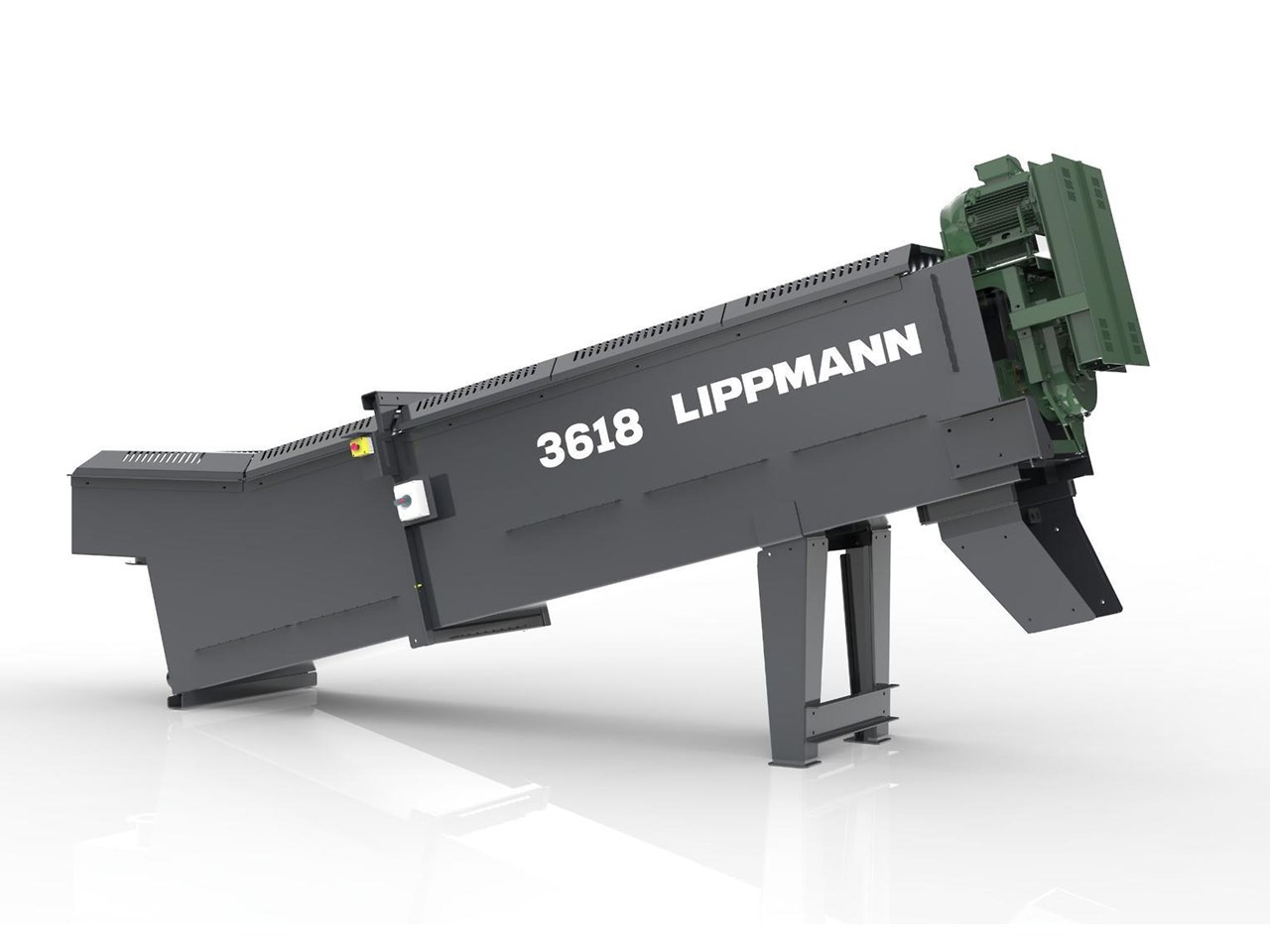

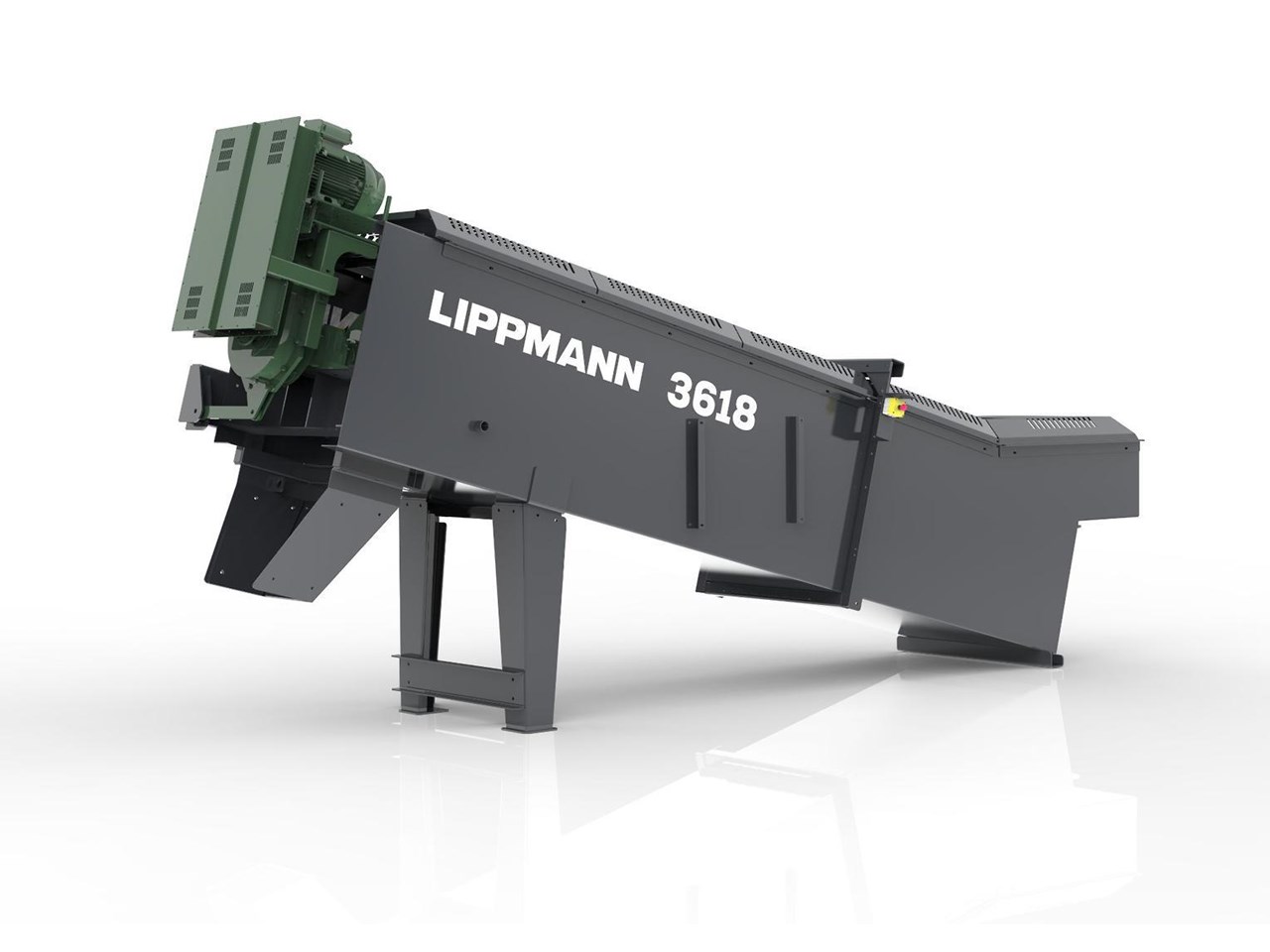

LIPPMANN 3618 COARSE MATERIAL WASHER

Sale Price: POA

Call now: 02 8279 7105

Phone

Contact Seller

Phone: 02 8279 7105

Email Advertiser:

Name

Phone

Email Address

Has this sold ?

Can I arrange a viewing ?

Your Message

Remember my details

Subscribe to future communications

For security reasons, do not select "Remember my details" if you are using a shared computer.

View our privacy policy, collection notice and terms and conditions to understand how we use your personal information.

Dealer

TRICON MINING EQUIPMENT PTY LTD

11 Lucca Road

Wyong, NSW

Visit website

Features

Title	LIPPMANN 3618 COARSE MATERIAL WASHER
Type	Screening and Crushing
Sub Type	Screening - Crushing
Class	Trommel Screens
Make	LIPPMANN
Model	3618 COARSE MATERIAL WASHER
Sale Price	POA
Listing Type	New
Stock Number	190424_1
RefCode	TA1281189

Description

Ideal for natural and recycled aggregate applications, the washer provides a scrubbing action to release soluble clays, soils and organic matter.

FEATURES
- 36" x 18 ft single screw.
- Overflow flume with adjustable weir.
- Lined material discharge chute.
- Heavy duty construction hull.
- Spiral flights and blade style shaft.
- Replaceable screw shoe liners and paddles.
- Multi-sealed lower outboard bearing housing assembly.
- Heavy duty gearbox.
- Fully guarded belt drive system
- Containerized transport.

SPECIFICATIONS
Feed Size: 10mm-65mm
Max Feed Capacity: 150 mtph
Water Requirement: 90 - 130 m3/h
Unloaded Weight: 4800 kg
Loaded Working Weight: 12800 kg
Shaft Speed: 32 rpm Electric Drive
