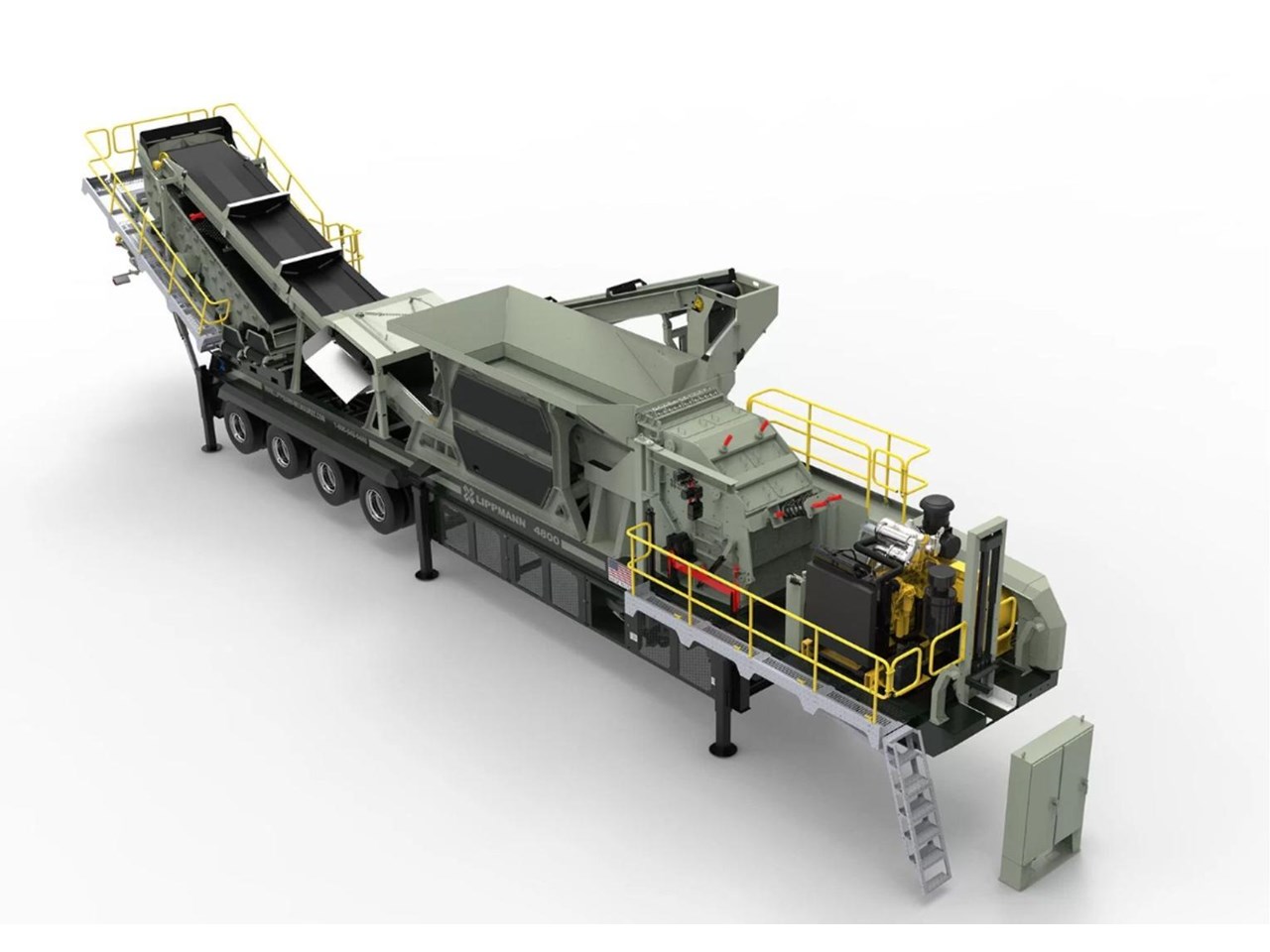

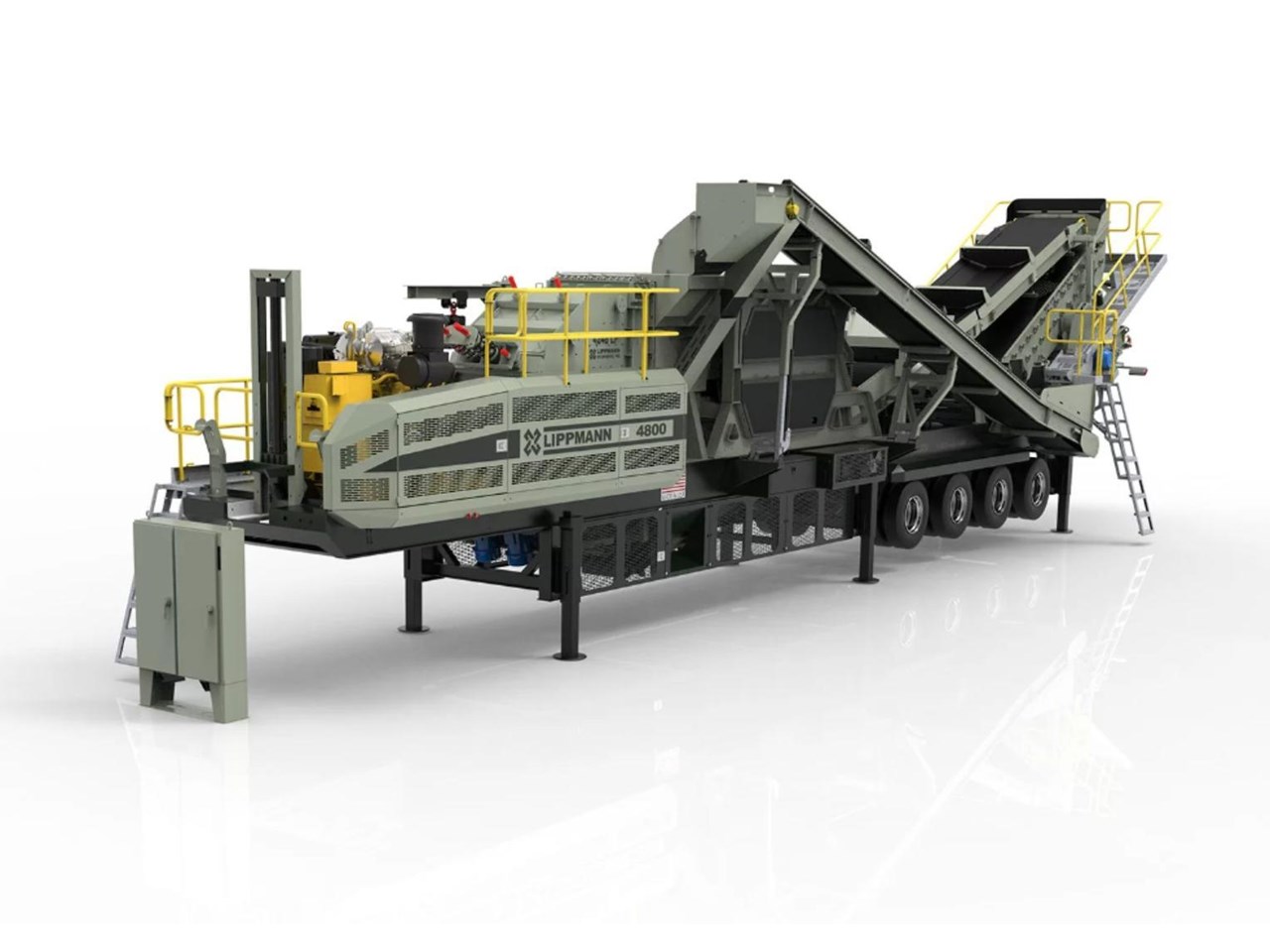

LIPPMANN 4800R CLOSED CIRCUIT IMPACTOR PLANT

The 4800r is a self-contained and closed-circuit plant that was developed for quick jobs. The rear discharge conveyor on this plant is ideal for the recycling industry because it allows the material to flow naturally through the impactor and then onto a pan feeder and gently introduced into the conveyor belt.

The cross belt magnet will help eliminate steel and any other material that might be present. The 6'x14' screen is properly sized to optimize this plant's true potential.

FEATURES
- Andreas type impact crusher design
- Highly cubical product
- High ratio of reduction
- No weld build-up required
- One gravity and one spring loaded curtain with optional third grinding curtain
- Hammers have four crushing positions to maintain a more consistent gradation and greater top size control
- Inspection doors on side of machine

SPECIFICATIONS

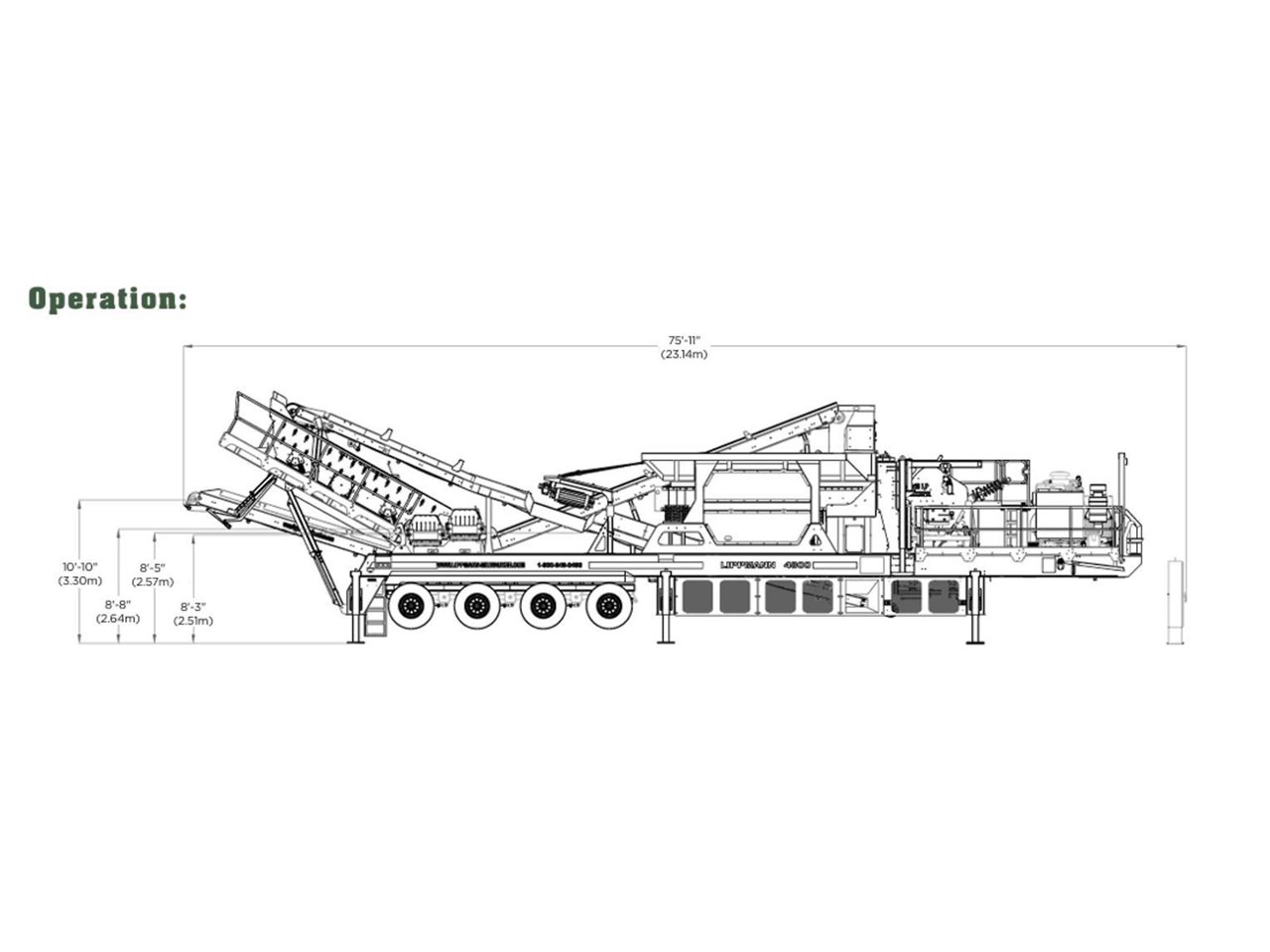

Operating Length: 23.14m
Impactor: 1067 x 1219mm

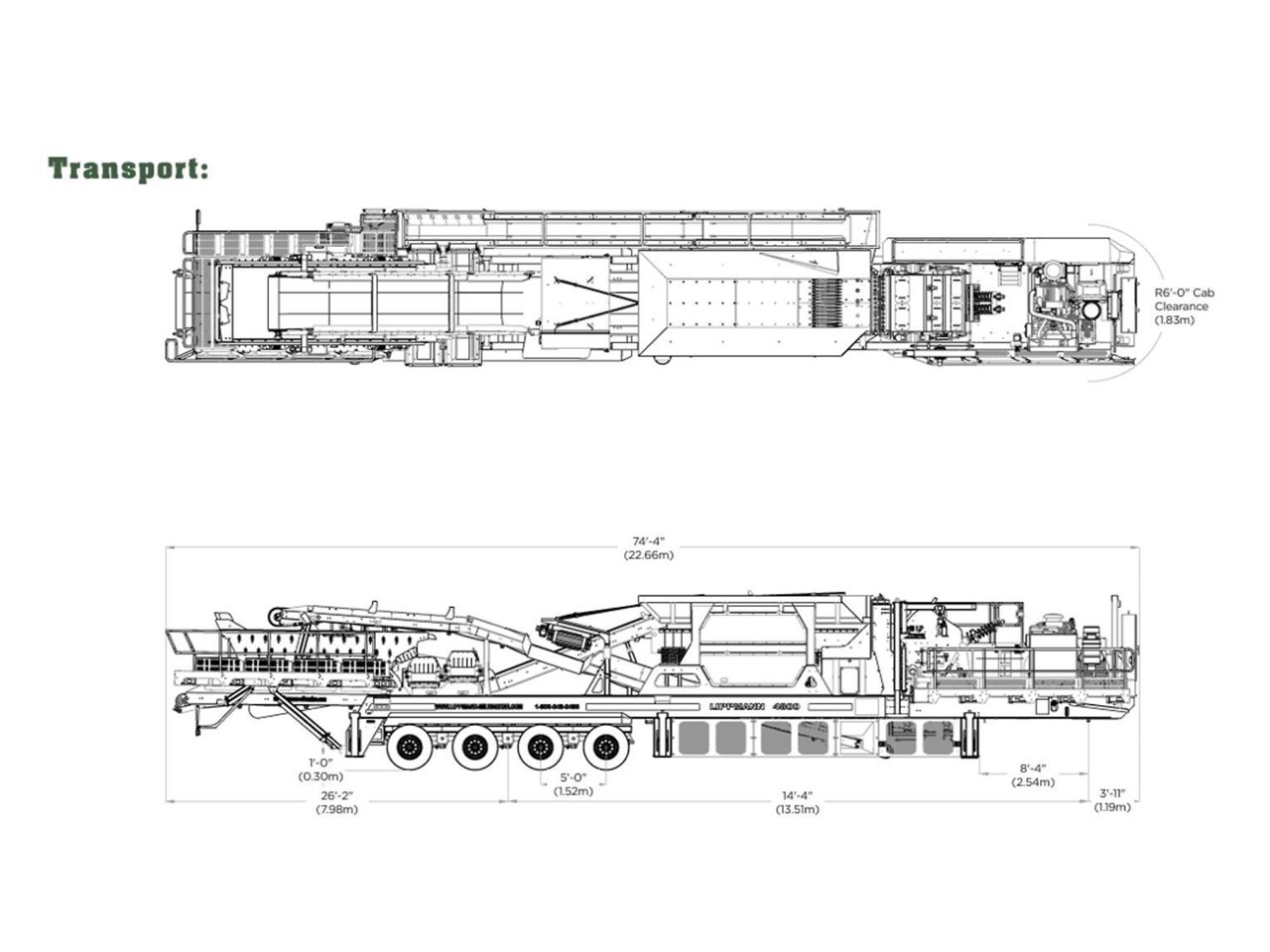

Transportation - Rear Axle 36,770kg
Transportation - King Pin 20,999kg
