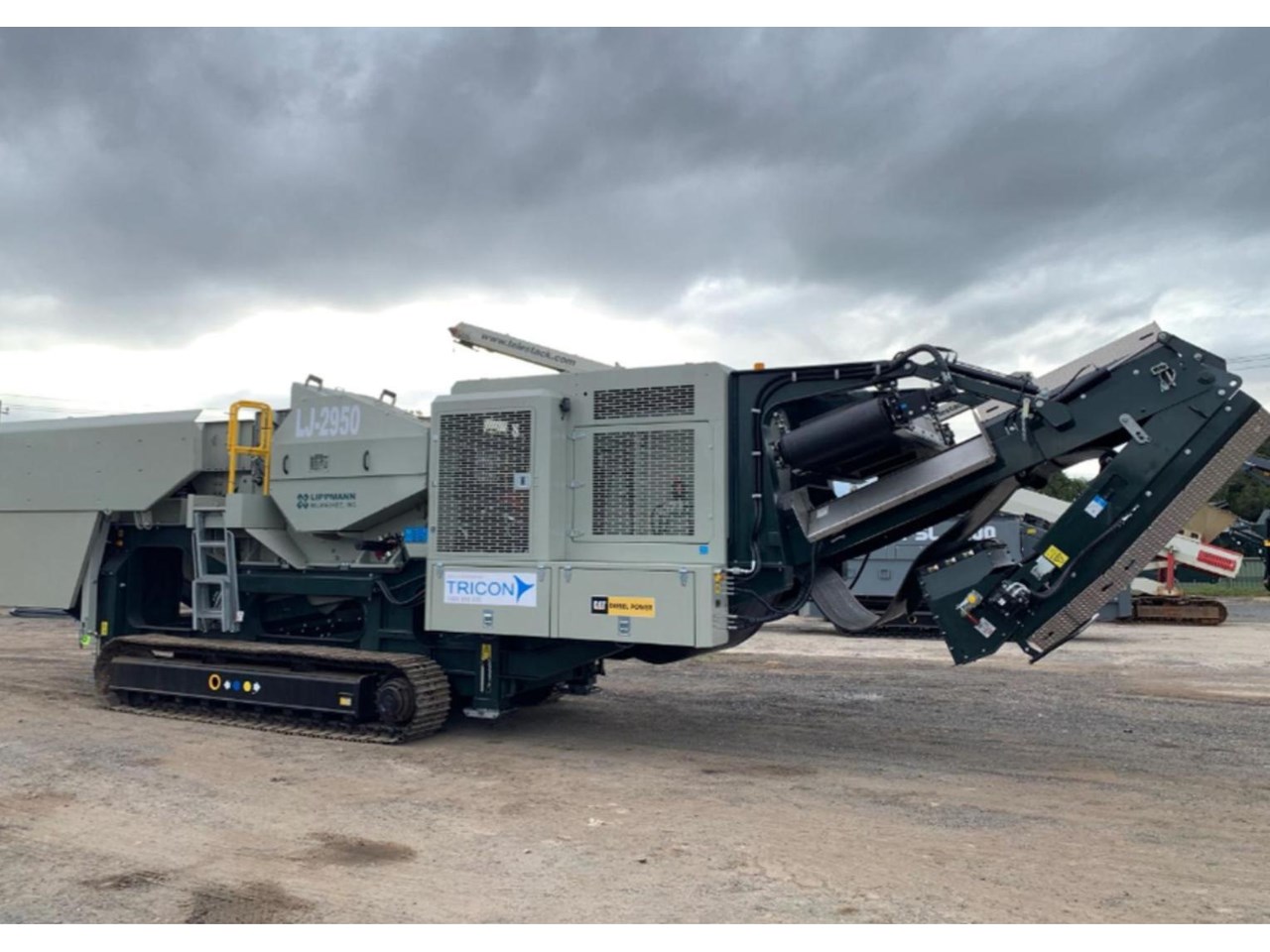

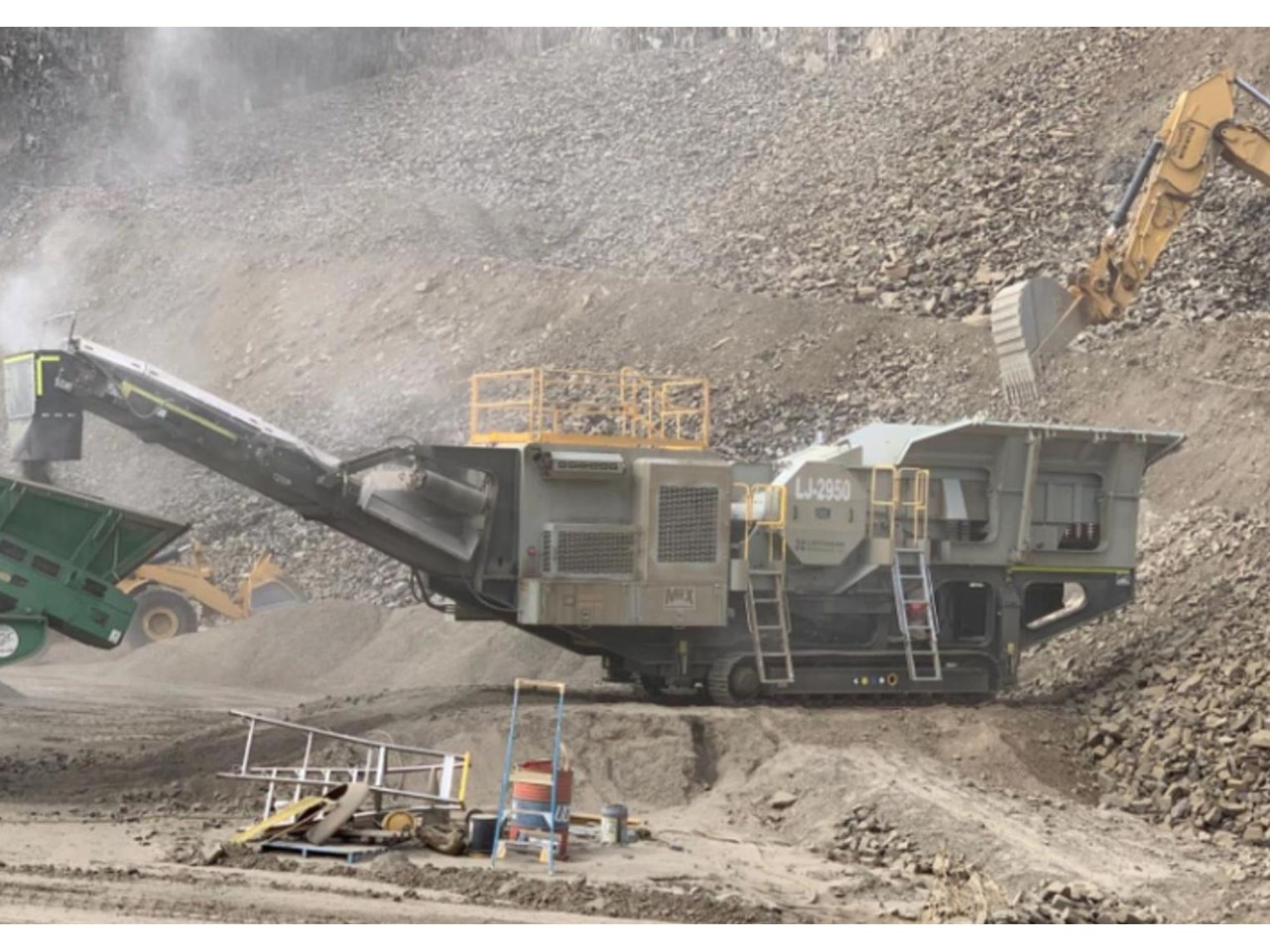

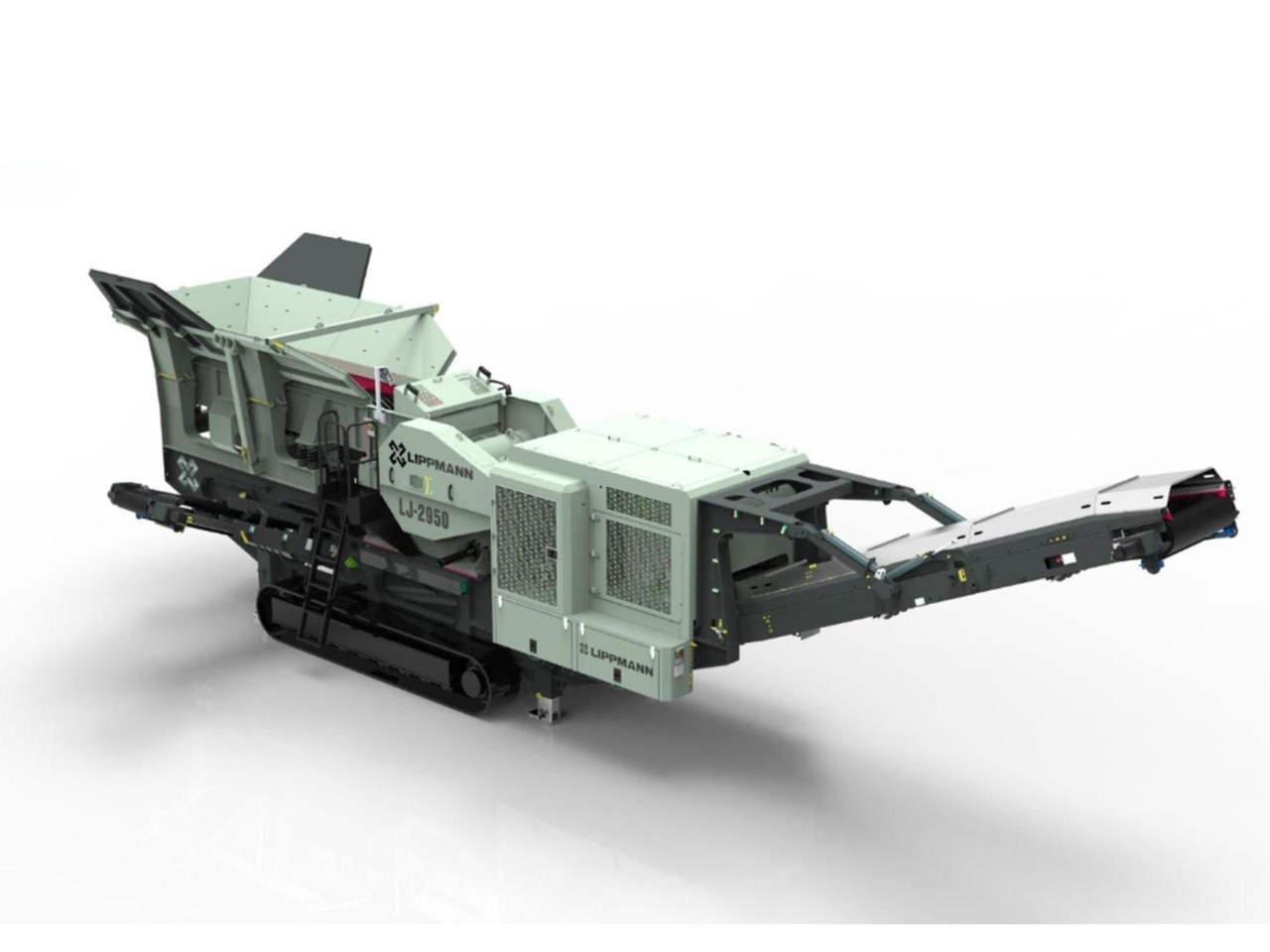

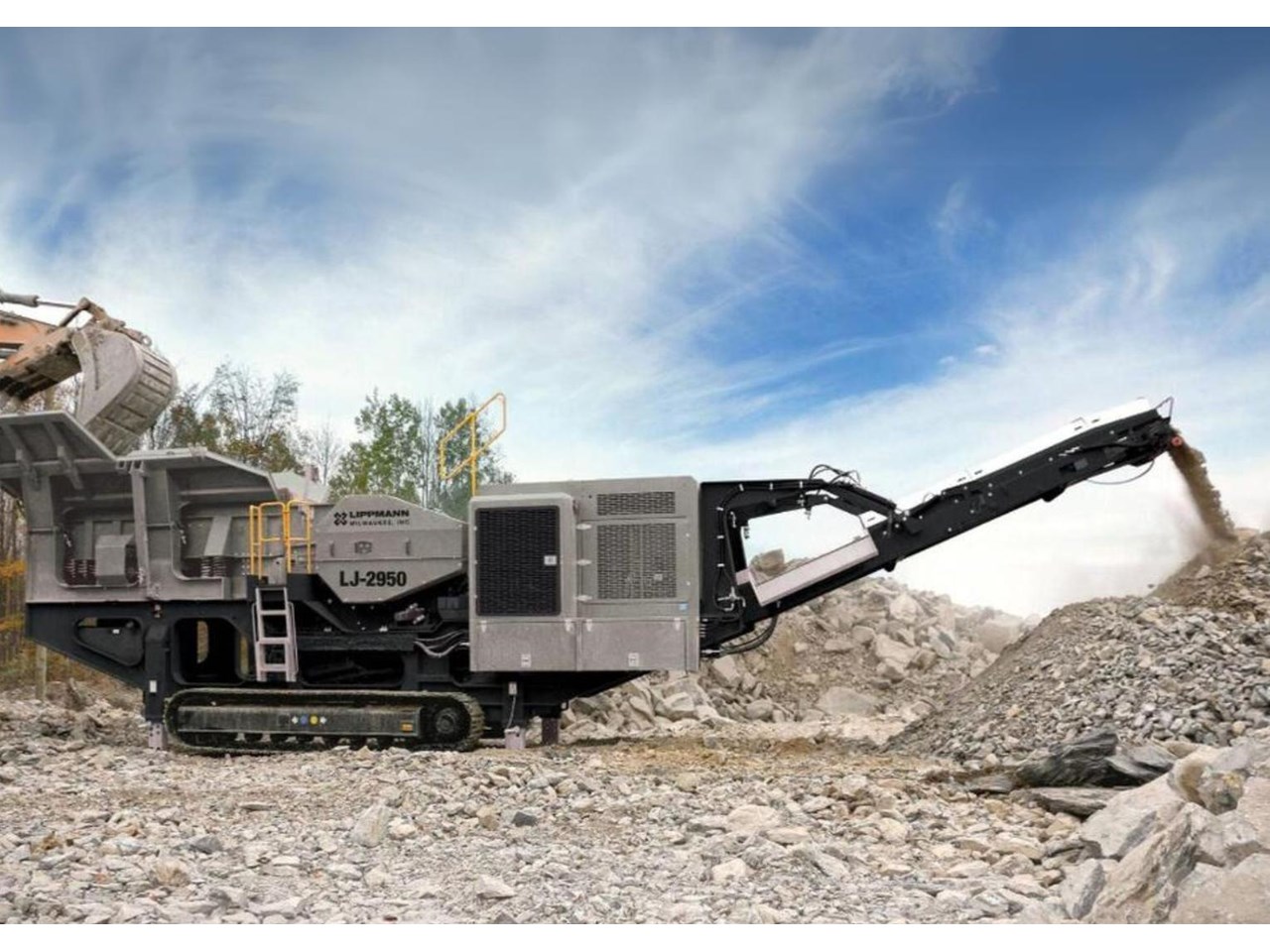

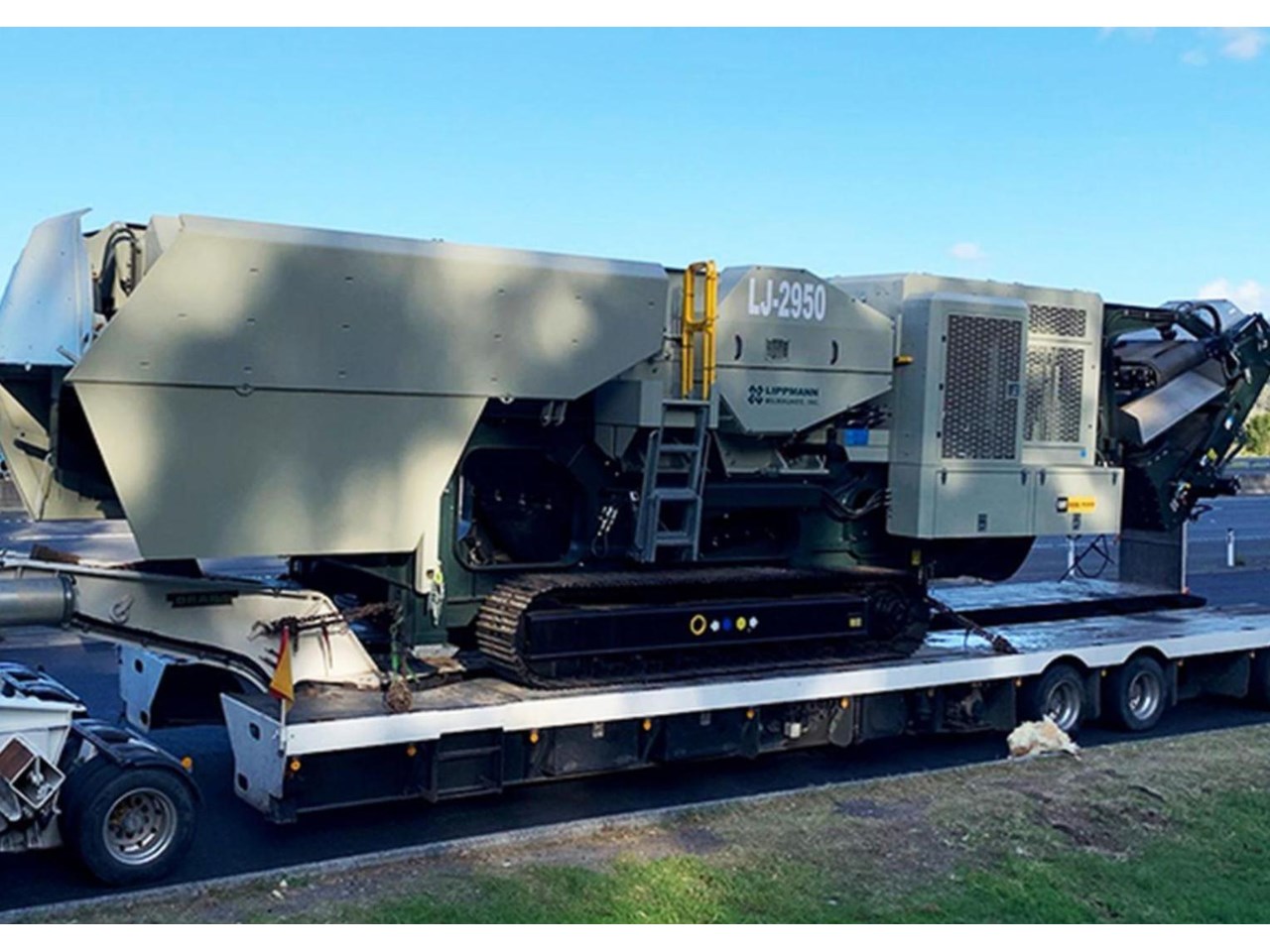

LIPPMANN LJ2950 MOBILE JAW CRUSHER

Maximum productivity is delivered through the 50" x 29" single toggle jaw with speeds that lead to better reduction and material being processed faster through the crushing chamber. This plant has enhancements to the jaw box including heavier flywheels and optimization for all crushing applications. With a class-leading throughput, capacity and largest stockpile height in its category, the LJ2950 brings even more power and productivity together in one machine.

SPECIFICATIONS

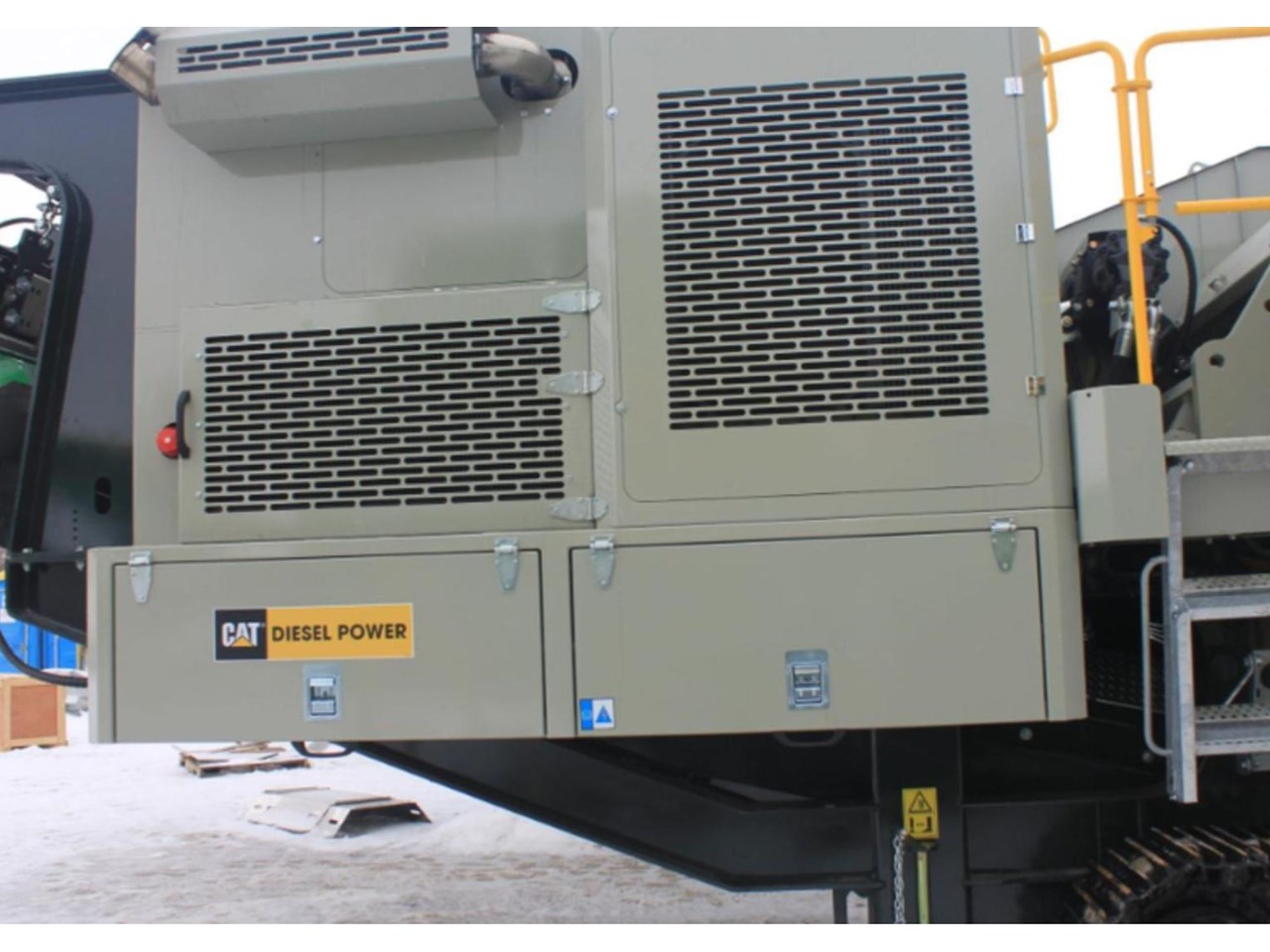

Engine: 350Hp C9/C9.3 Cat engine
Crusher Speed: 280 rpm
Feed Opening: 50" x 29" (1270mm x 735mm)
Hopper: (LxW) 5374mm x 3732mm
Stockpile Height - Main Conveyor: 13' - 11" (4250mm)
Main Conveyor Belt Width: 48" (1200mm)
Weight: approx. 51,000kgs


FEATURES

- Track mobile
- Jaw with reversible hydrostatic drive, reversible jaw plates, and fully hydraulic closed side setting (CSS) adjust jaw
- Longer fixed jaw die for more capacity and deeper nip angle deliver better jaw die utilization
- Enhanced jaw speed leads to better reduction and product being processed faster through the crushing chamber
- Folding hopper mounted over vibrating pan feeder with integral grizzly pre-screen
- Cheek plates and flywheels are heavier and balanced for increased efficiency
- Extended main conveyor as standard, giving large stockpile capacity. Conveyor lowers and raises hydraulically

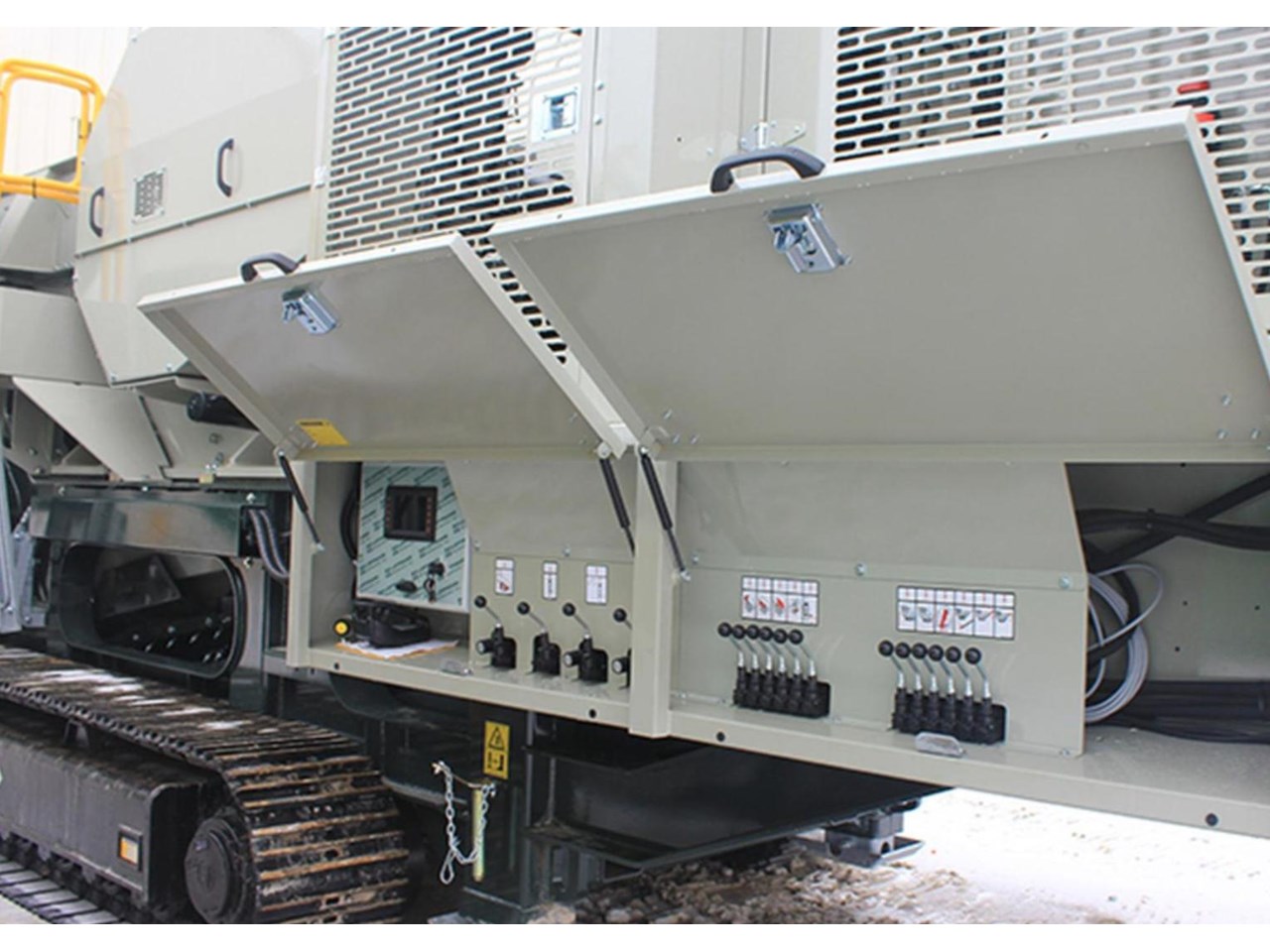

- User friendly waterproof and dustproof control panel allows monitoring of pressures, fluid levels, and fuel consumption
- Optional magnet enables magnetic material separation from the source material
