2021 LIPPMANN LR 620 SCALPING / RECLAIMER SCREEN
Features
Title | 2021 LIPPMANN LR 620 SCALPING / RECLAIMER SCREEN |
Type | Screening and Crushing |
Sub Type | Screening - Crushing |
Class | Reclaimers |
Make | LIPPMANN |
Model | LR 620 SCALPING / RECLAIMER SCREEN |
Year | 2021 |
Sale Price | POA |
Listing Type | New |
Stock Number | S393 |
RefCode | TA986357 |
Description

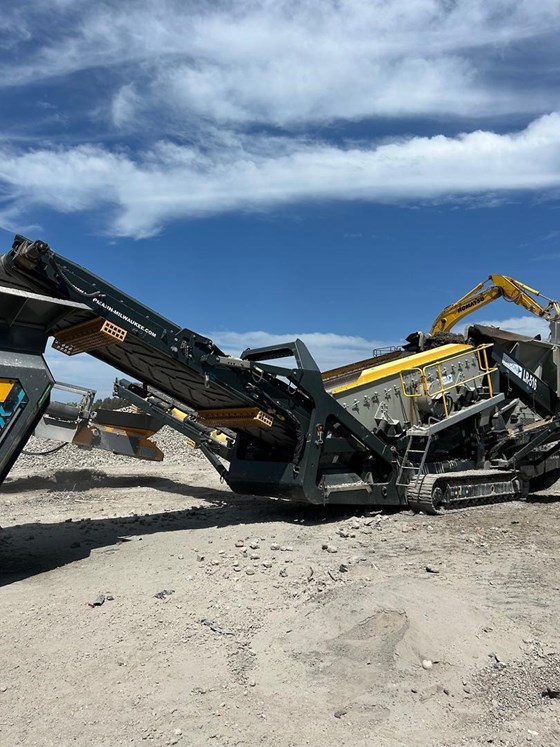

LIPPMANN-MILWAUKEE LR-620 MOBILE SCALPING SCREENER
Heavy-Duty | Easy-To-Use | World-Class Brand | Official Authorised Dealer
Available NSW, VIC, QLD & TAS for SALE & HIRE
12-MONTH manufacturer's warranty on NEW machines.
USED / EX-DEMO machines available AUSTRALIA-WIDE (subject to stock) at discounted prices. Call the dealer to enquire.
COMPLETE after-sale service available with the dealer, including spare parts, machine servicing & support.
MACHINE DETAILS
The Lippmann LR-Series scalping screeners take on the toughest applications on the planet. These heavy duty reclaimers manage difficult materials, such as primary blast feed, heavy minerals, demolition waste and land clearing sites. With the strongest construction available in the class and industry leading features the LR-Series are clearly the best choice.
The Lippmann Milwaukee 20 x 6, High Energy Durable Screener is one of the most robust, durable and powerful heavy-duty mobile screeners at work around the world today. Designed to provide strong production levels to heavy-duty scalping operations, the LR-620 screener is capable of operating as a stand-alone plant producing a finished product, or as a primary scalping component to the very largest of portable crushing spreads. Lippmann-Milwaukee's powerful High Energy Screener delivers higher outputs and a high-quality screened product with maximum efficiency. The LR-620 is unequalled in its productivity and versatility.
TECHNICAL INFORMATION
Engine 225Hp (168kW)
Screenbox - Top Deck 20' x 6' (6100mm x 1830mm)
Screenbox - Bottom Deck 18' - 6' (5490mm x 1830mm)
Feed Conveyor Belt Width 60" (1500mm)
Stockpile Height Tail Conveyor 3830mm
Stockpile Height Fines Conveyor 4100mm
Stockpile Height Mid Side Conveyor 3660mm
Hopper Capacity - level 11.5m³
Weight 37,200 Kgs
LR-620 SCALPING SCREEN FEATURES
+ Track mobile
+ 2 bearing screenbox
+ Travel out fixed walkways
+ Largest loading area in its class
+ Direct feed Hardox lined hopper
+ Wide chutes allow better flow of material
+ Oversize heavy duty feed conveyor as standard
+ Screen raises for easy access to bottom deck
+ Integrated hydraulic folding stockpiling conveyors
+ Heavy duty construction to withstand tough material and applications
+ Low profile hopper and extended conveyor option for ease of loading
+ Wide feed opening allows free flow of material and high volume capacity
