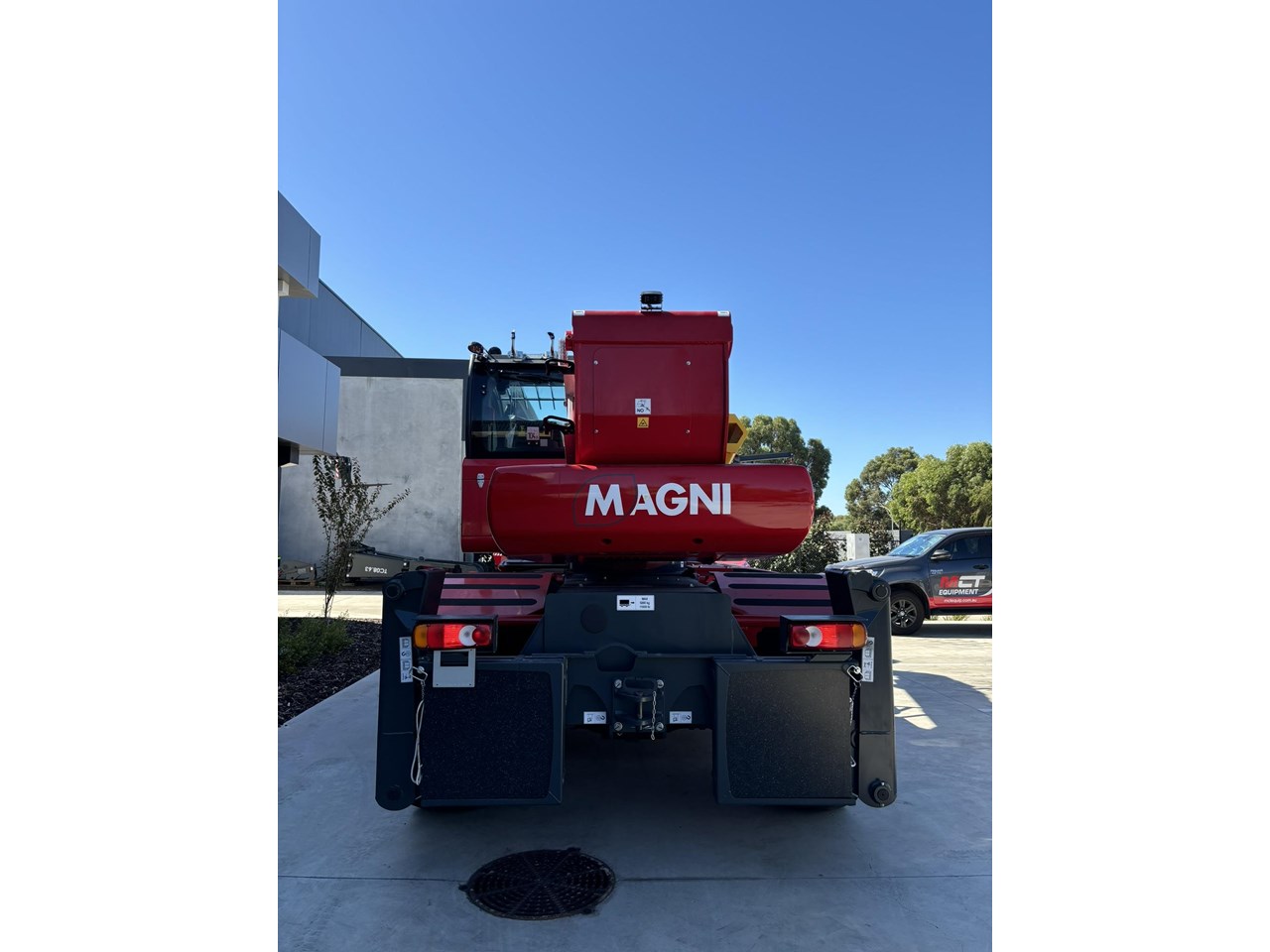

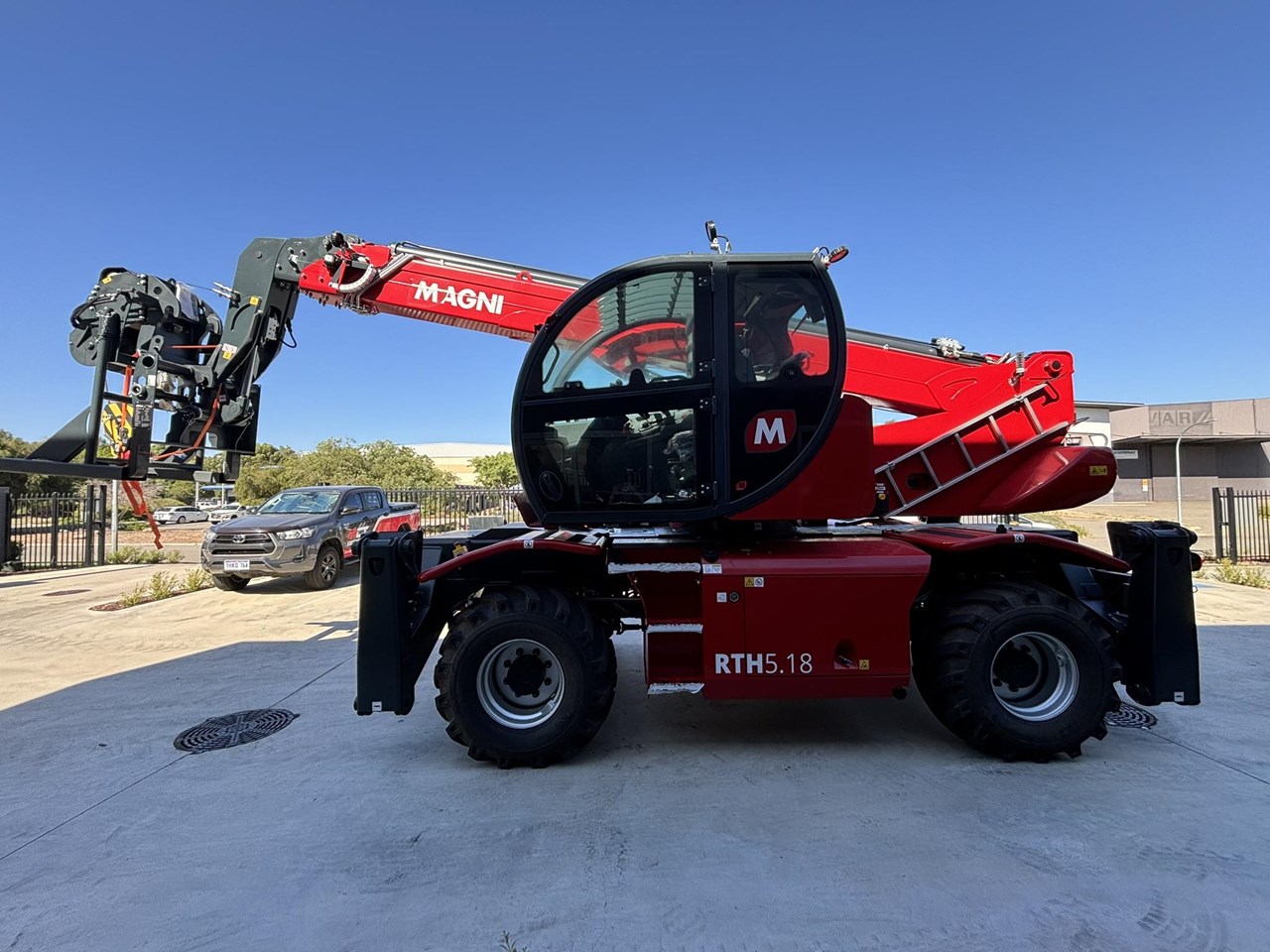

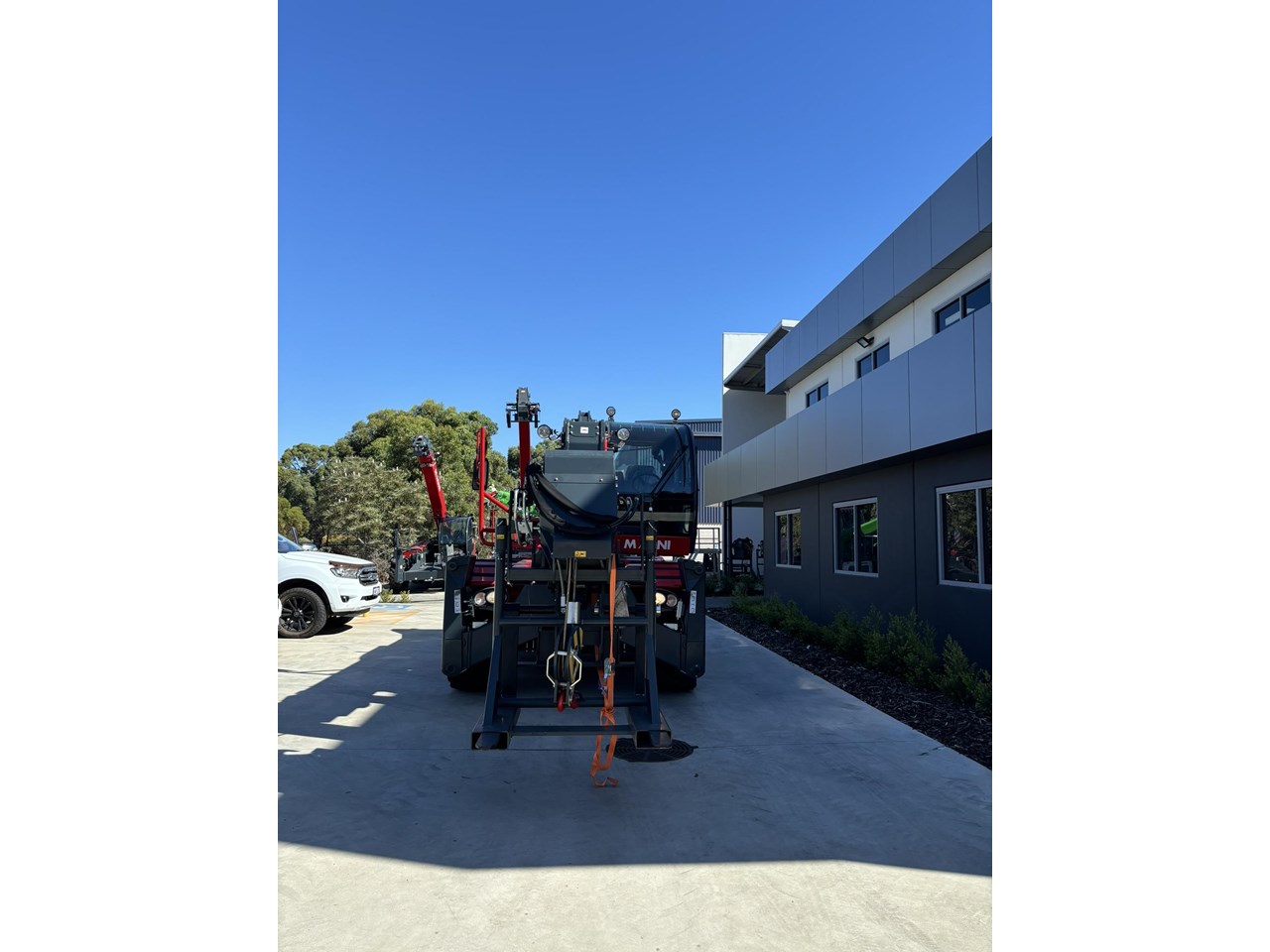

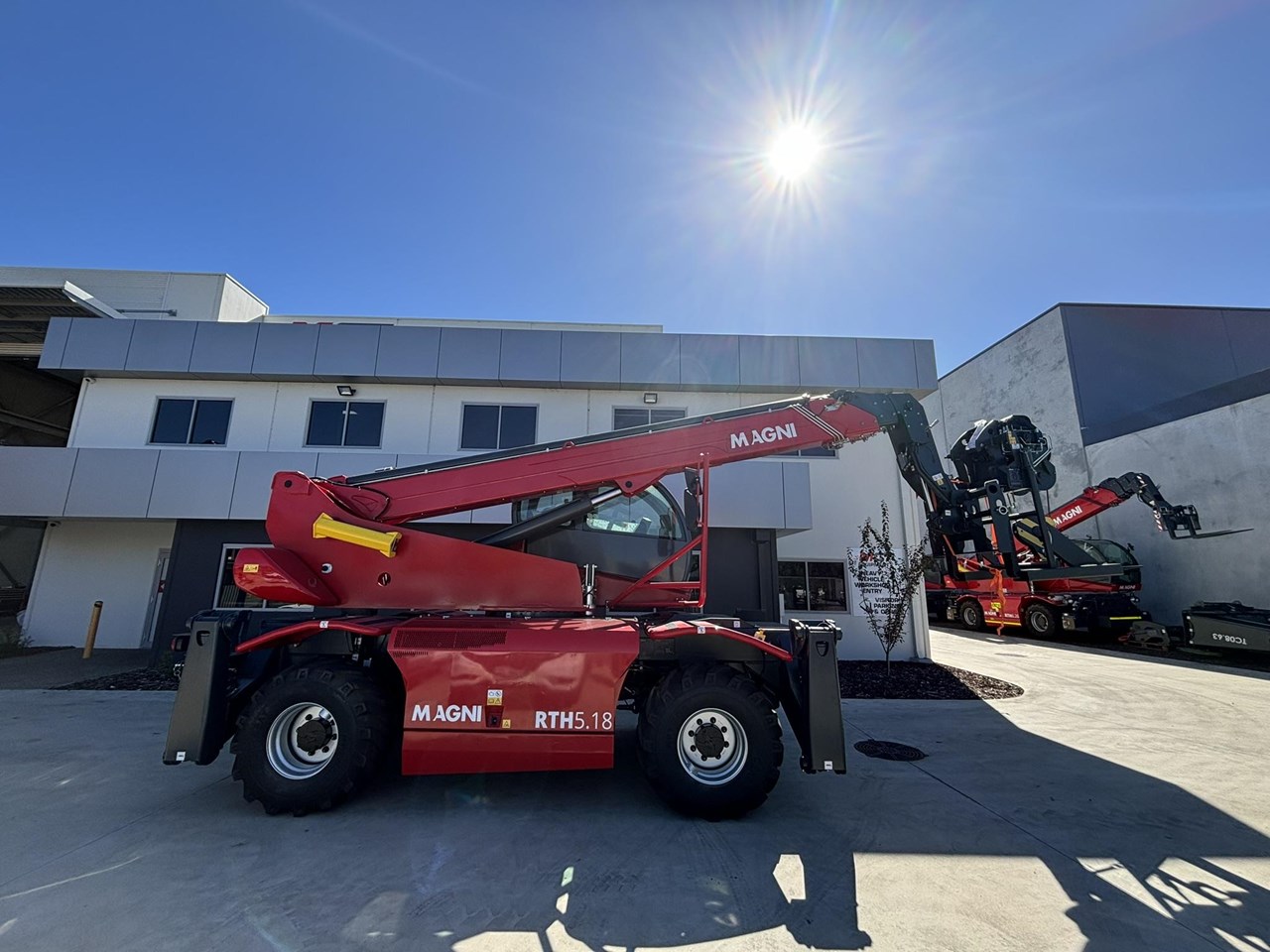

2025 MAGNI RTH 5.18

The RTH 5.18 is a rotating telescopic handler that is ideal both for construction sites and for-hire fleets.

Compact and multifunctional, it is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry.

It is equipped with pivoting stabilisers with a large contact surface and a load monitoring system to protect against the risk of machine overload and offers three steering modes.

Specifications:
o Stabilizers: Pivoting
o Lifting capacity: 4,999 kg
o Capacity at maximum height: 3,000 kg
o Lifting height: 17.40 m
o Reach: 14.50 m
o Engine: Deutz TCD 3,6 L4 HT Stage V
o Rated power: 55,40 kW (75,30 hp) 2.200 rpm
o Hydraulic flow: 90 l/min
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.80 m
o Width: 2.53 m
o Ground clearance: 300 mm
o Unladen weight: 14,400 kg
o Travel speed: 25 km/h
o Rotation: 360° (continuous)
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
o Reversable fan drive: Yes
