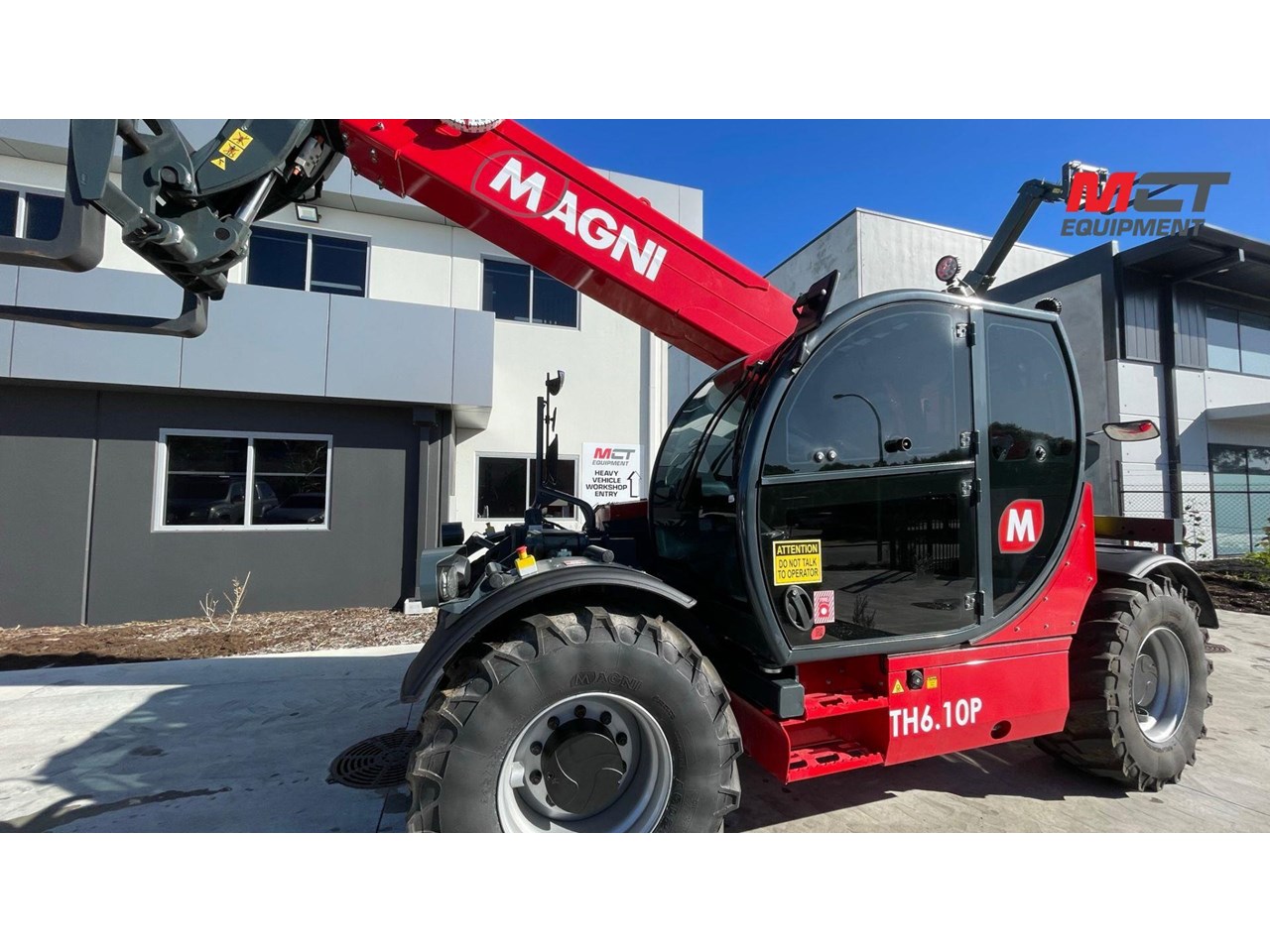

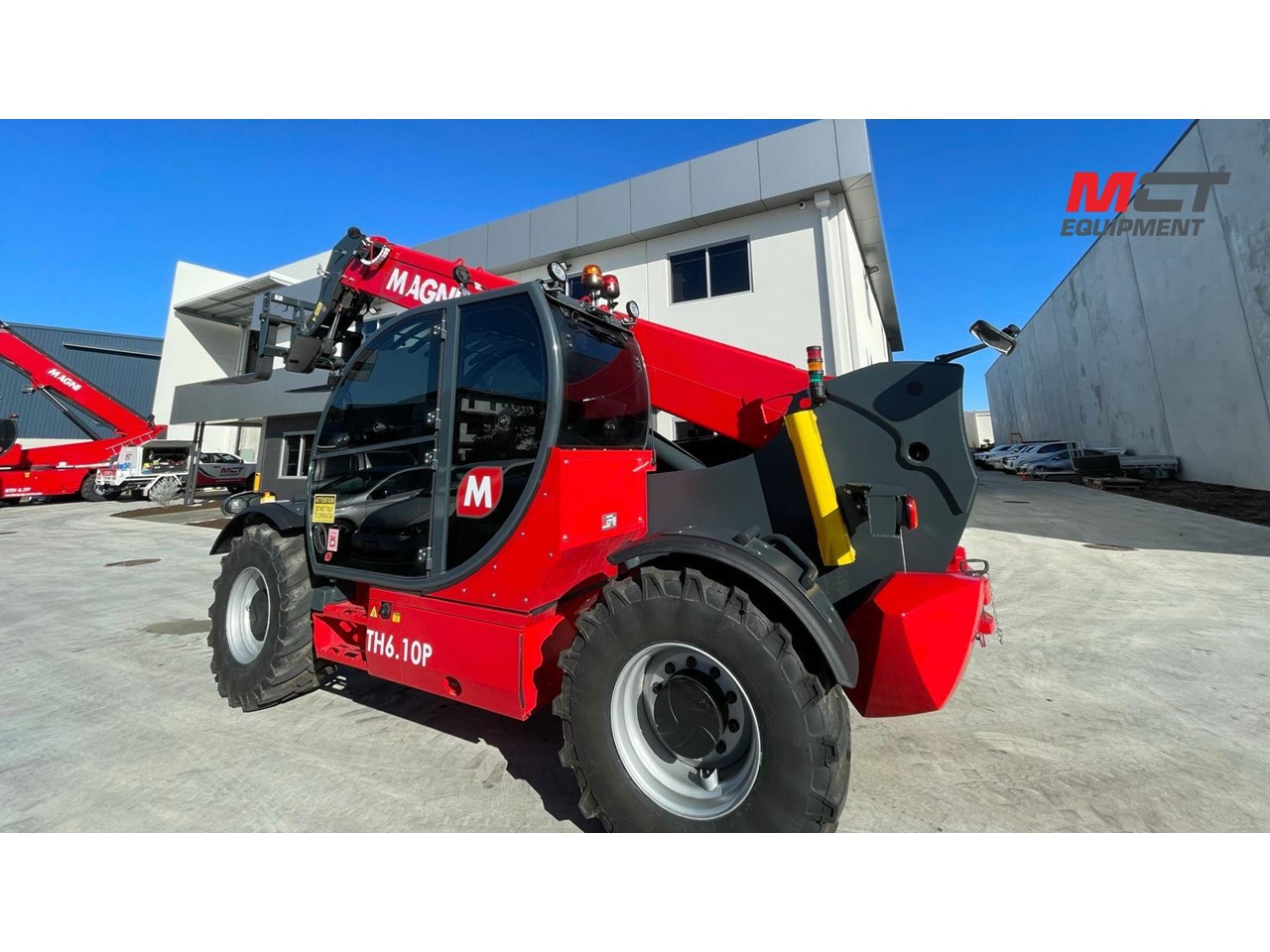

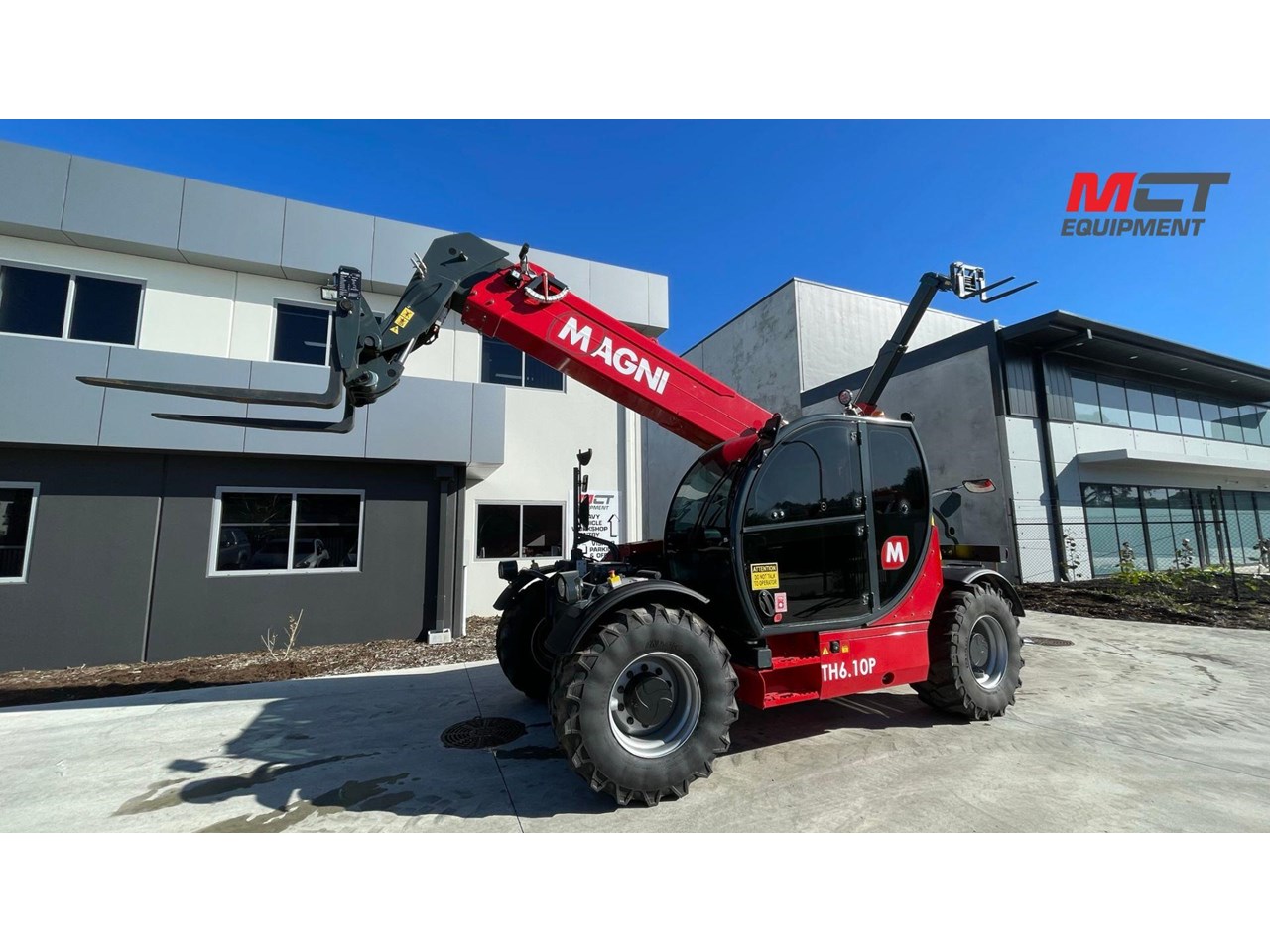

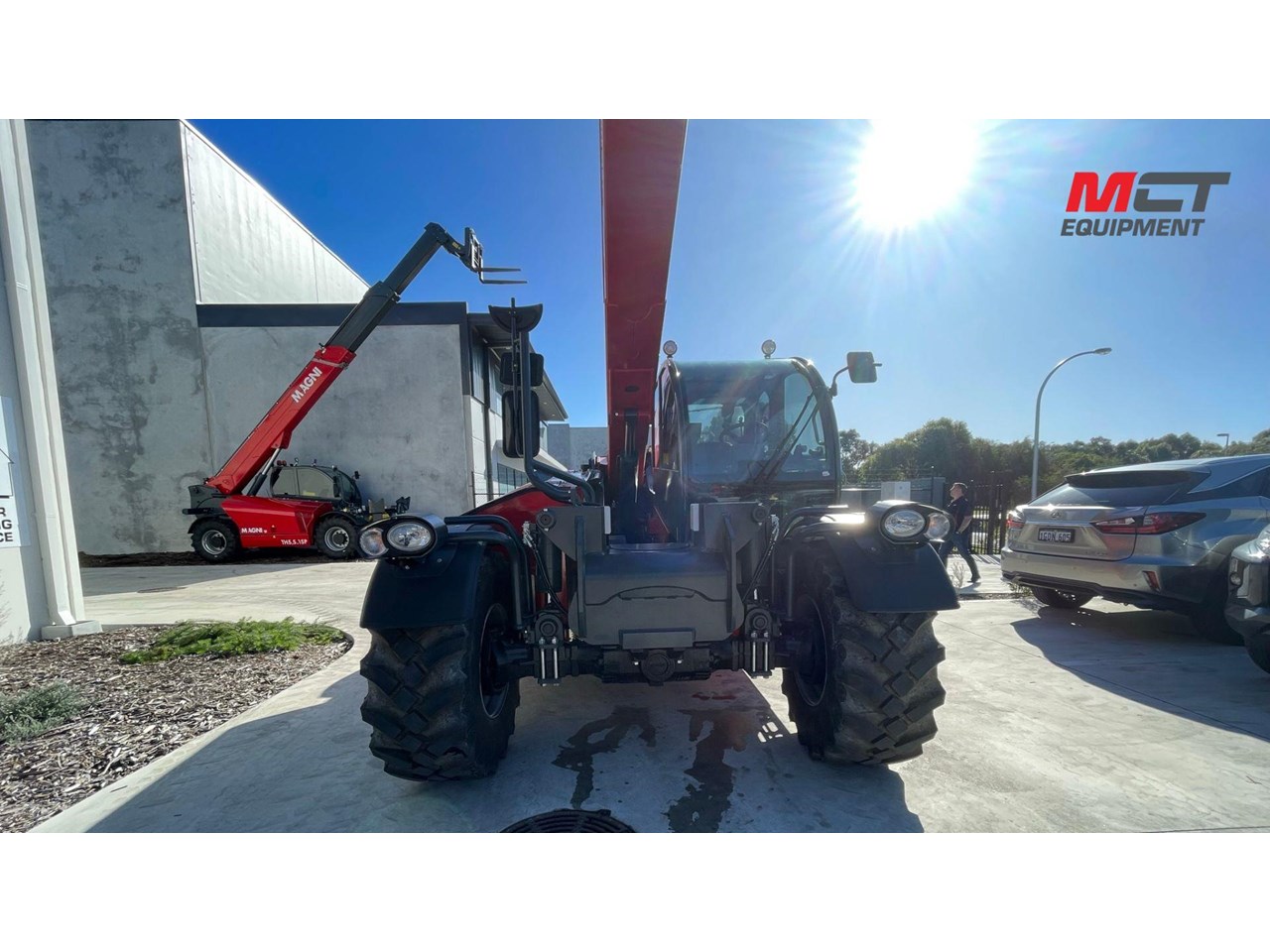

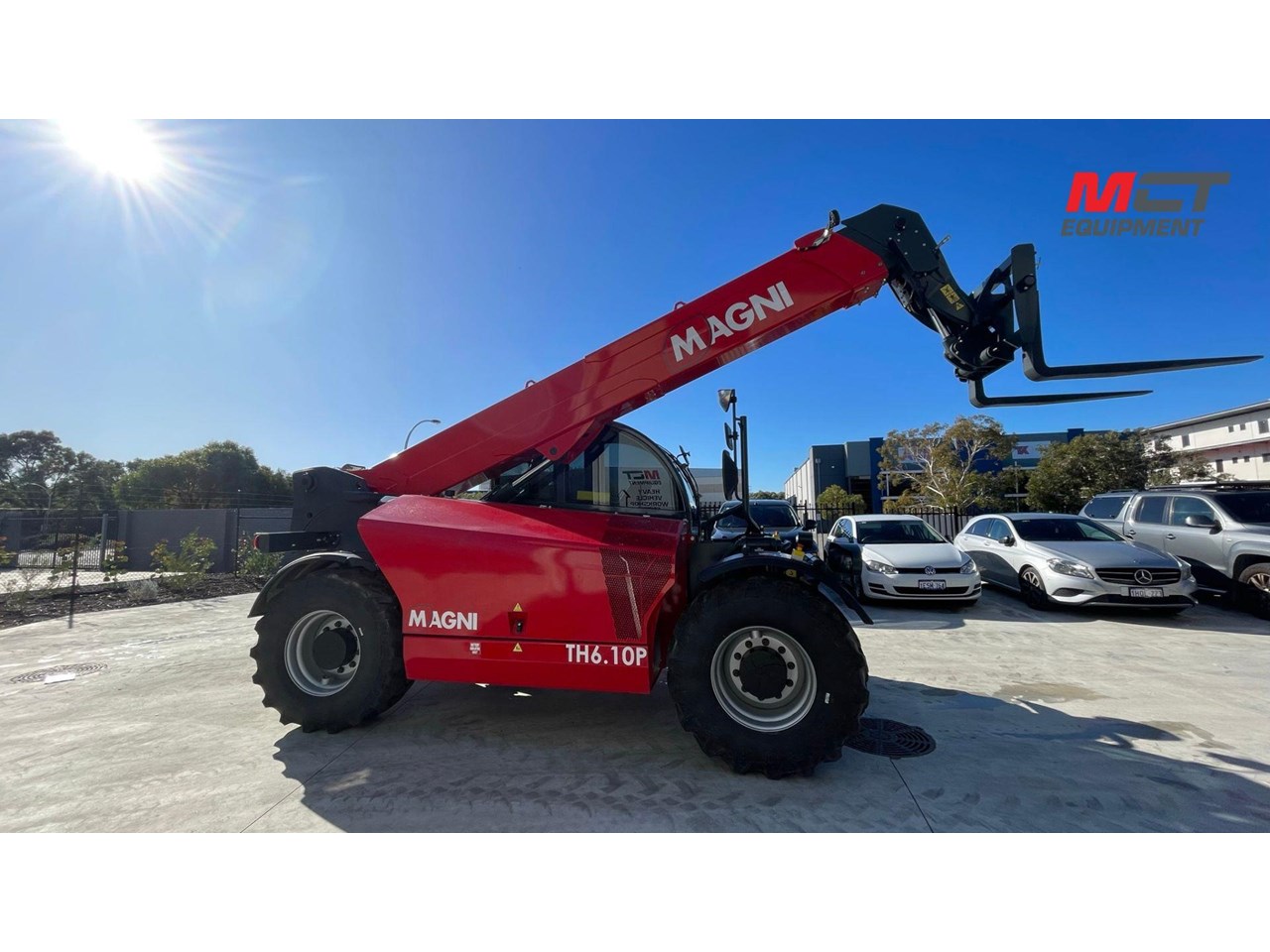

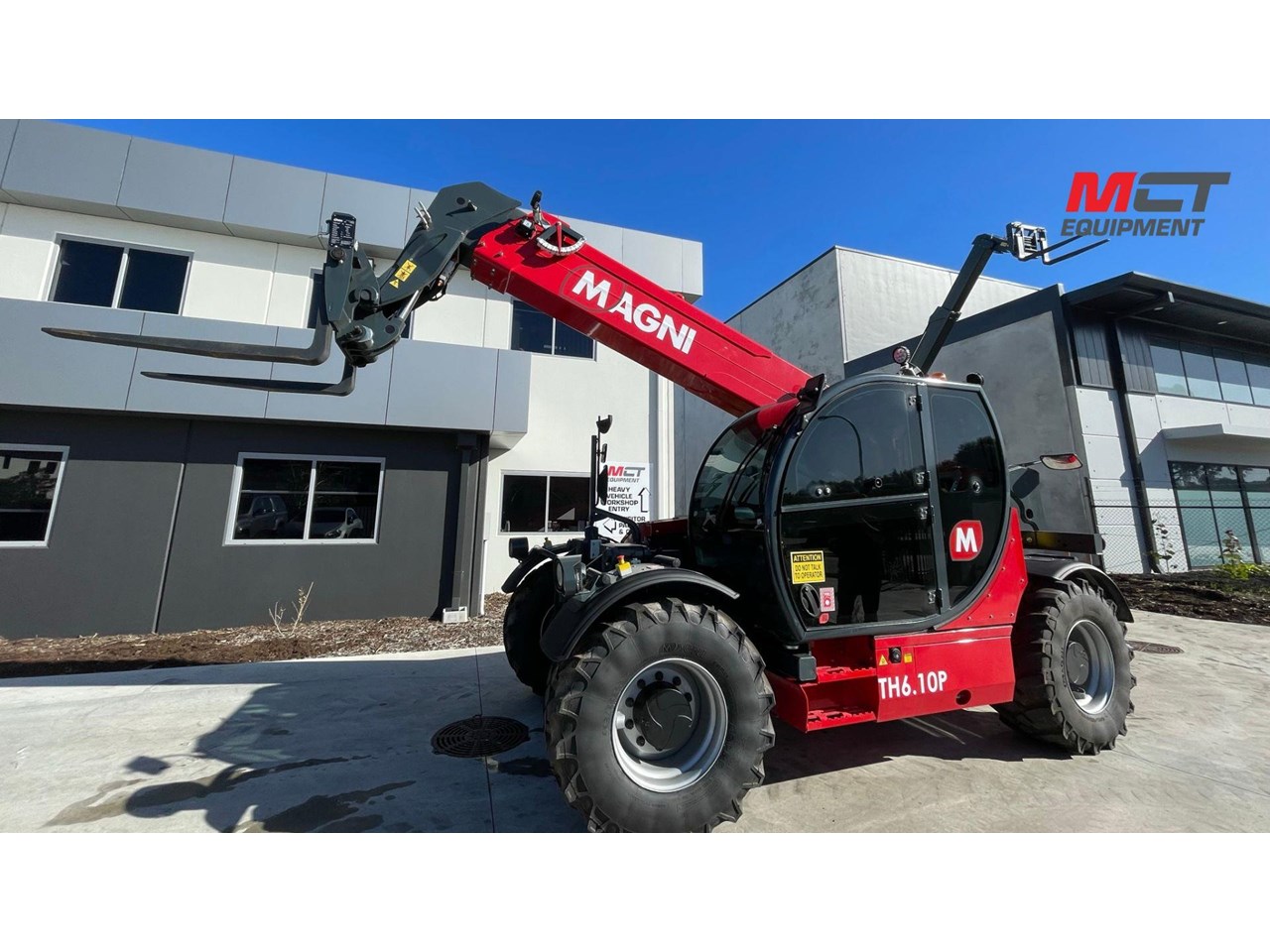

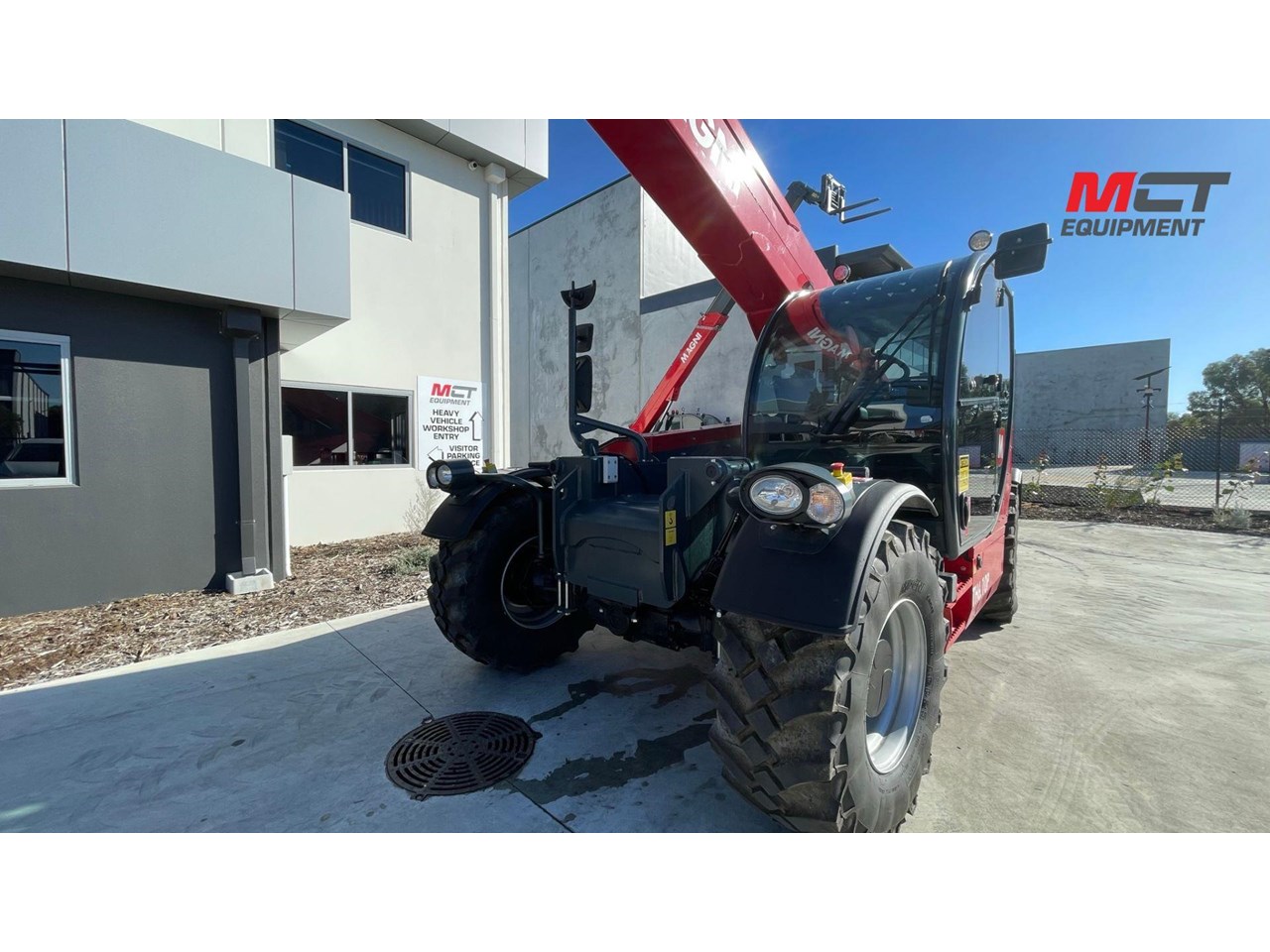

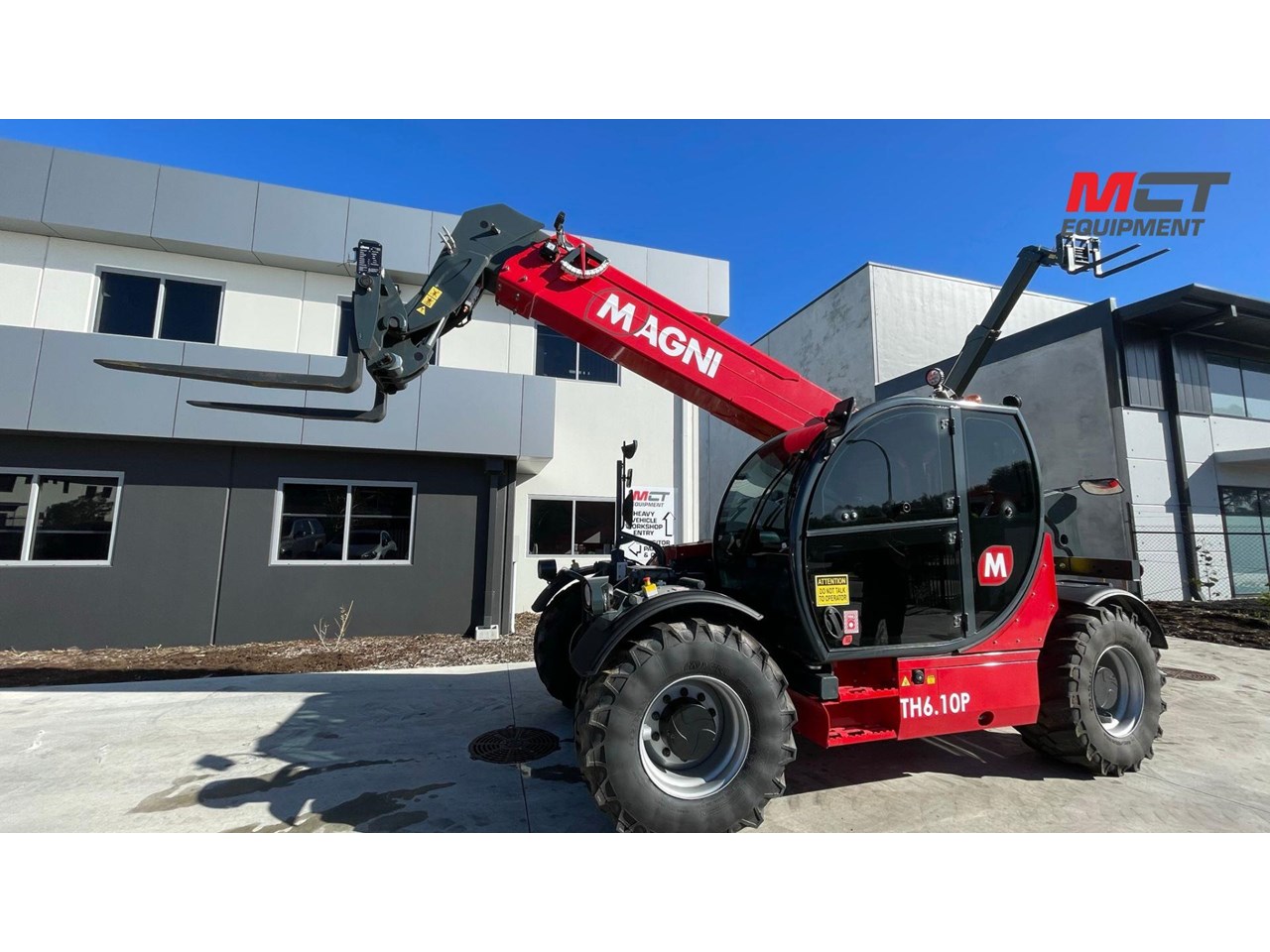

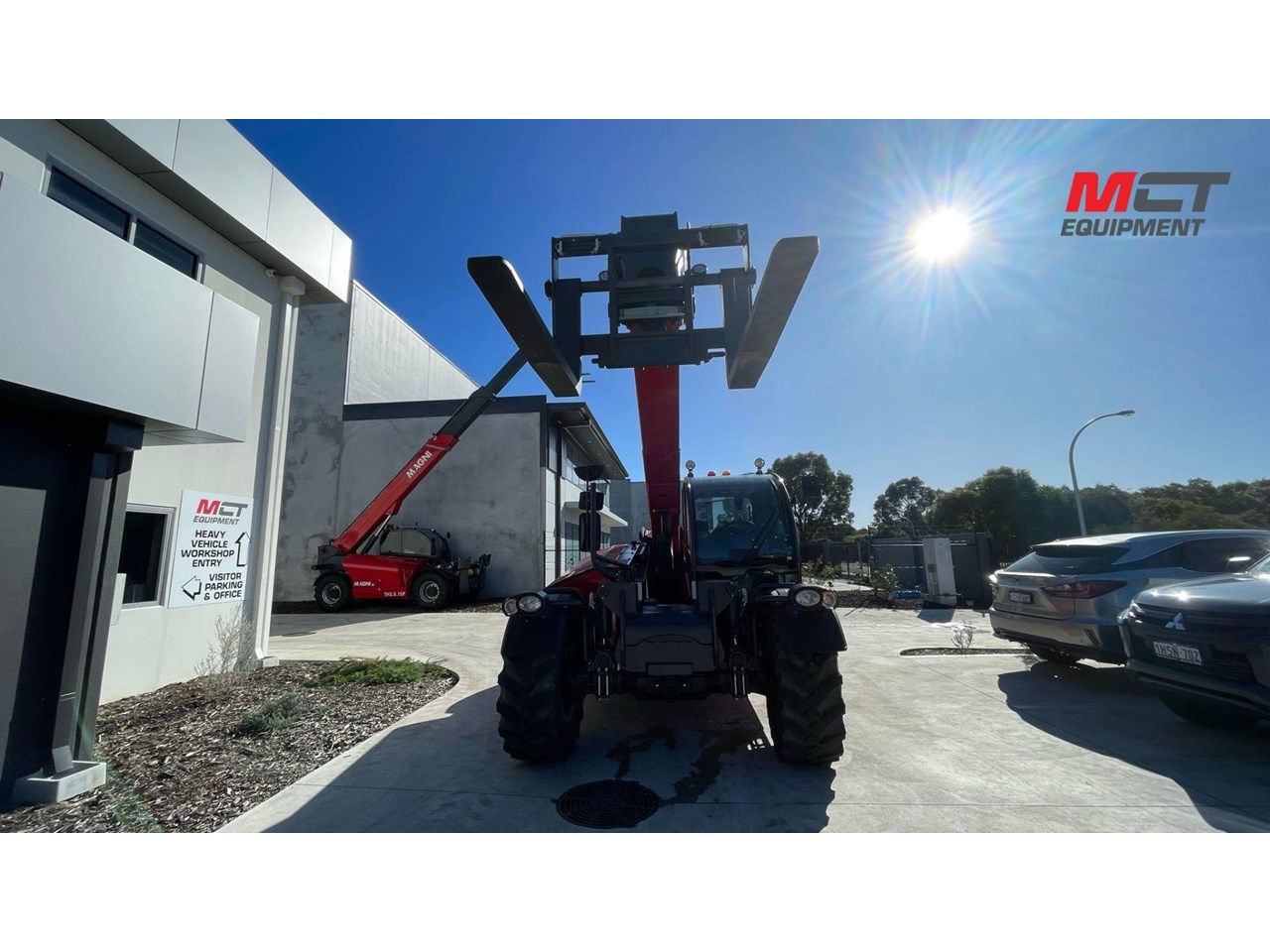

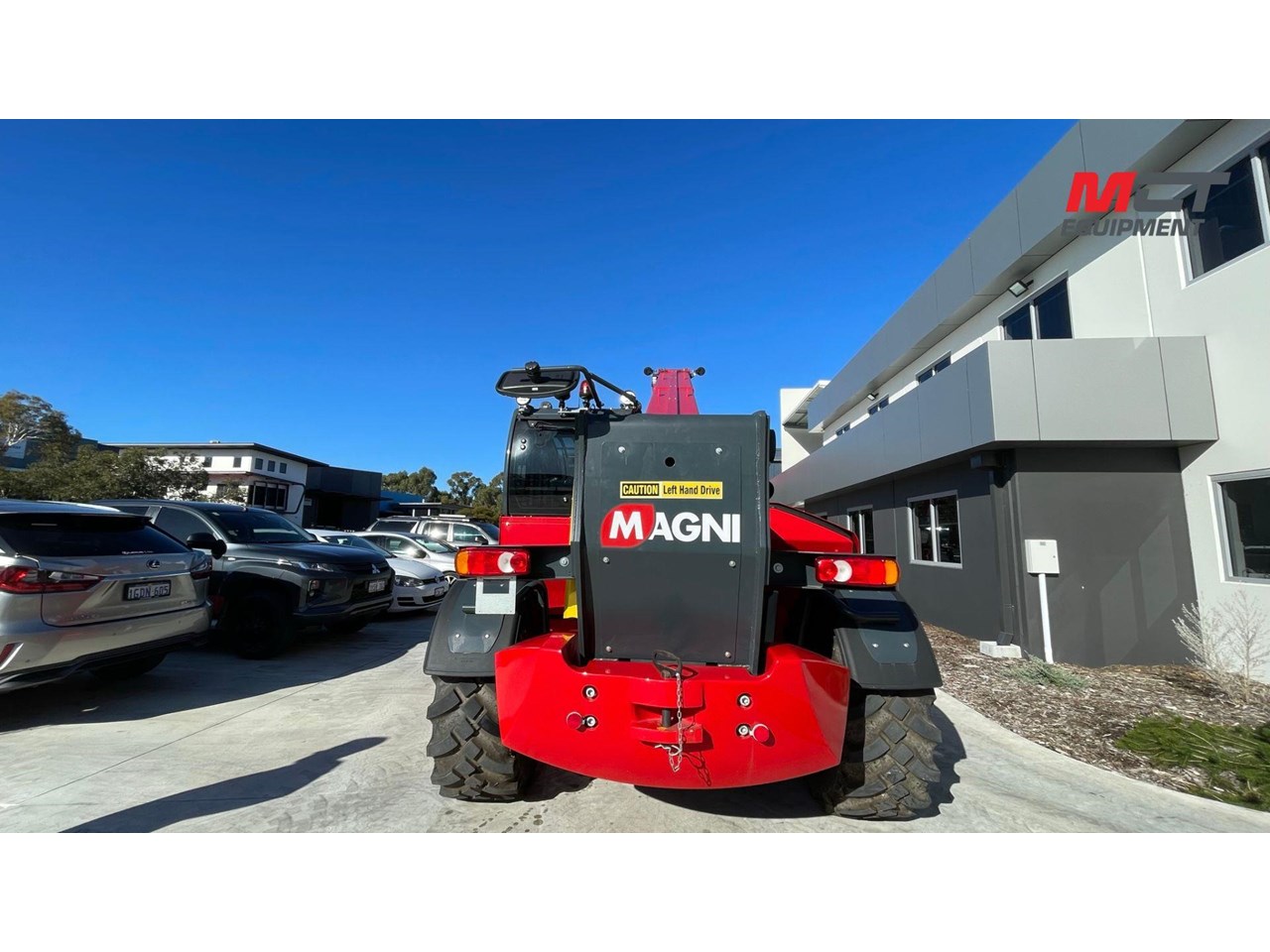

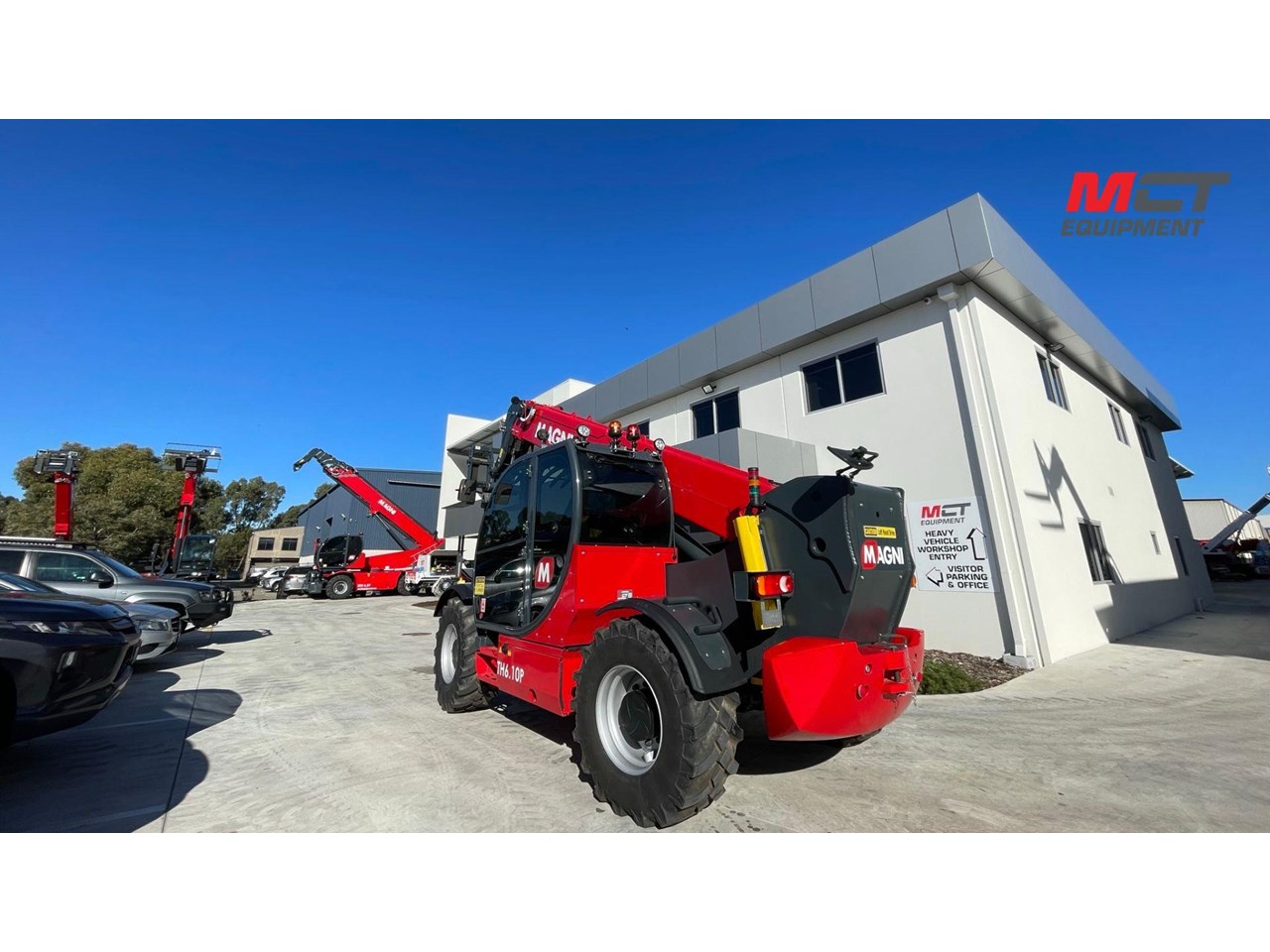

2024 MAGNI TH 6.10P

The TH 6.10P is a fixed telescopic handler / telehandler especially suitable for light industry.

Powered by a Deutz 75 kW engine, it can safely reach a height of 9.8m on rough terrain thanks to its 4-wheel drive.

The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Some features:
o Lowered design for great stability
o Available in 75 kW Engine Tier III
o 350 bar L/S hydraulic system
o 4WD Three Steering System 350 bar L/S hydraulic system
o Dynamic LMI System (compliance to all crane regulations)

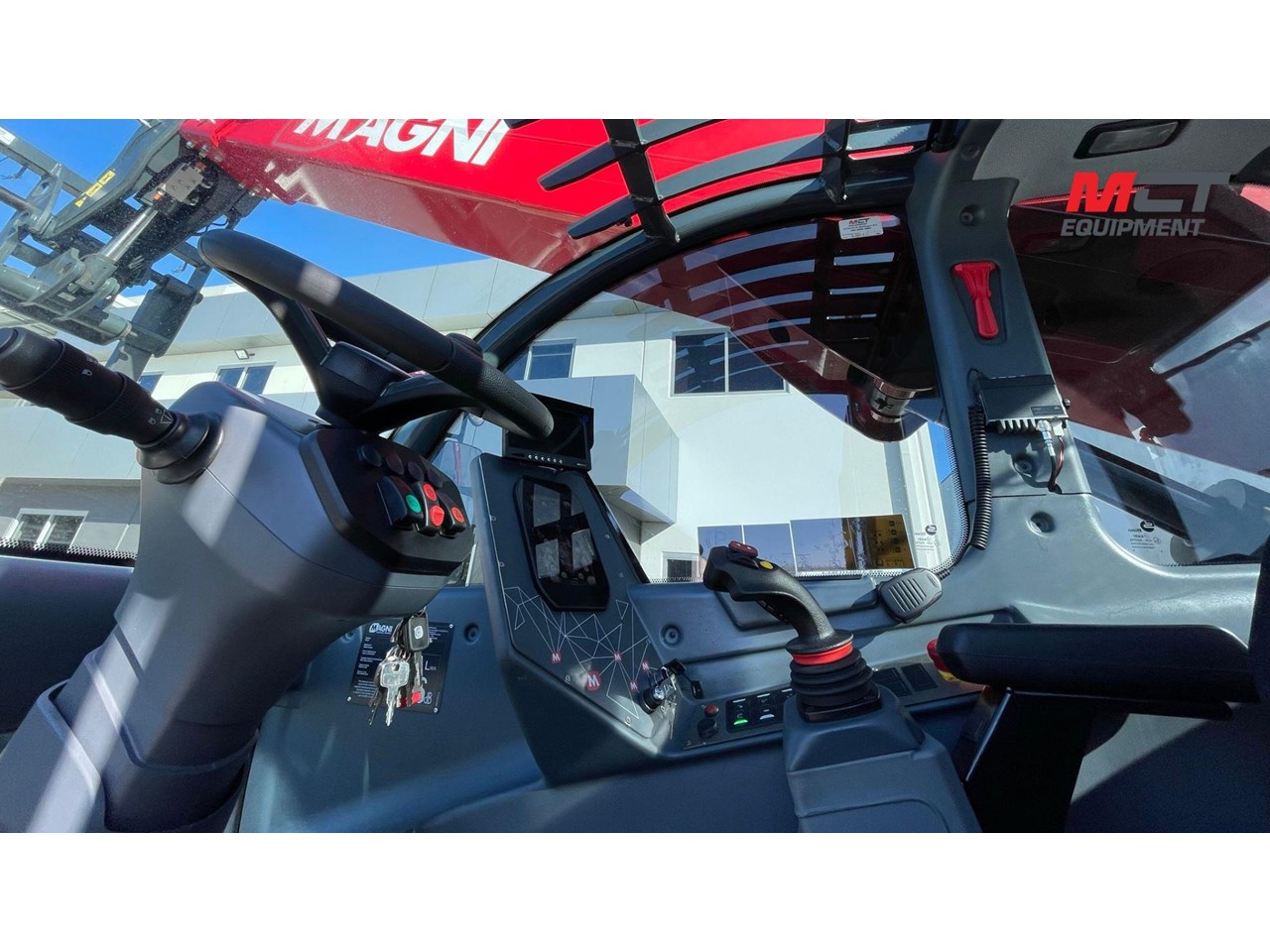

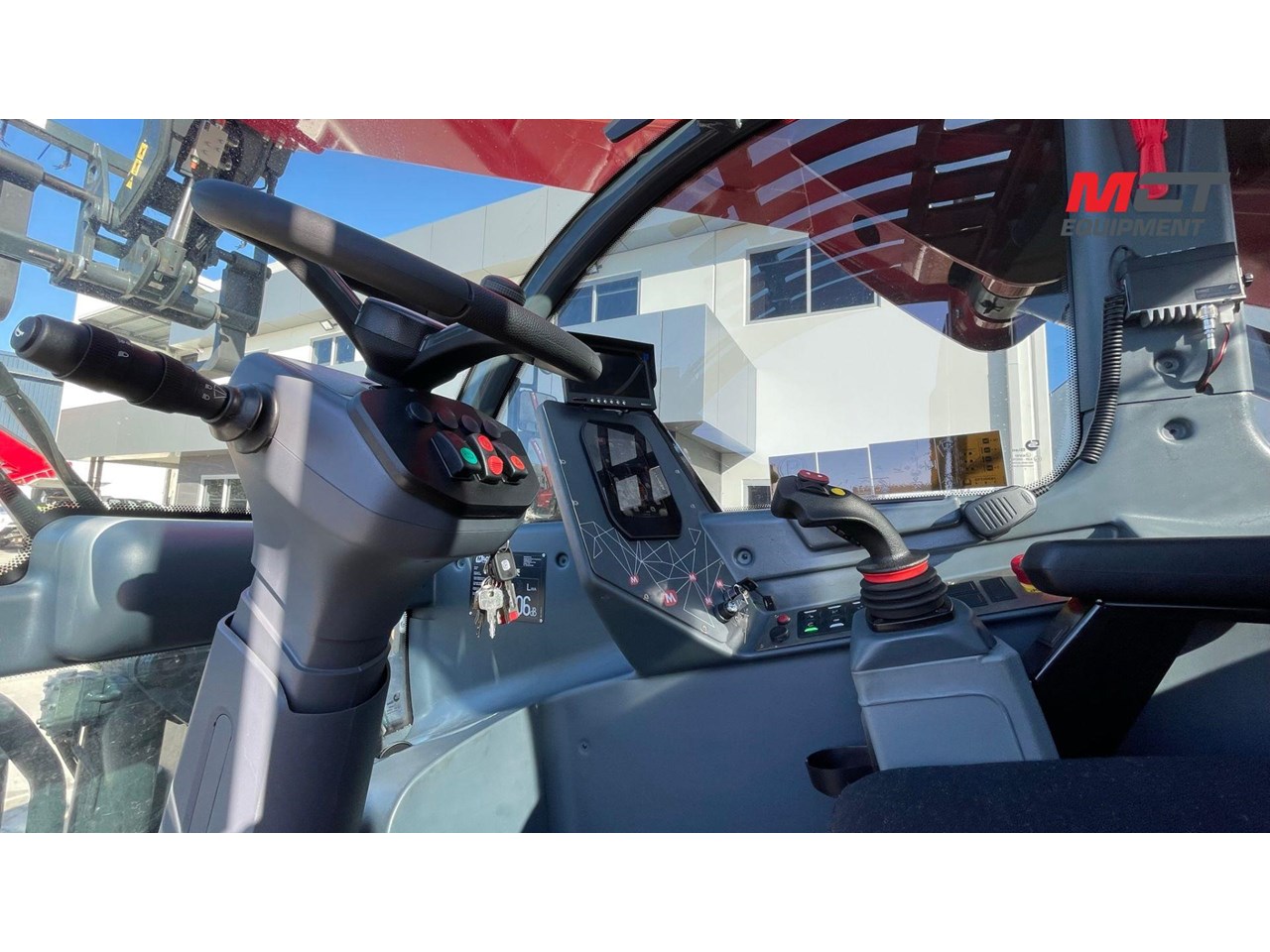

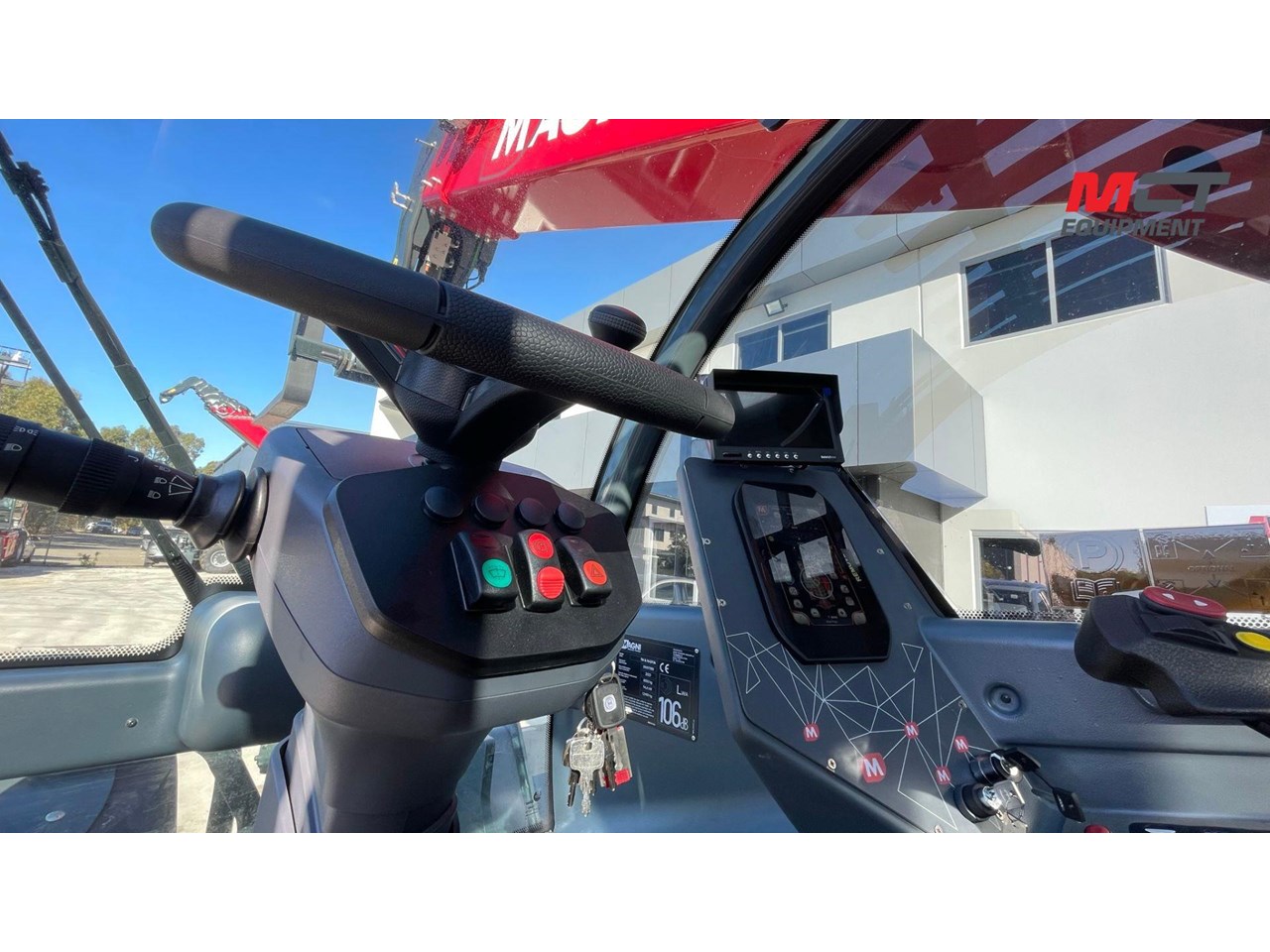

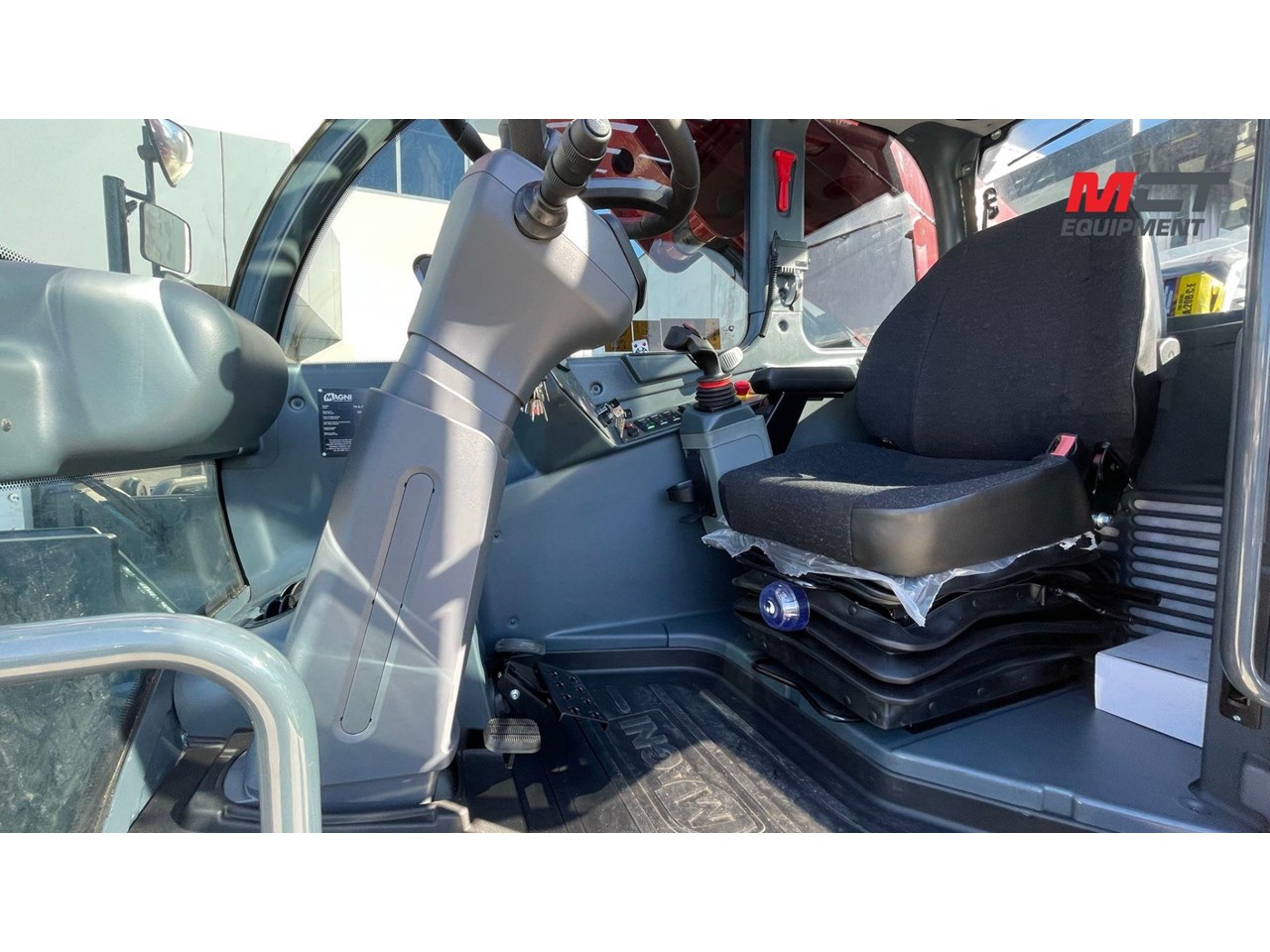

o Pressurised cabin
o ROPS II & FOPS

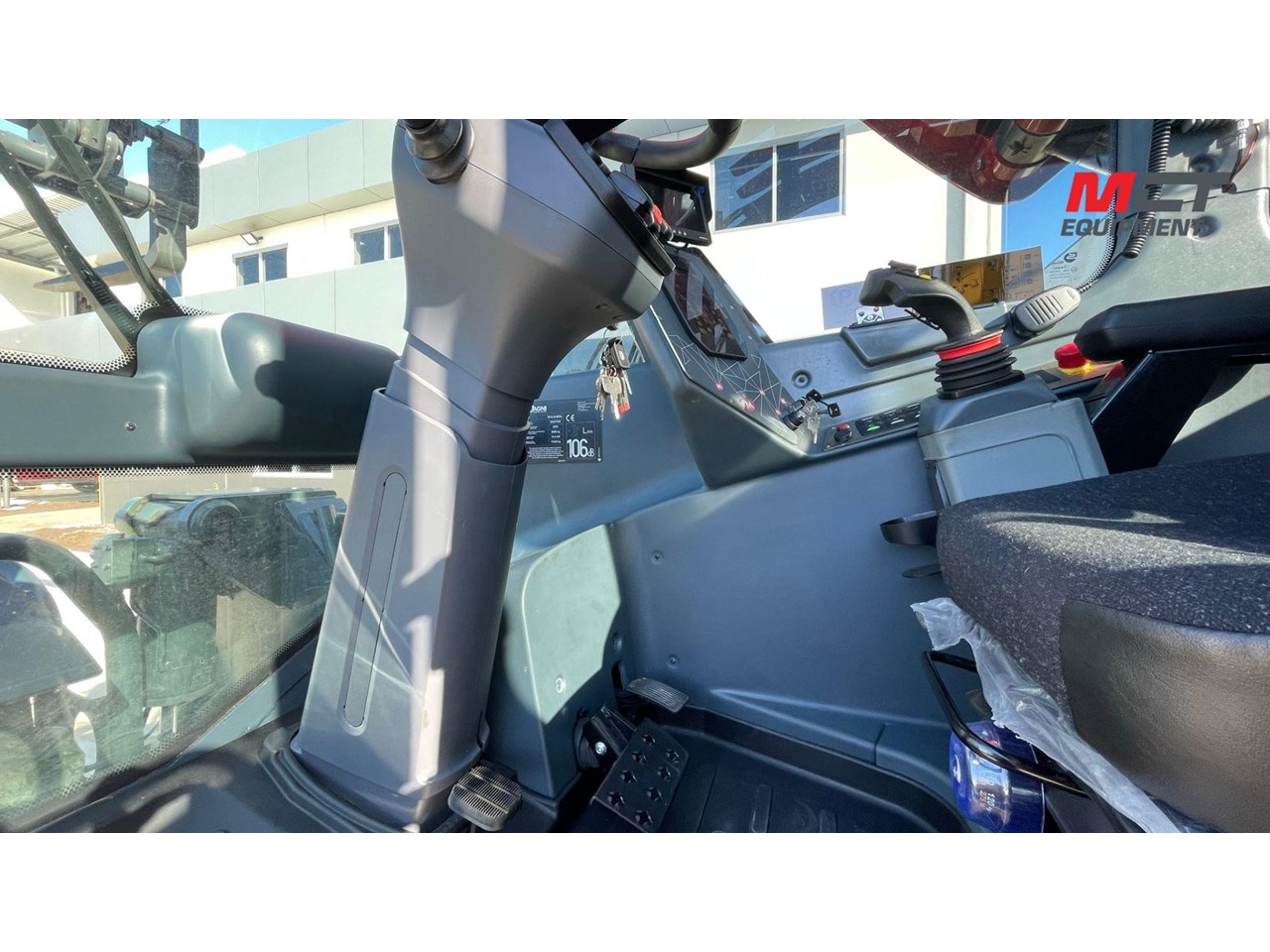

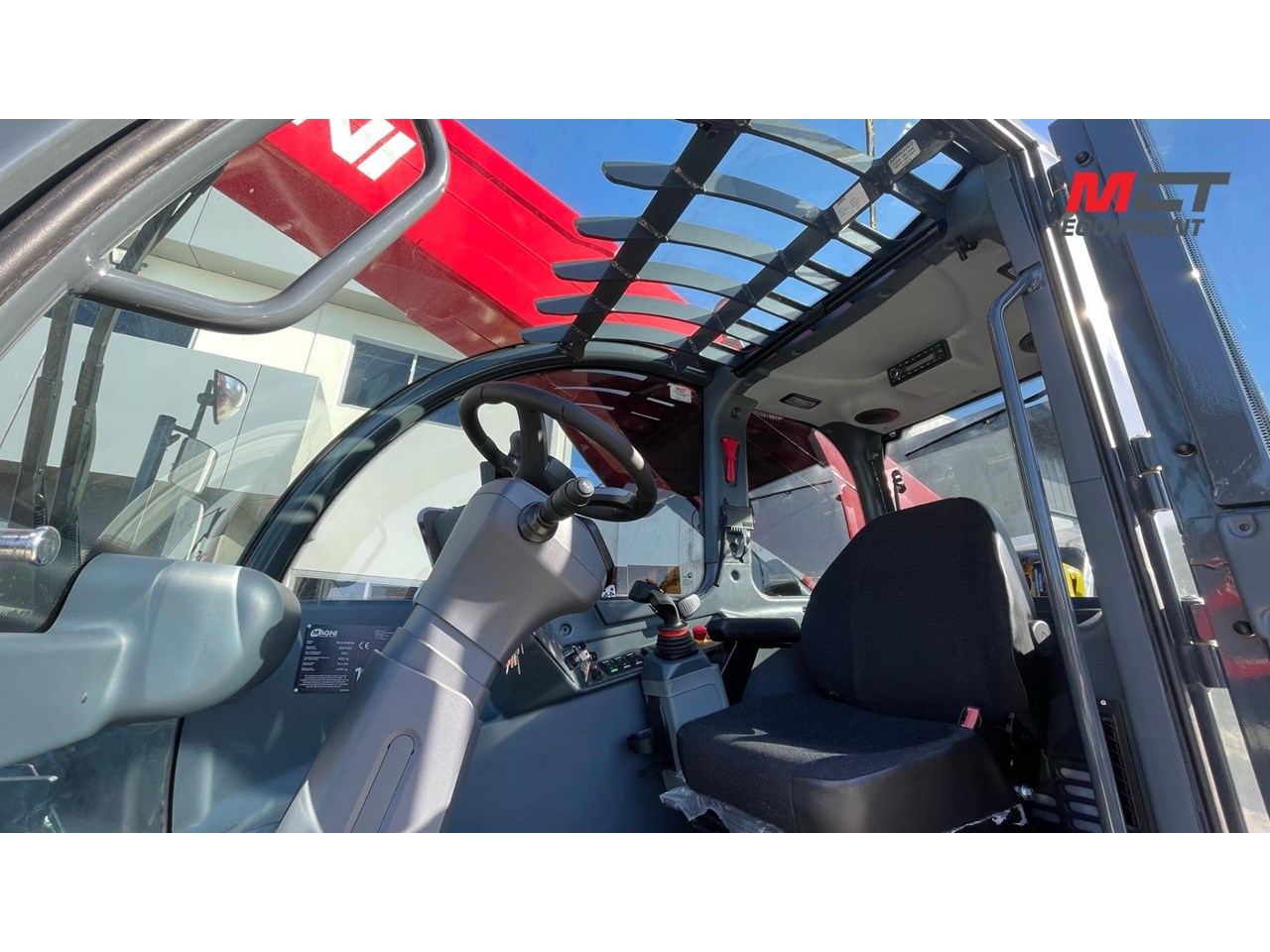

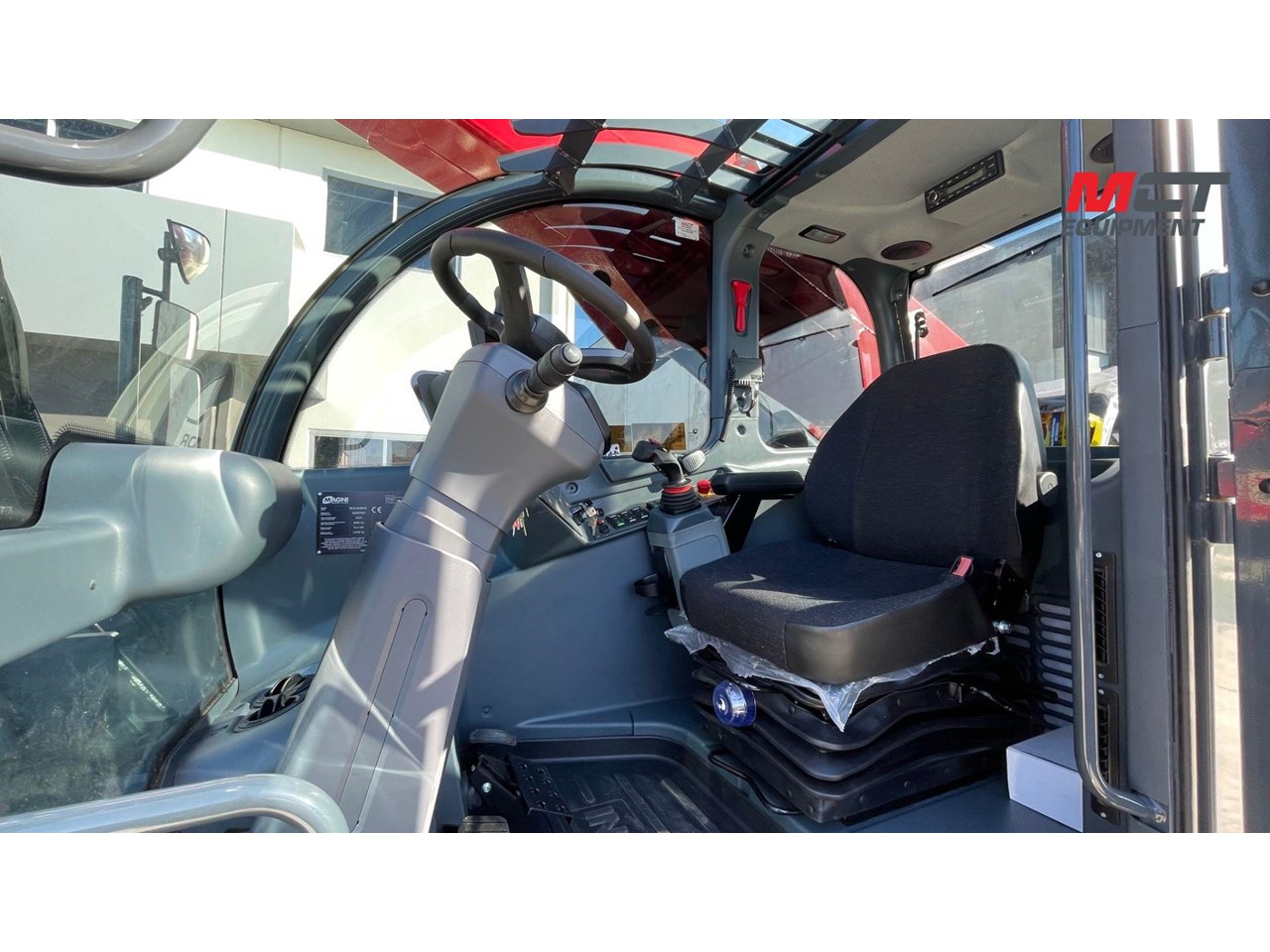

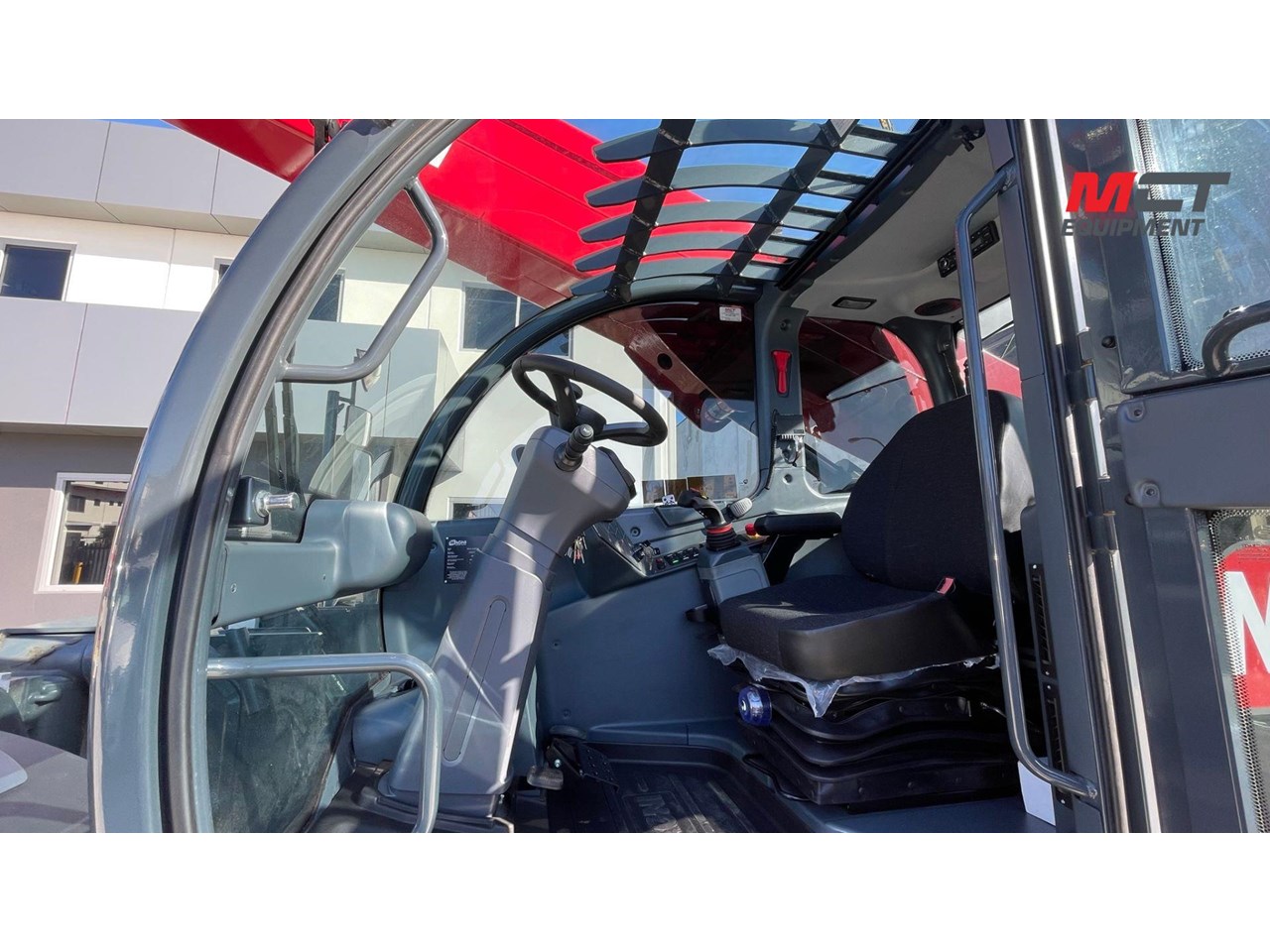

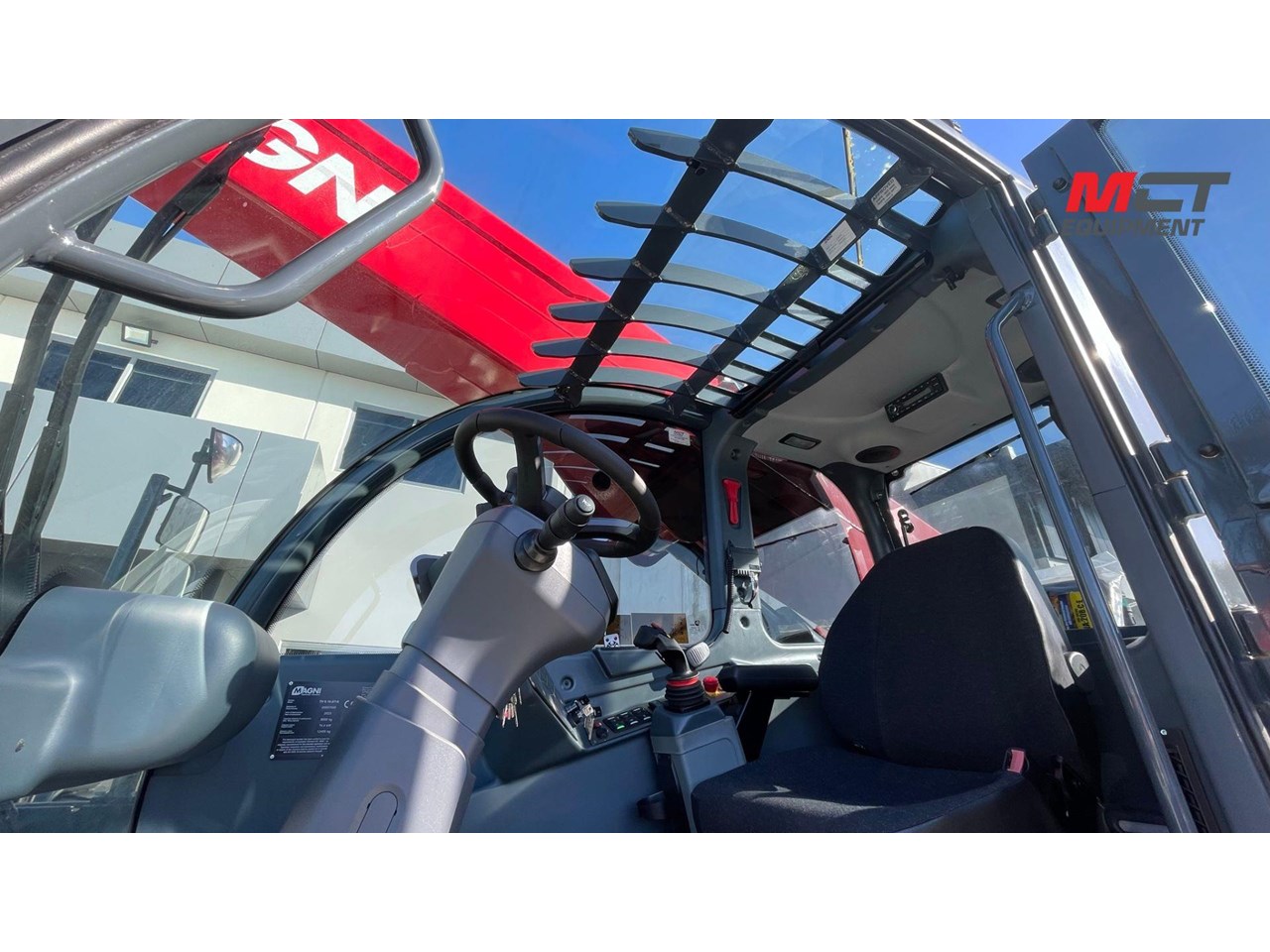

o Full visibility cabin
o Levelling on all tyres
o Telemetrics as standard
o Lifting capacity: 6.000 kg
o Capacity at maximum height: 5.500 kg
o Lifting height: 9,80 m
o Reach: 5,70 m
o Engine: Deutz TCD 3,6 L4 - Tier III
o Rated power: 74,40 kW (101,20 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6,01 m
o Width: 2,00 m
o Ground clearance: 410 mm
o Unladen weight: 12.000 kg
o Travel speed: 35 km/h
o Climate control as standard: Yes
o Automatic accessory recognition: Yes
