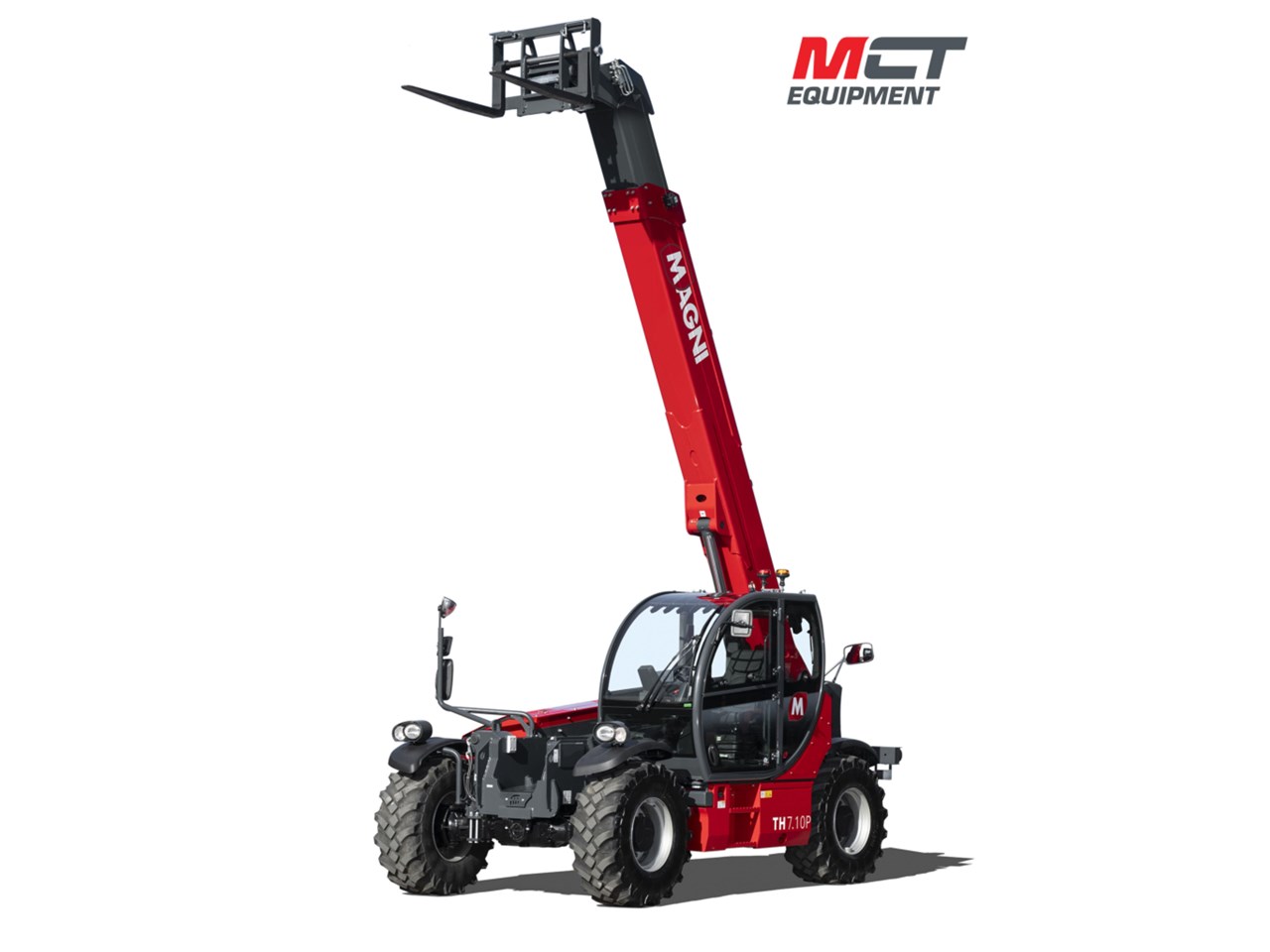

2025 MAGNI TH 7.10P

The TH 7.10P is a fixed telescopic handler especially suitable for light industry.

Powered by a Deutz 74,4 kW , it can safely reach a height of 9.50 m on rough terrain thanks to its 4-wheel drive.

The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Some features:
Lowered design for greater stability
Available with Deutz Stage V and IIIA engines
Available in two engine sizes, 55 kW and 75 kW, to suit your needs
350 bar L/S hydraulic system
4WD

Specifications:
o Stabilizers: None
o Lifting capacity: 7,000 kg
o Capacity at maximum height: 6,000 kg
o Lifting height: 9.50 m
o Reach: 5.90 m
o Engine: Deutz TCD 3,6 L4 EDG - Stage IIIA
o Rated power: 74,40 kW (101,20 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.08 m
o Width: 2.48 m
o Ground clearance: 400 mm
o Unladen weight: 12.000 kg
o Travel speed: 35 km/h
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
