MEASU-MAX 10-138

10-138 Screw Thread Micrometers 0-25mm Metric

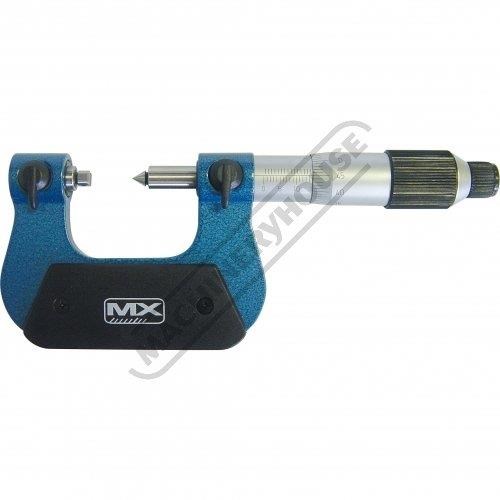

MEASUMAX 10-138 Screw Thread Micrometers 0-25mm Metric
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: Q138

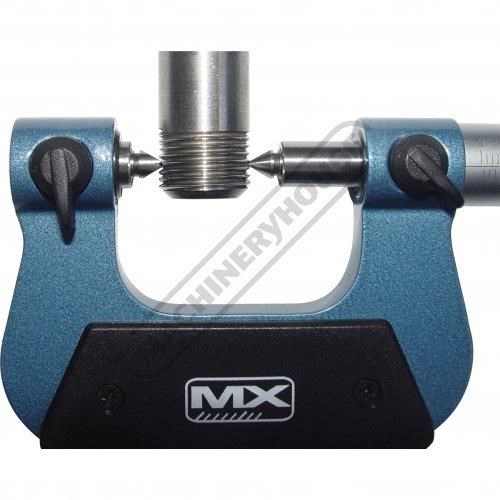

Measumax Screw Thread micrometers are suitable for measuring pitch diameters of Metric, Whitworth and Unified screw threads.

Features:
V-shaped and cone-shaped anvils (interchangeable) are supplied. Dimensions of anvil-tail: ??5x15mm
Ratchet friction thimble
Painted frame rotating spindle
Resolution: 0.01mm/0.0001``

Includes:
- Includes 60?? Anvils
- F0101 0.4-0.5mm pitch
- F0102 0.6-0.9mm pitch
- F0103 1-1.75mm pitch
- F0104 2-3mm pitch
- F0105 3.5-5mm pitch



Specifications:
ORDER CODE: Q138
Measuring Units: Metric
Range (mm / inch): 0 - 25mm
Graduation (mm): 0.01
Accuracy (mm): ??0.004
C (mm): 26
L (mm): 42
Anvils Supplied: F0101 - F0105 (60?? )
