MEASU-MAX 10-1392

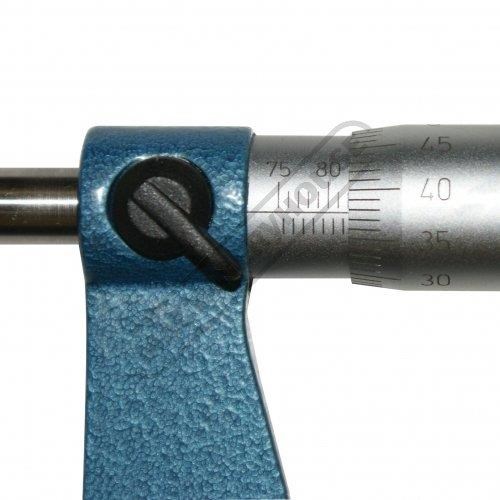

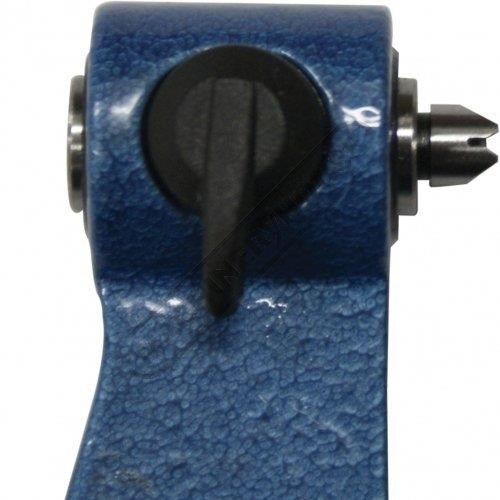

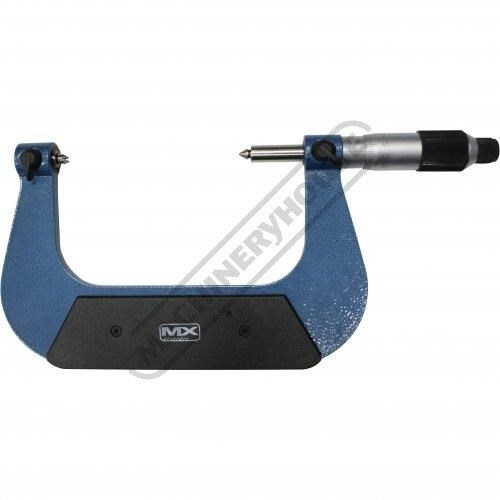

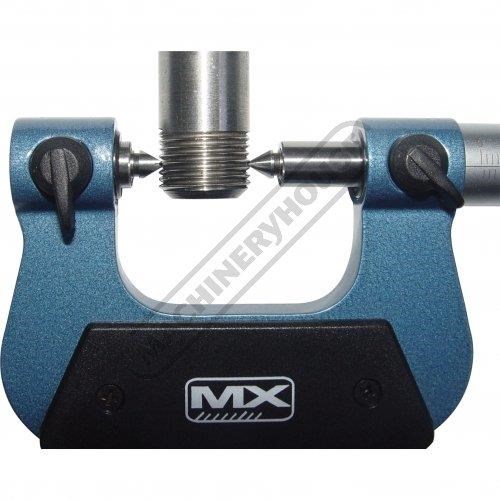

10-1392 Screw Thread Micrometers 75-100mm Metric MEASUMAX 10-1392 Screw Thread Micrometers 75-100mm Metric CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: Q1392 Measumax Screw Thread micrometers are suitable for measuring pitch diameters of Metric, Whitworth and Unified screw threads. Features: V-shaped and cone-shaped anvils (interchangeable) are supplied. Dimensions of anvil-tail: ??5x15mm Ratchet friction thimble Painted frame rotating spindle Resolution: 0.01mm/0.0001`` Includes: - Includes 60?? Anvils - F0102 0.6-0.9mm pitch - F0103 1-1.75mm pitch - F0104 2-3mm pitch - F0105 3.5-5mm pitch - F0106 5.5-7mm pitch Specifications: ORDER CODE: Q1392 Measuring Units: Metric Range (mm / inch): 75 - 100mm Graduation (mm): 0.01 Accuracy (mm): ??0.005 C (mm): 62 L (mm): 118 Anvils Supplied: F0102 - F0106 (60?? ) To Purchase Online Please Visit The Machineryhouse Website & Search For 'Q1392' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
