MEASU-MAX 33-234

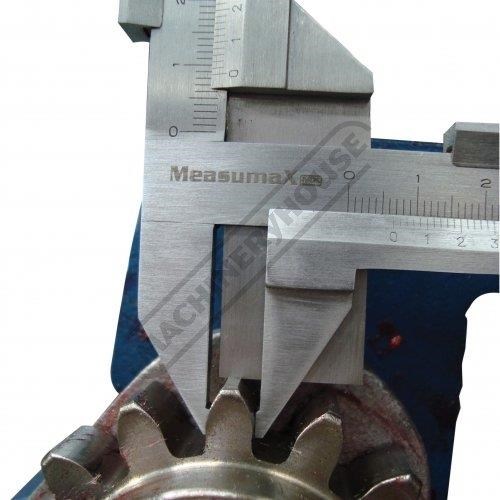

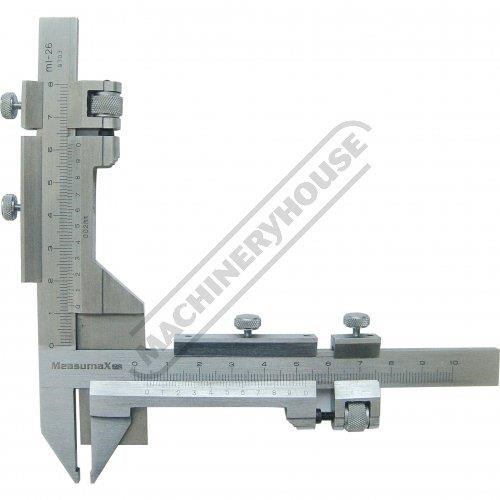

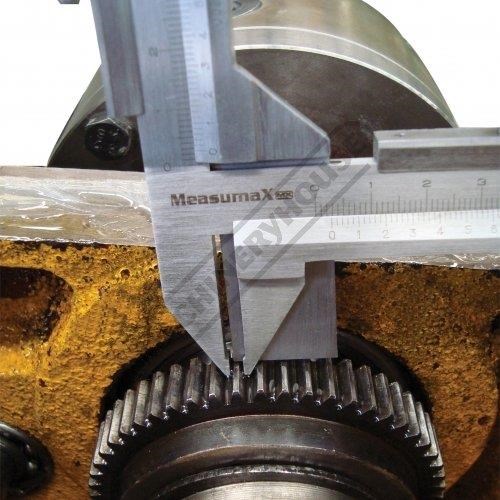

33-234 Gear Tooth Vernier Caliper 1-26 module MEASUMAX 33-234 Gear Tooth Vernier Caliper 1-26 module CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: Q234 Features: One of the benefits using a caliper is that the gear does not have to be removed from the machine The caliper consists of two adjustable verniers that reference two dimensions on the gear and provide a measurement Vertical scale: Measures the depth of the teeth from the top of the pitch line Horizontal Scale: This is used to measure the Chordal Thickness of the gear tooth Specifications: ORDER CODE: Q234 Range: 1 - 26 Module Graduations (mm): 0.02 Accuracy (mm): ??0.02 To Purchase Online Please Visit The Machineryhouse Website & Search For 'Q234' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
