MUTHING MU-H/S 160 REAR & SIDE MULTI PURPOSE FLAIL MOWER

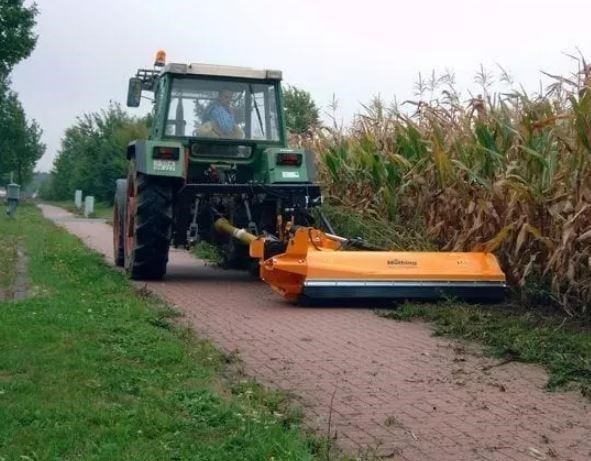

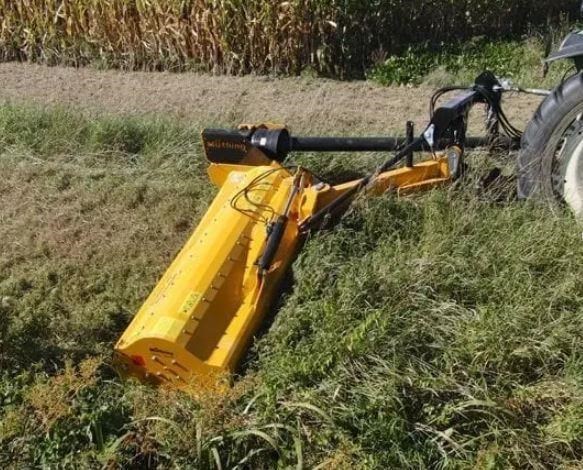

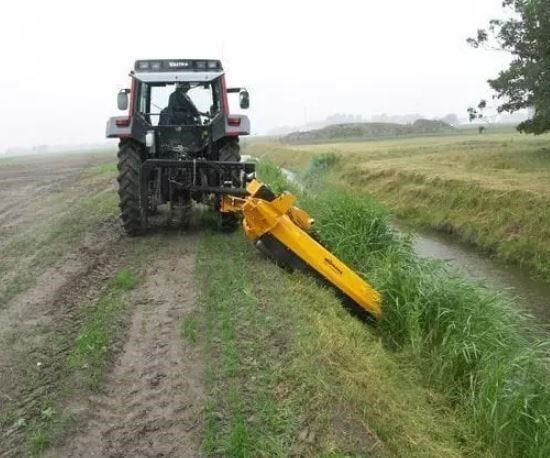

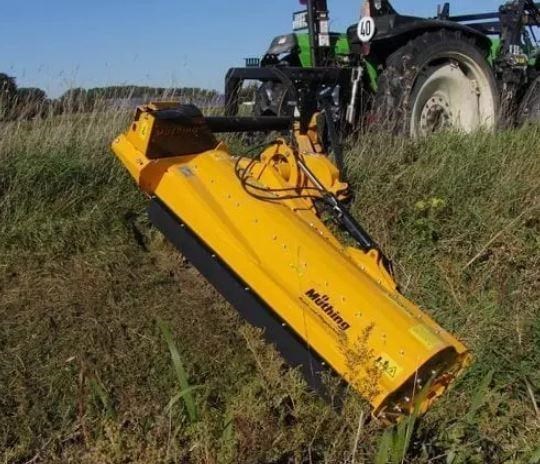

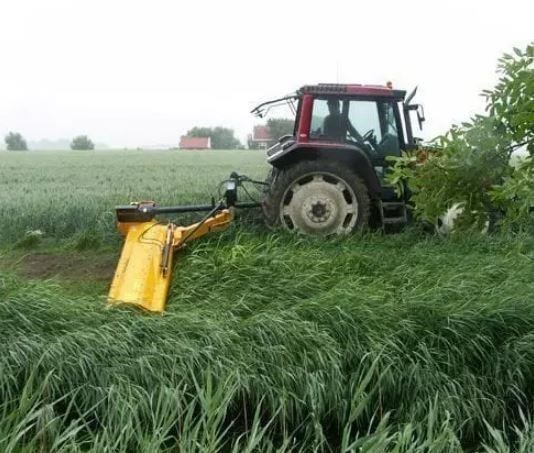

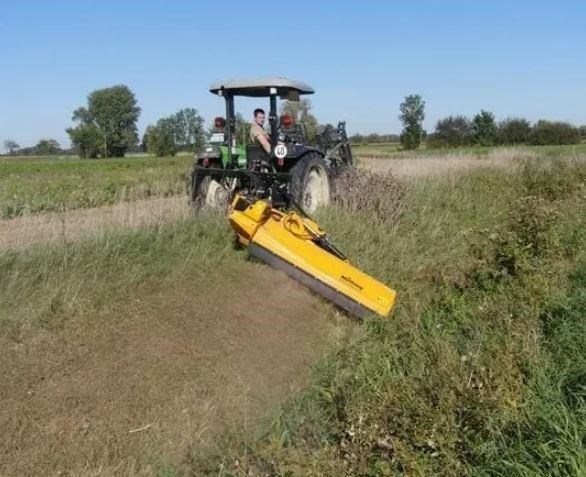

By using the MU-H/S rear and side mounted mulcher you can turn your tractor into a universal mower for verges, embankments and ditches with working widths of up to 4.00 m.

To do this you only need 2 double acting hydraulic valves on your tractor, one of which should have a floating position.

The patented safety breakaway system of the MU-H/S via a mechanical arm is the active collision protection for both tractor and mulcher.

This allows the mulcher to permanently reduce its load upwards, thus reducing the forces bearing on the lower link and the device.

Features:

Manufactured from High Quality QSt/E Steel with Headstock Cat. II for Rear mounting.
Hydraulic parallelogram side shift.
Patented Safety Mechanical Break Away System.
Working angle 90° up to 60° down.
Gearbox with integrated over run clutch for 540 r.p.m.
Belt protection with tension measuring slot.
Hydraulic transport safety lock at an angle of 90° with shut-off tap, (2 double acting spool valves required, at least one with floating position).
Stand.
High tempered M Hammer flails to ensure clean cut and maximum shredding using less power.
Spiral Rotor with specially formed flail lugs to protect against damage from obstacles and internal bearings protecting against dirt, wear and tear.
Roller with internal bearings and well-rounded edges to preserve the soil and turf and to carry the flail, adjustable to different heights.
Wearing skids.
High tempered one way spring steel protection flaps in front of the mower hood.
Optimised distance between the outer rotor circle and the roller guarantees perfect contour following and an even quality of cut.
Purposely designed hood in conjunction with high rotor and cutting speeds and patented removable shredding bar System: Shark Fin spreads the shredded material evenly behind the roller giving an excellent Mulching and Shredding Quality.
P.T.O. shaft and Guarding to ISO Standards.
Carbide Wearing Skids (removable).
Adjustable Vario cutting bar for adjusting the shredding rate.

Options:

Electro-Hydraulic 6/2 distributer with handle and feeler (1 double acting spool valve with floating position required).
Rotor with triple Y-blades (additional charge).
Rotor with M shackle flails (additional charge) (please state exact working width).
Second Patented removable shredding bar system: "Shark Fin".
Hood Wear Plate (factory mounted).


Model:

MU-H/S 140 1400mm 90 HP WW 1400mm Weight 640kg Flails 12
MU-H/S 160 1600mm 90 HP WW 1600mm Weight 670kg Flails 14
MU-H/S 180 1800mm 90 HP WW 1800mm Weight 705kg Flails 16
MU-H/S 200 2000mm 90 HP WW 2000mm Weight 735kg Flails 16
