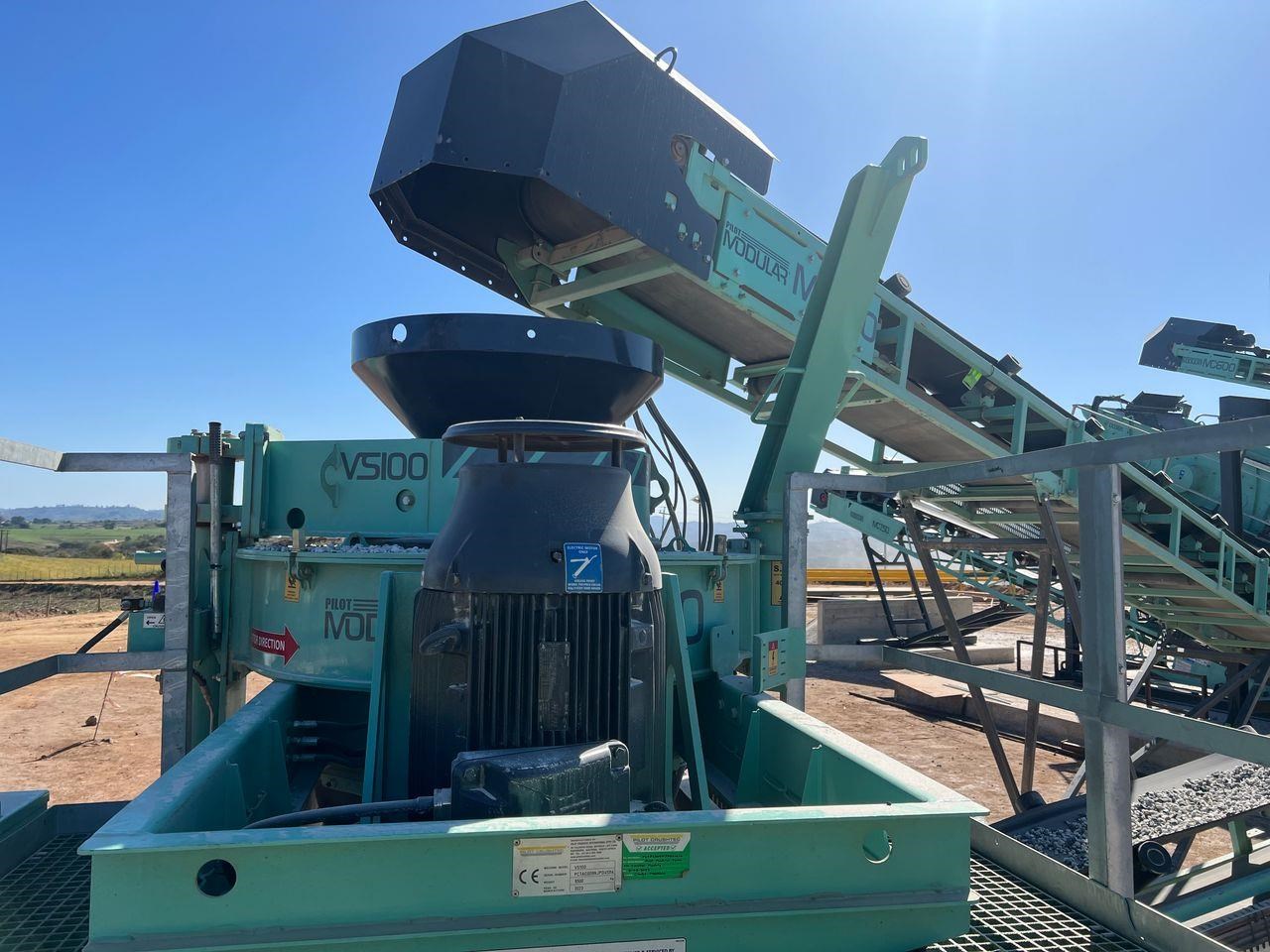

2026 PILOT CRUSHTEC VS100

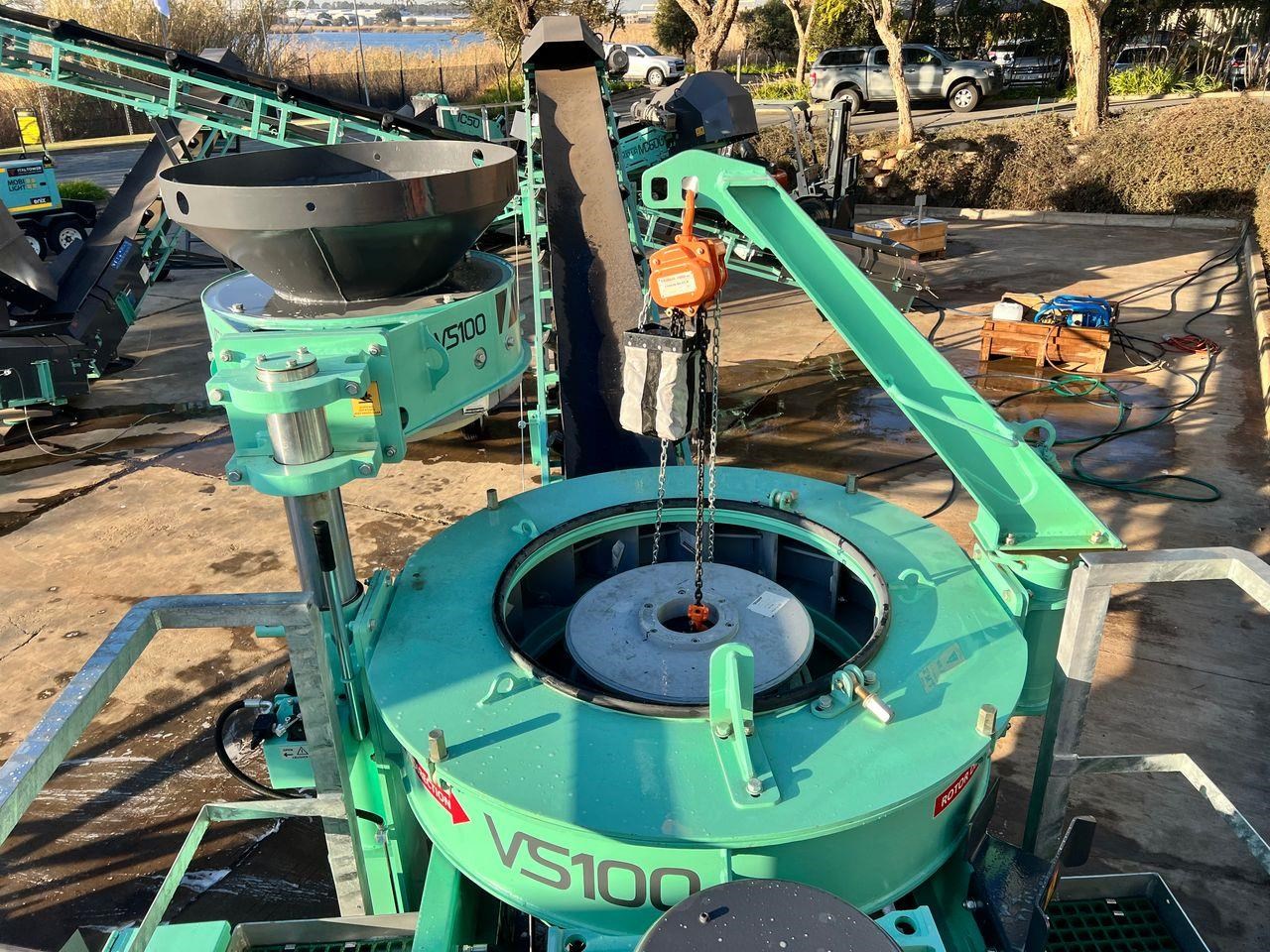

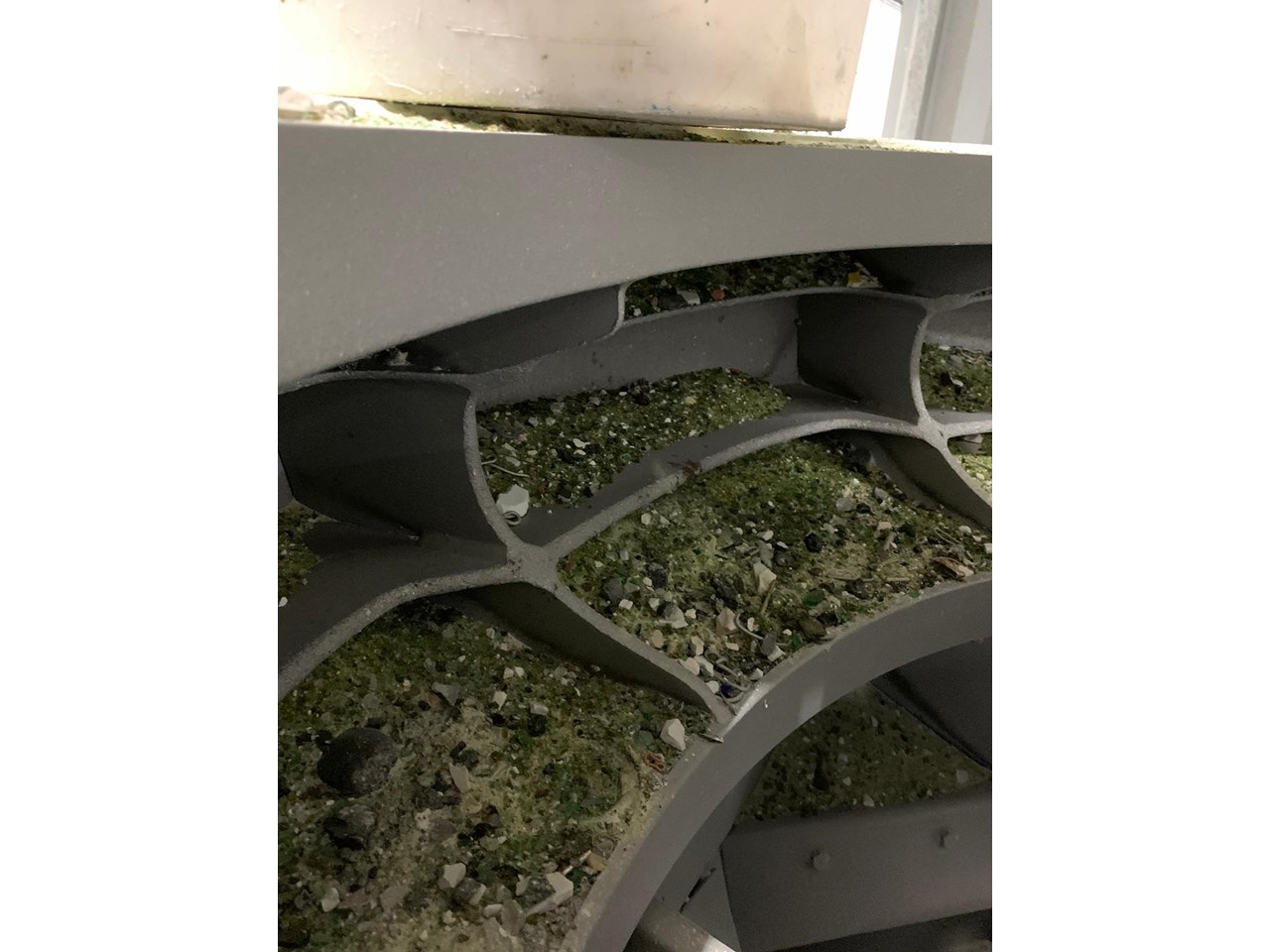

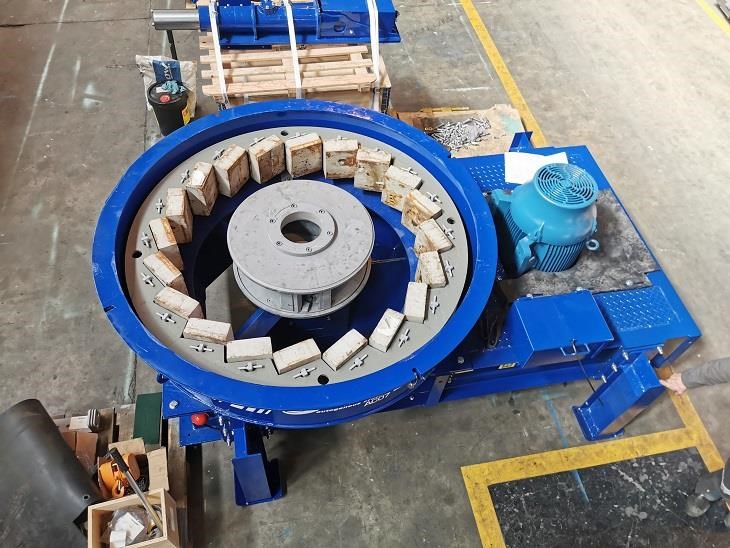

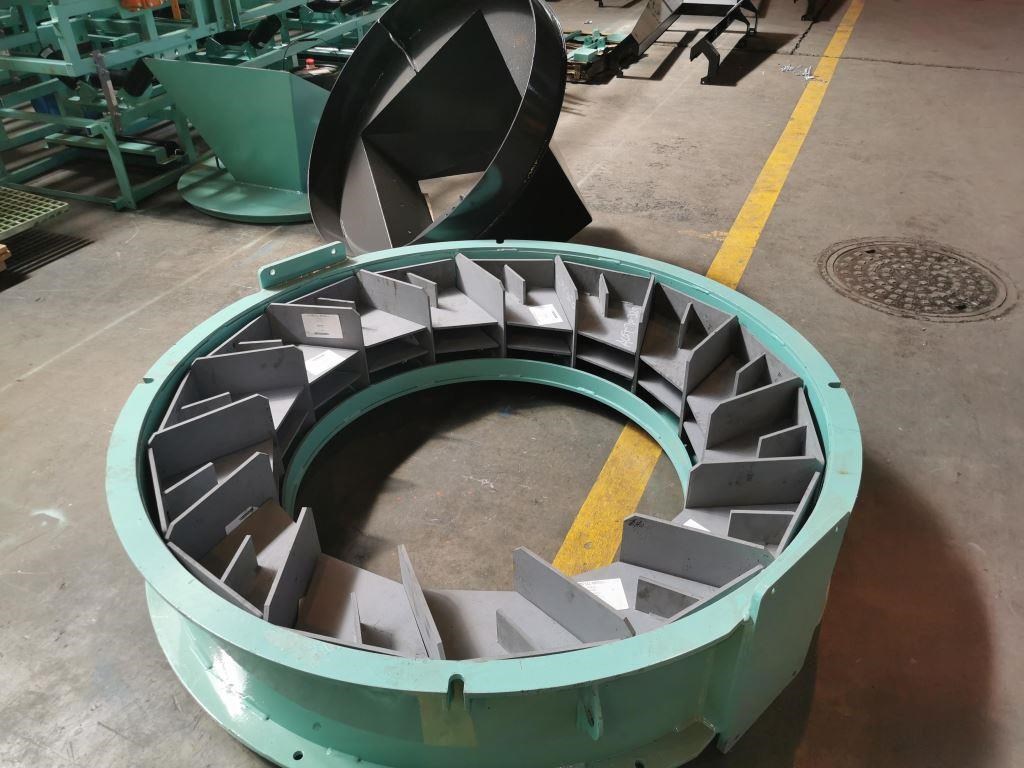

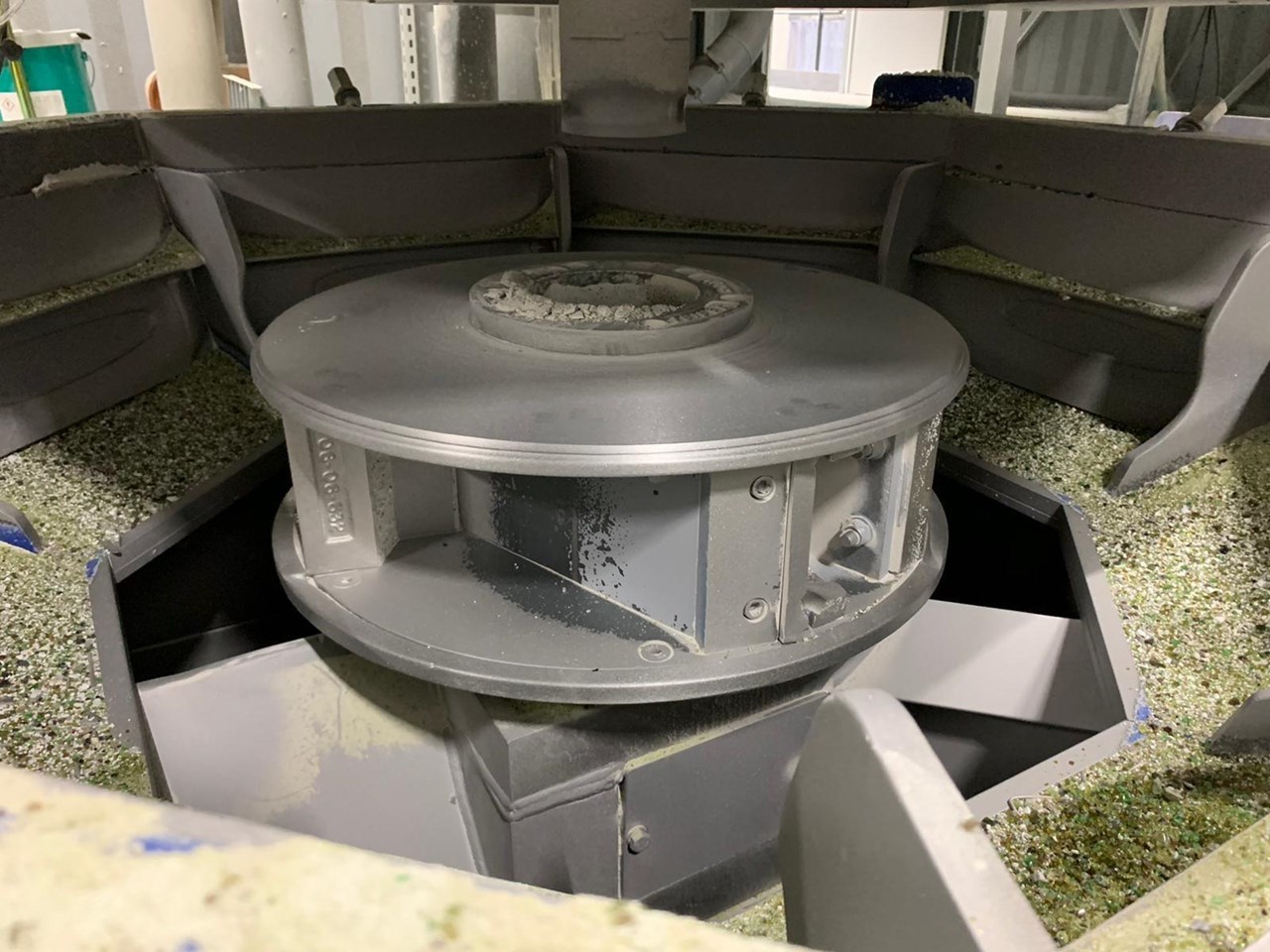

VSI Impact Crusher | up to 100TPH | Vertical Shaft | The VS100 is a leader in rock-on-rock vertical shaft crushing technology. The VS100 is ideal for use in construction, quarrying, mining and recycling industries for producing high quality cubically shaped aggregate, industrial sand, fines in mineral processing, recycling of building materials and recycling of glass. The VS100 uses a modular rotor mounted on a vertical shaft to provide the centrifugal force which starts the reduction process. Material fed into the crusher is centralised before entering the spinning modular rotor. The rotor then accelerates the stone to velocities up to 80 metres per second and continually discharges this accelerated stone into a stone filled chamber. The stone collides with other stones already in the crushing chamber and on the rock wall and fractures along natural faults throughout the rocks or minerals. These continuous collisions provide the crushing action within the chamber resulting in a consistently cubical, high first-pass product yield and produces fines in a balanced particle size distribution. The use of autogenous rock-on rock crushing principles reduces metal crushing parts and reduces wear costs to minimum levels. Technical Specifications: - 600mm Rotor - Maximum feed size of 25mm (passing through square mesh) - 45 or 55kW motor - Throughput between 10-55tph (material dependent) - 700mm Rotor - Maximum feed size of 35mm (passing through square mesh) - 75, 90 or 110kW motor - Throughput between 10-100tph (material dependent) - Hydraulic lifting maintenance lid - Jib crane for ease of maintenance - High chrome liners with tungsten carbide tips Dimensions: - 3420mm wide x 4080mm long x 3270mm high Exclusions: Freight, Installation, Electrical works 12-month warranty provided by seller
