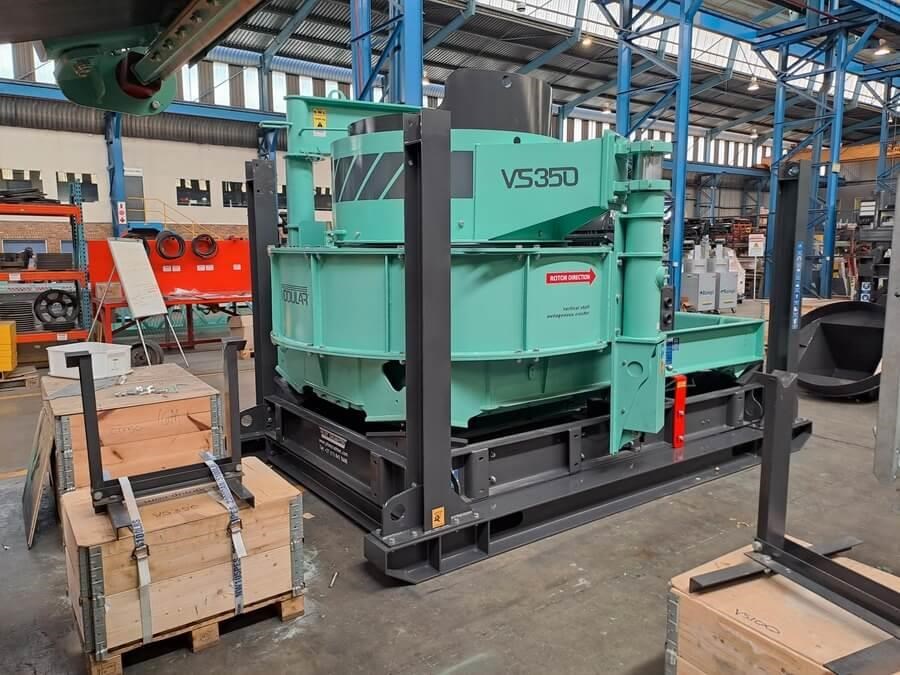

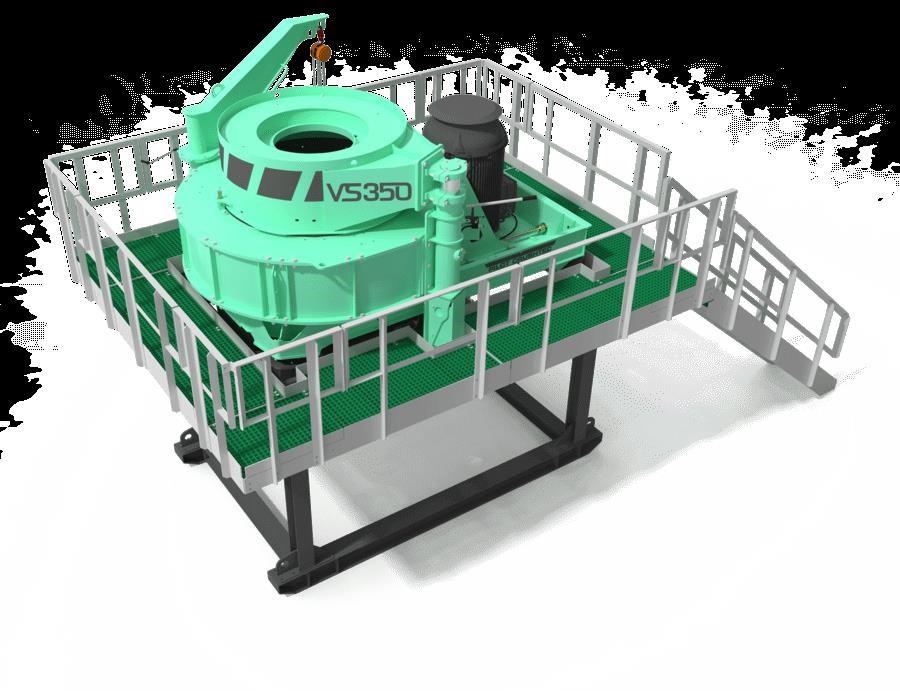

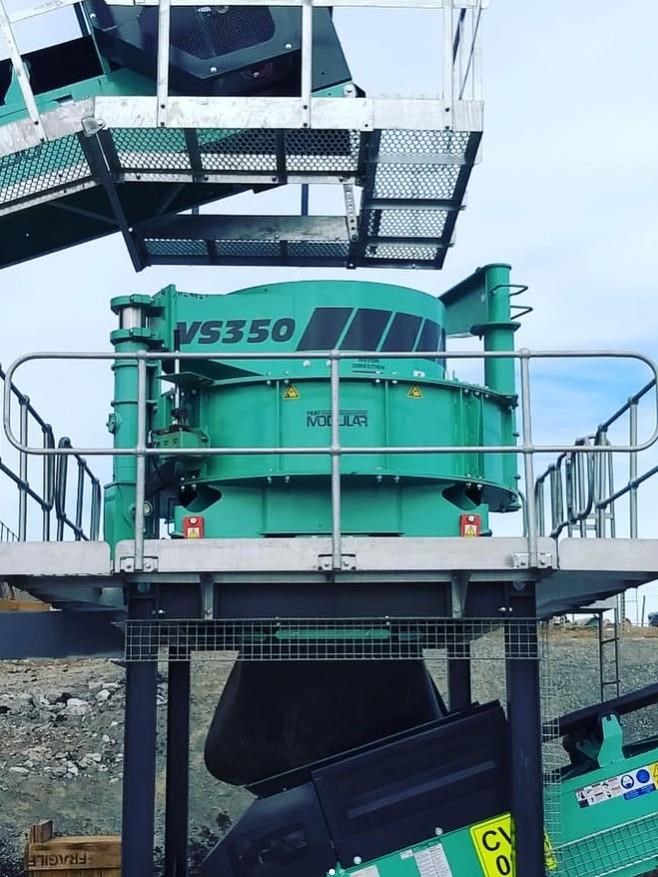

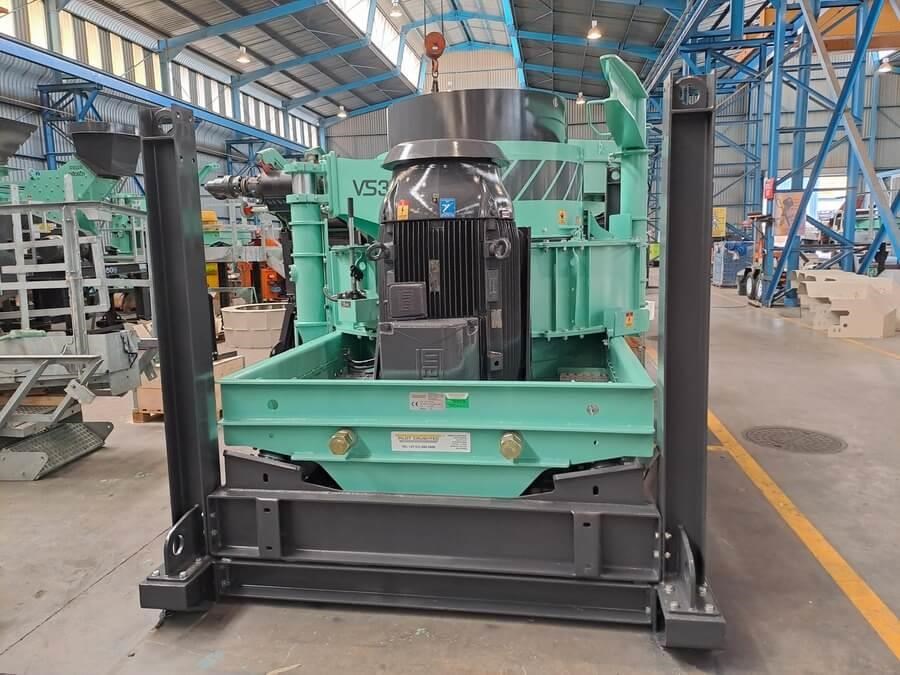

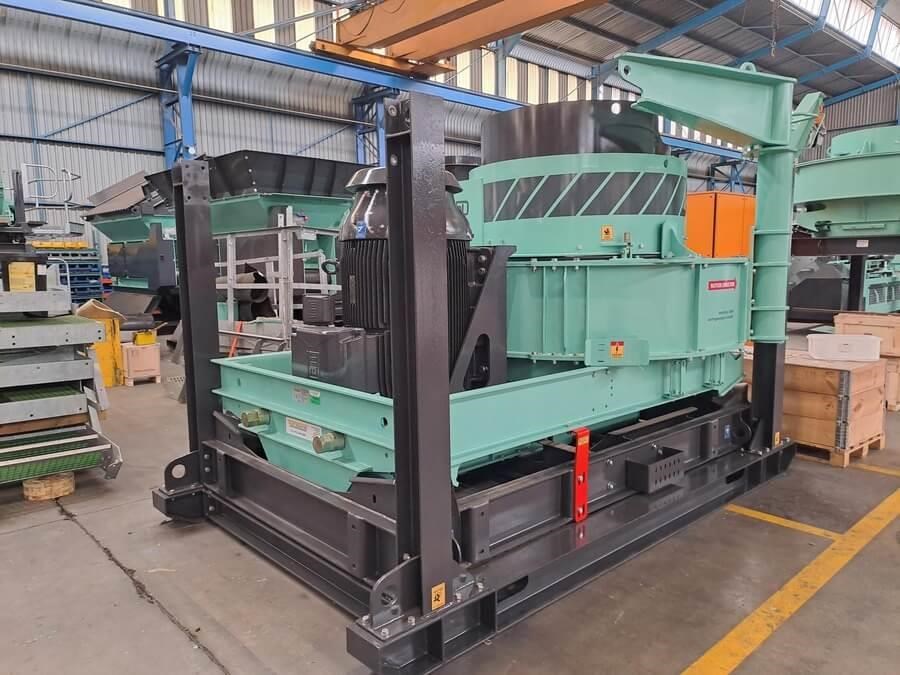

2026 PILOT CRUSHTEC VS350

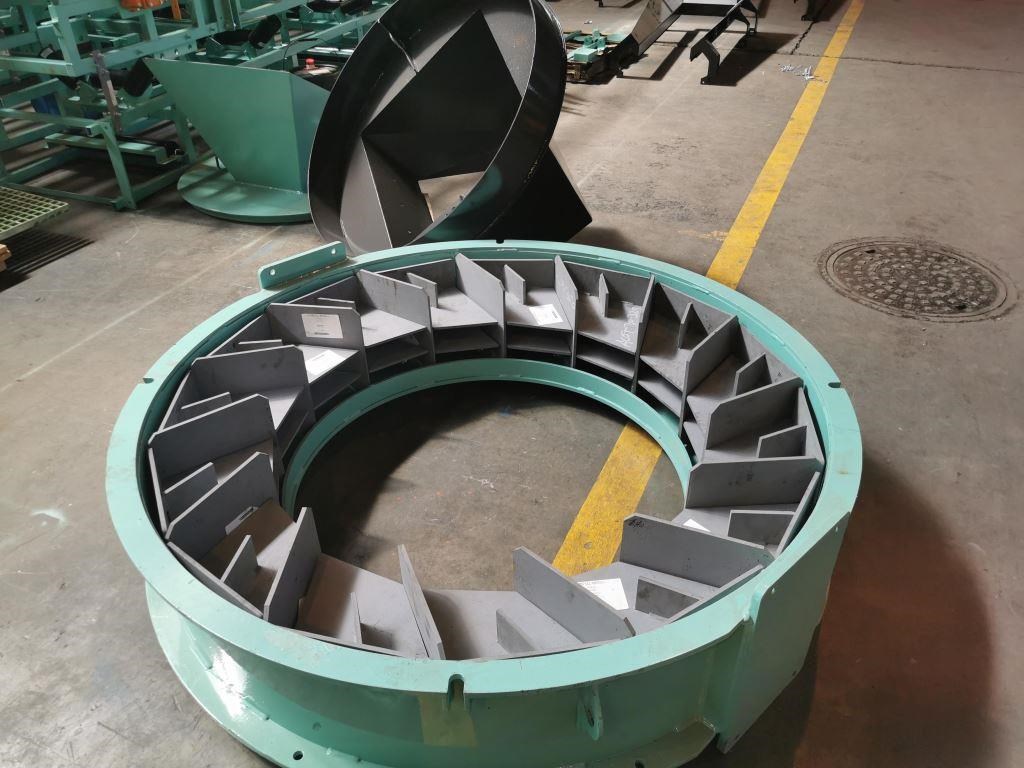

VSI | Impact Crusher | up to 280TPH | Vertical Shaft | The VS350 is a leader in rock-on-rock vertical shaft crushing technology. The VS350 is ideal for use in construction, quarrying, mining and recycling industries for producing high quality cubically shaped aggregate, industrial sand, fines in mineral processing, recycling of building materials and recycling of glass. The VS350 uses a modular rotor mounted on a vertical shaft to provide the centrifugal force which starts the reduction process. Material fed into the crusher is centralised before entering the spinning modular rotor. The rotor then accelerates the stone to velocities up to 80 metres per second and continually discharges this accelerated stone into a stone filled chamber. The stone collides with other stones already in the crushing chamber and on the rock wall and fractures along natural faults throughout the rocks or minerals. These continuous collisions provide the crushing action within the chamber resulting in a consistently cubical, high first-pass product yield and produces fines in a balanced particle size distribution. The use of autogenous rock-on rock crushing principles reduces metal crushing parts and reduces wear costs to minimum levels. Technical Specifications: - 3 Port or 6 Port Rotors - Maximum feed size up to 50mm and dependent on rotor option - Throughput between 50-280tph (material dependent) - 160-315kW motor - Hydraulic lifting maintenance lid - Jib crane for ease of maintenance - High chrome liners with tungsten carbide tips Dimensions: - 4815mm wide x 6210mm long x 4240mm high Exclusions: Freight, Installation, Electrical works 12-month warranty provided by seller
