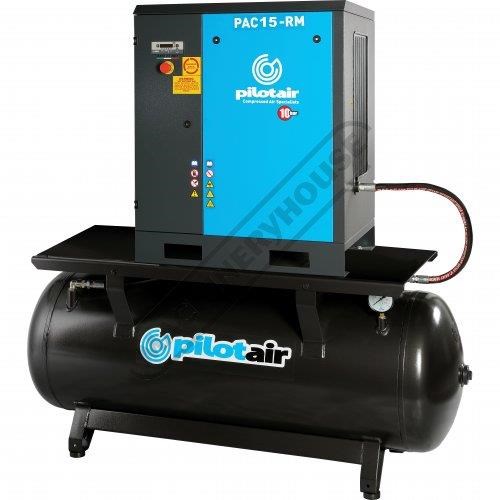

PILOT PAC15-RM

PAC15-RM Rotary Screw Pilot Air Compressor Italian Designed & Manufactured Air End 1848L/Min. 65.3CF PILOT AIR COMPRESSORS PAC15-RM Rotary Screw Pilot Air Compressor Italian Designed & Manufactured Air End 1848L/Min. 65.3CFM @ 10 Bar CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: C5381 The PAC series: The choice for your workshop or industrial requirements all with Pilot Air???s Legendary reliability & long life value Features: ETMII - Installed on models from 4 to 15kW Controller with multi-function backlight display the menu is alphanumeric type. In the main screen are displayed: - Working pressure (offload/load) - Oil temperature - Total working hours - On-load working hours - Compressor status led (stand-by offload load) - Hours remaining before maintenance - Four maintenance timers (air cartridge oil oil filter oil separator) - Automatic re-start after power failure - Cooling fan temperature settable - Compressor remote start settable - Integrated sequence phase relay - Easily accessible for service & maintenance Remote monitoring (on demand) GSM/GPRS/Ethernet/WiFi module (for online compressor status remote assistance connection with PC Smartphone and Tablet connection between neighbour compressors) Master/slave function It is possible to connect up to 4 compressors for managing distribution of the workload in such a way to equalize the hours dynamically changing set pressures of the various compressors Italian Designed & Manufactured Air End - High efficiency and reliability - Lower air end speeds mean reduced wear and longer life - Designed for continuous operation without a drop in performance Poly ??? V Belt Driven - Long life and minimum maintenance Simple Maintenance - Easily accessible internal components ensure efficient maintenance Cooling System - Thermally controlled independent radial fan ensures constant air/oil temperatures even during heavy working conditions F.A.D. as per ISO1217 @ 7.5 - 9.5 Bar - Sound level measured in accordance with PNEUROP / CAGI Standards. - Technical data conforms to +/- 5%. Pilot Air reserves the right to modification without notice for design and technical improvements Warranty: 2 years on compressor pump 1 year on all other components. Specifications: ORDER CODE: C5381 MODEL: PAC15-RM Free Air Delivery (LPM / CFM): 1848 / 65.3 Air Displacement (LPM / CFM): ~ Includes Air Dryer System (Yes / No): No Standard Operating Pressure (bar): 10 Air Receiver Tank (Litre): 268 Noise Level (dBA): 70 Transmission Drive (Type): Belt Drive Motor power (kW / hp): 15 / 20 Motor Voltage (V / Amps): 415 Dimensions (L x W x H) (mm): 1500 x 650 x 1650 Nett Weight (kg): 300 To Purchase Online Please Visit The Machineryhouse Website & Search For 'C5381' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
