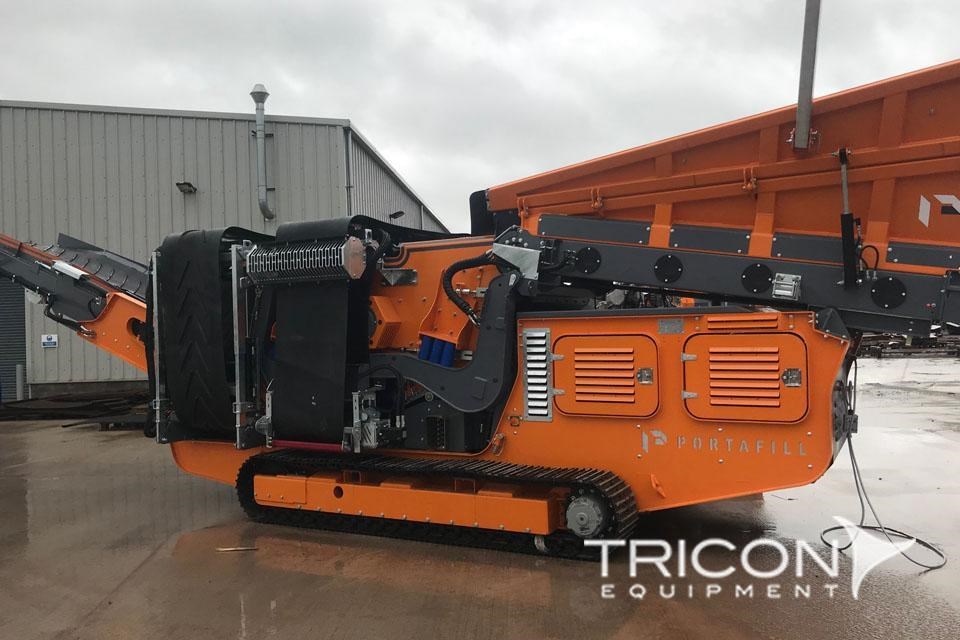

2021 PORTAFILL MR 5 RECLAIMER SCREEN

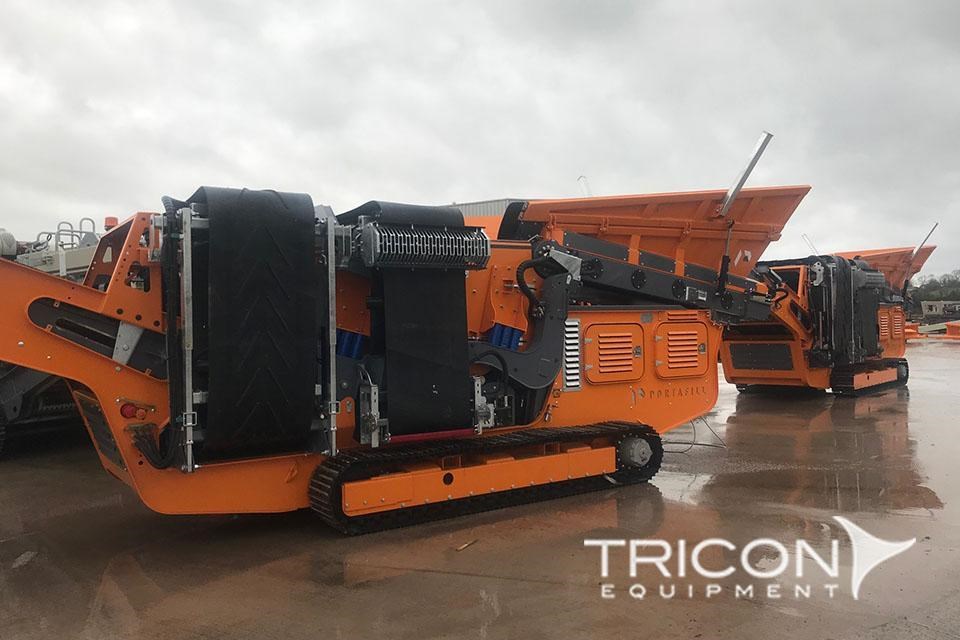

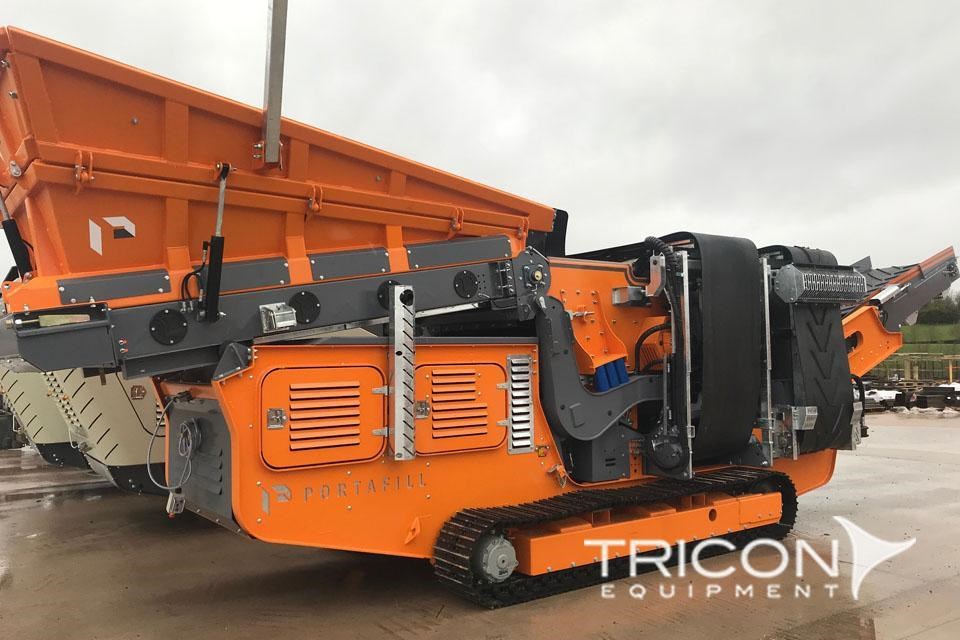

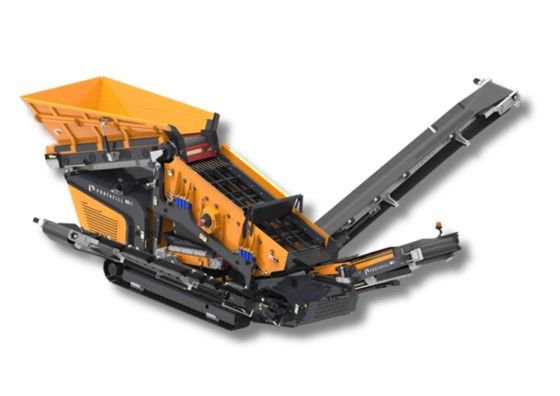

2021 PORTAFILL MR-5 TWIN DECK RECLAIMER SCREEN

The Portafill MR-5 is designed with heavy-duty screening applications in mind. Small enough to fit inside a container for transport but strong enough to withstand the toughest of materials. High performance and excellent reliability are key features of this machine.

FEATURES
- Highly aggressive screen action for excellent performance in difficult materials
- Folding wing conveyors for transport
- 2 in 1 oversize product conveyor for optionally mixing oversize and midsize product
- Screen Box Type: Bolted, 2 Deck, 2 Bearing, High Speed, High Vibration Screen
- Overall Screen Box Size: 2900mm (9'6") x 1200mm (4')
- Maximum Feed Size: 400mm (depending on material)

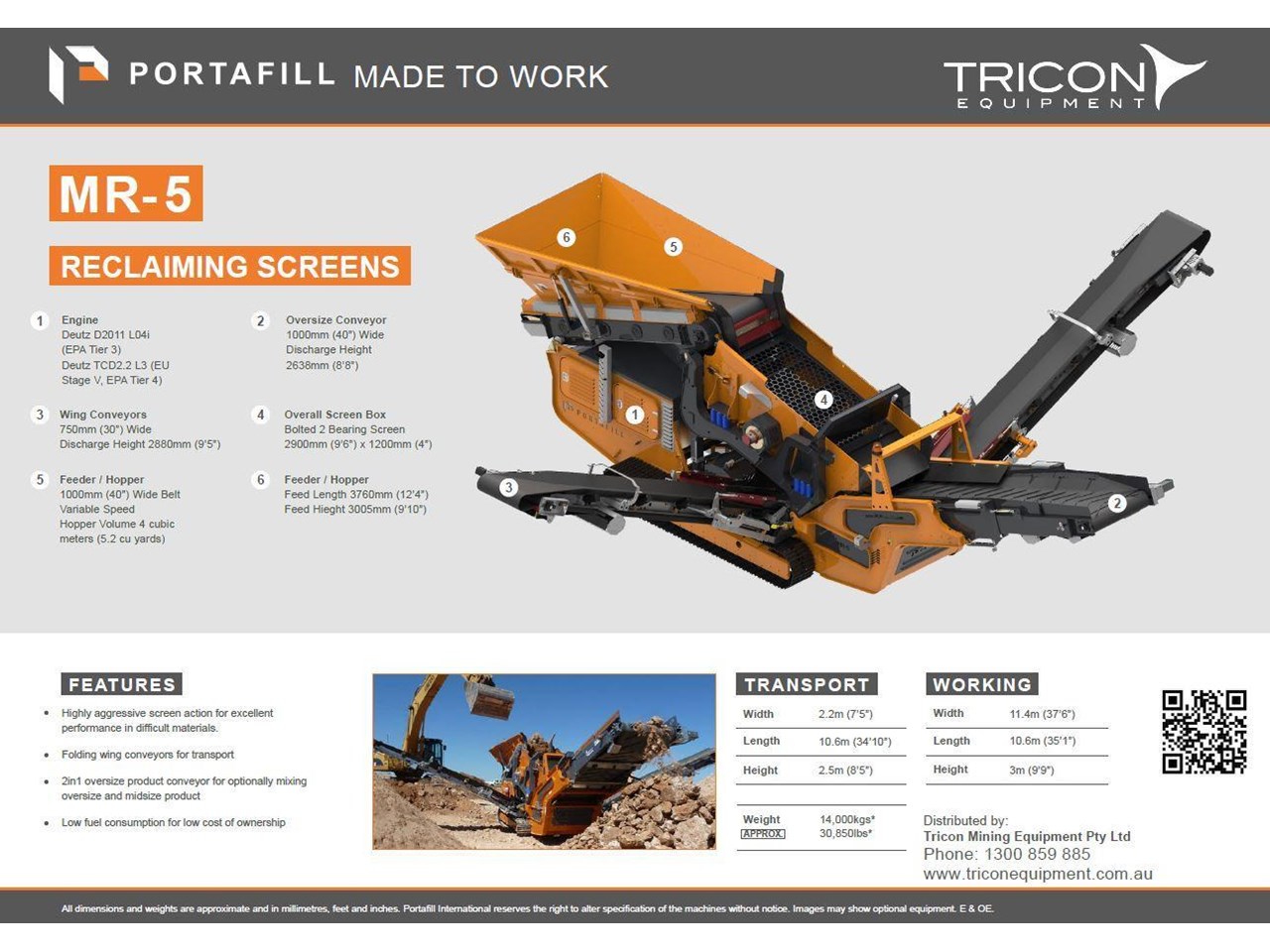

SPECIFICATIONS
- Feeder Conveyor Width: 1000mm (40")
- Feeder Conveyor Speed: Variable Speed

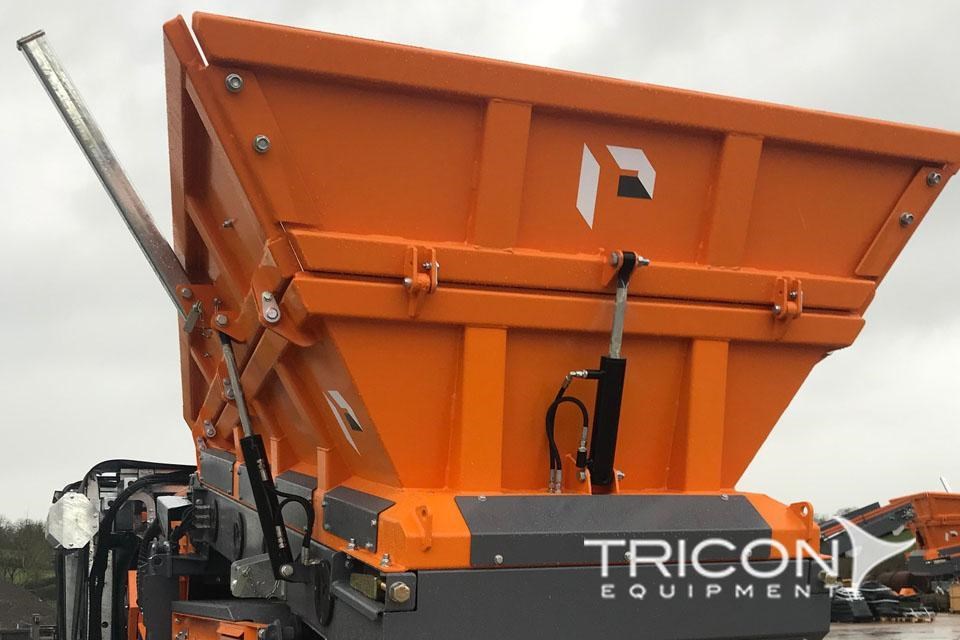

- Hopper Sides: Hydraulically Lowering Hopper Sides for Transport
- Hopper Volume: 4m3 (Approx.)

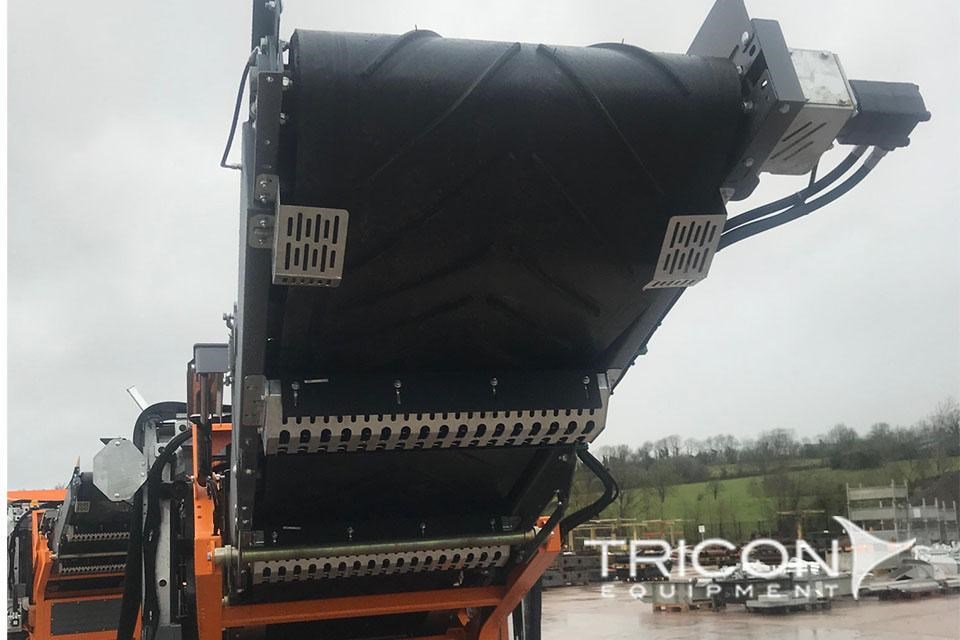

- Belt Width: 750mm (30") Wide Chevron Belt
- Discharge Height: 2880mm (9'5")
- Belt Speed: Variable Speed

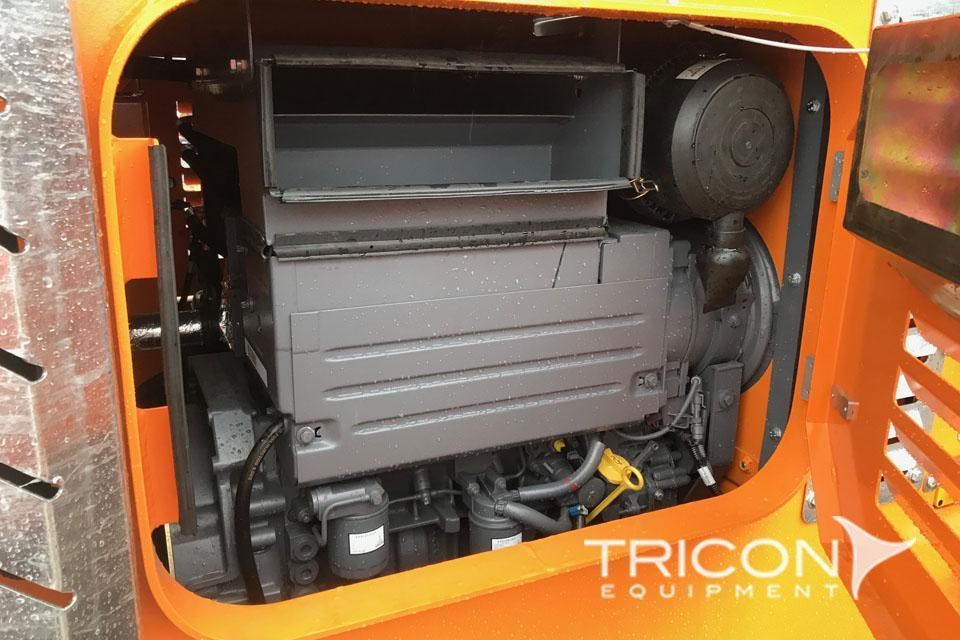

- Engine: Deutz D2011 L04i (EPA Tier 3) 36kw (49HP)
- Engine: Deutz TCD2.2 L3 (EU Stage V, EPA Tier 4) 55kw (74HP)
- Engine: Deutz TD2.9 L4 (EU Stage V, EPA Tier 4) 55kw (74HP)
- Fuel Tank Capacity: 100L

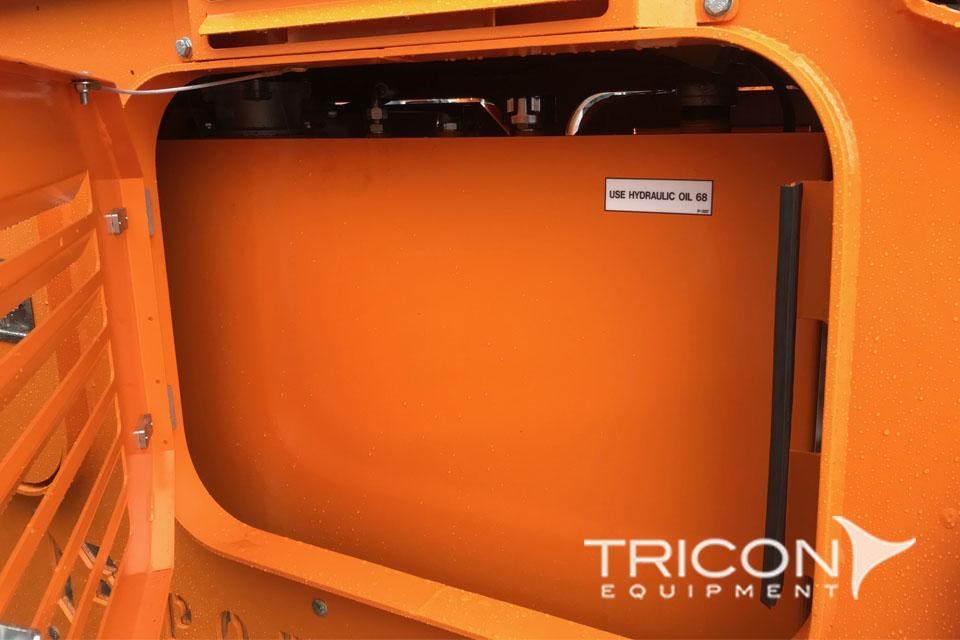

- Hydraulic Tank Capacity: 300L
