2020 PORTAFILL MR-2 RECLAIMER SCREEN

2020 PORTAFILL MR-2 RECLAIMER SCREEN

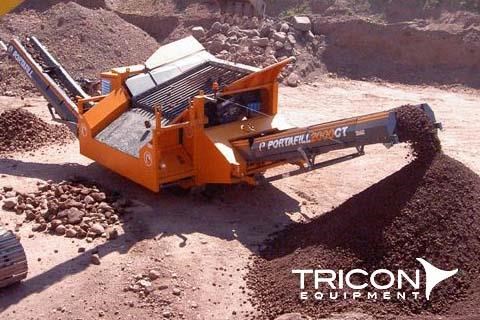

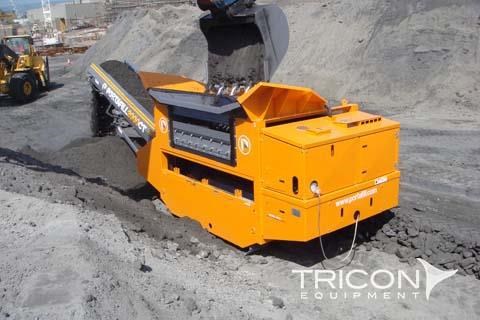

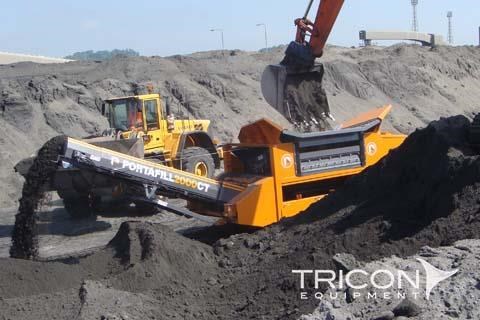

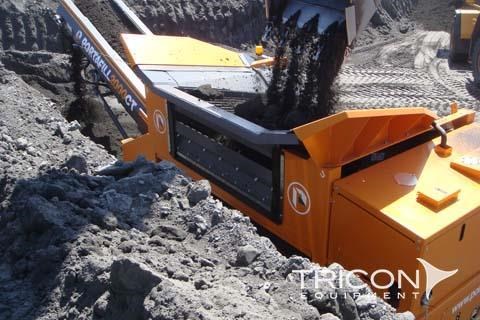

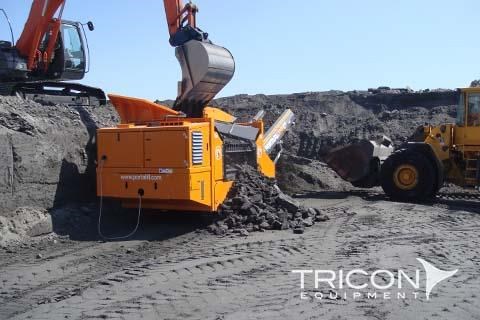

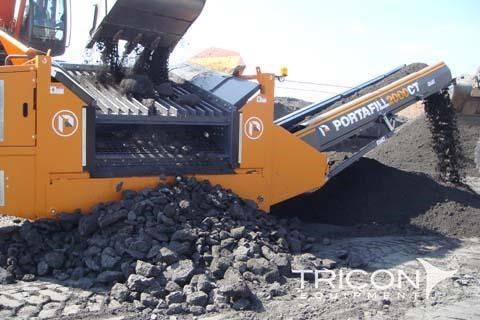

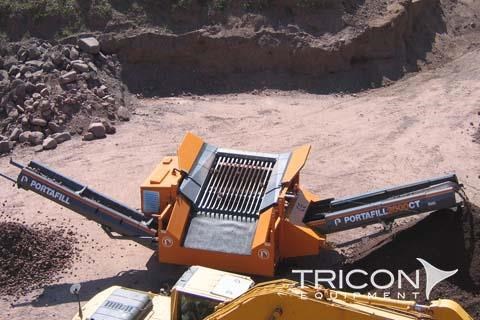

The Portafill MR-2 is an easy to operate, compact, portable and highly reliable screening plant. Specifically designed for ease of use, with a small to a medium-sized contractor in mind. The MR-2 can be operational moments after arriving on site.

FEATURES

• Tracked undercarriage for ease of movement
• Wired or radio-tracking control
• Heavy-duty two-deck grizzly
• Wide main conveyor for high output
• Simple operation
• Optional middle product conveyor

SCREEN BOX

• Screen Box Type: Bolted, 2 Deck, 2 Bearing Screen
• Overall Screen Box Size: 2780 (92) x 2475 (82) Screen Box

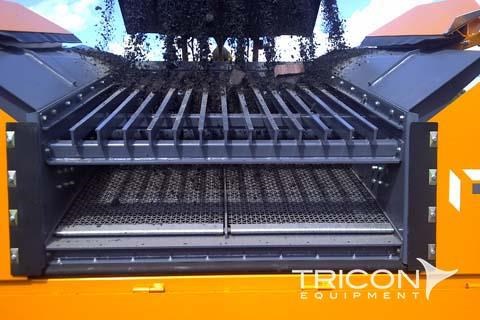

• Top Deck Options: Tapered Grizzly, Finger Screen and Top Deck Frame with Punch Plate or Woven Mesh
• Maximum Feed Size:400mm (depending on material)

CONVEYOR

• Belt Width: 900mm (36)
• Discharge Height: 2617mm (86)
• Folding Mechanism: Hydraulic folding for transport
• Belt Type: Smooth (Fully Skirted)

POWER

• Engine: Deutz D2011 L04I (EPA Tier 3) 36kw (49HP)
• Engine: Deutz TCD2.2 L3 (EU Stage V, EPA Tier 4) 55kw (74HP)
• Fuel Tank Capacity: 100L
• Hydraulic Tank Capacity: 250L

SECOND CONVEYOR

• Belt Width: 600mm (24)
• Discharge Height: 2443mm (8)
• Folding Mechanism: Hydraulic folding for transport
• Belt Type: Smooth (Fully Skirted)

TRANSPORT

• Width: 2.3m (76)
• Length: 6m (1911)
• Height: 3m (99)
• Weight kgs (Approx): 10,000kgs
• Weight lbs (Approx): 22,000lbs
