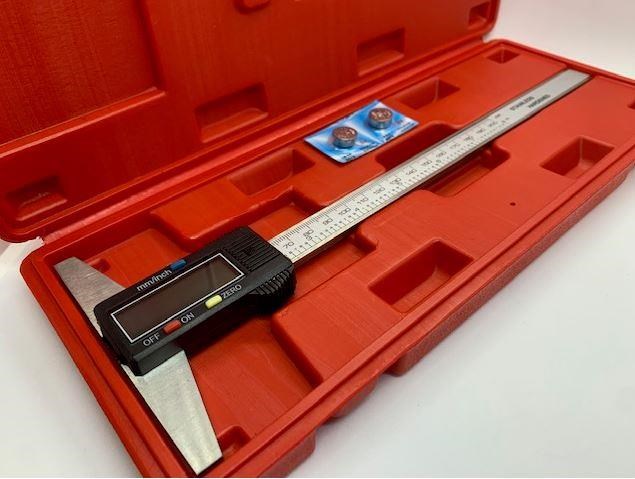

STEELMASTER DIGITAL DEPTH GAUGE - 0 ~ 200MM RANGE. DUAL MEASUREMENTS.

Digital Depth Gauge - 0 ~ 200mm Range. Dual Measurements.
Description.
Precise depth measurements are easy with these Digital Depth Gauges. Choose either 150mm or 200mm ranges, both feature inch/millimeter conversion, zero set button, 0.0005 resolution and stainless steel construction. Model H8136 includes a plastic foam lined case.

Features
measuring range: 0 ~ 200mm
precise depth measurements are easily achieved with our depth gauges
stainless steel body offering both metric and imperial conversion with a 0.01mm resolution
product ordering code: 50+0164

Specifications:
Maintenenace:
Measuring Range: 0-200mm /0-8"
Resolution: 0.01mm / 0.0005"
Measuring Speed: 1.5m/sec, 60"/sec
Measuring System: Linear capacitive measuring system
Display: LCD Display
Power: 1 x LR44 ( 1.5v ) Battery
Working Temp: 5*C - 40*c

Operating Instructions:
Open battery Cover on the top to install you LR44 battery with Positive side facing out
Loosen the locking Screws

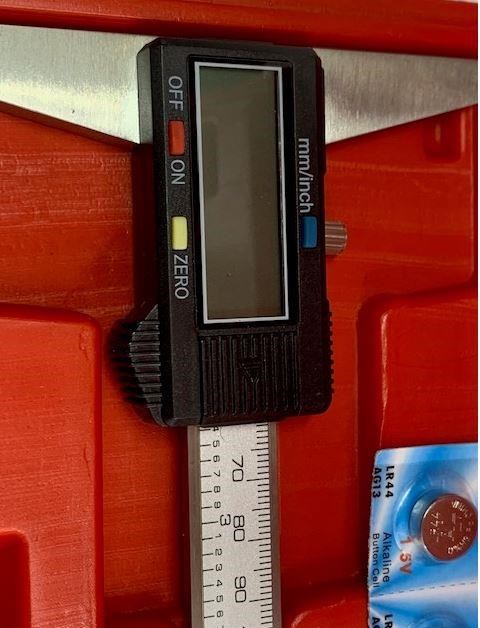

Switch unit on with the "on" button, the select the unit system need by pressing Inch/Metric button
Apply normal measuring pressure on slider to close the external jaw, then press Zero button to reset the display to zero
Your Digital depth Gauge is now ready to use

Maintenance:

Wipe clean all the measuring Faces and Caliper bar after each use to maintain optimum performance of Caliper
When not in use remove battery to avoid damage
Always place back in its case for storage
If Flashing digits are displayed it means the battery is low and will need to be replaced
Never apply and electric pressure on caliper for fear of damaging its internal chip
