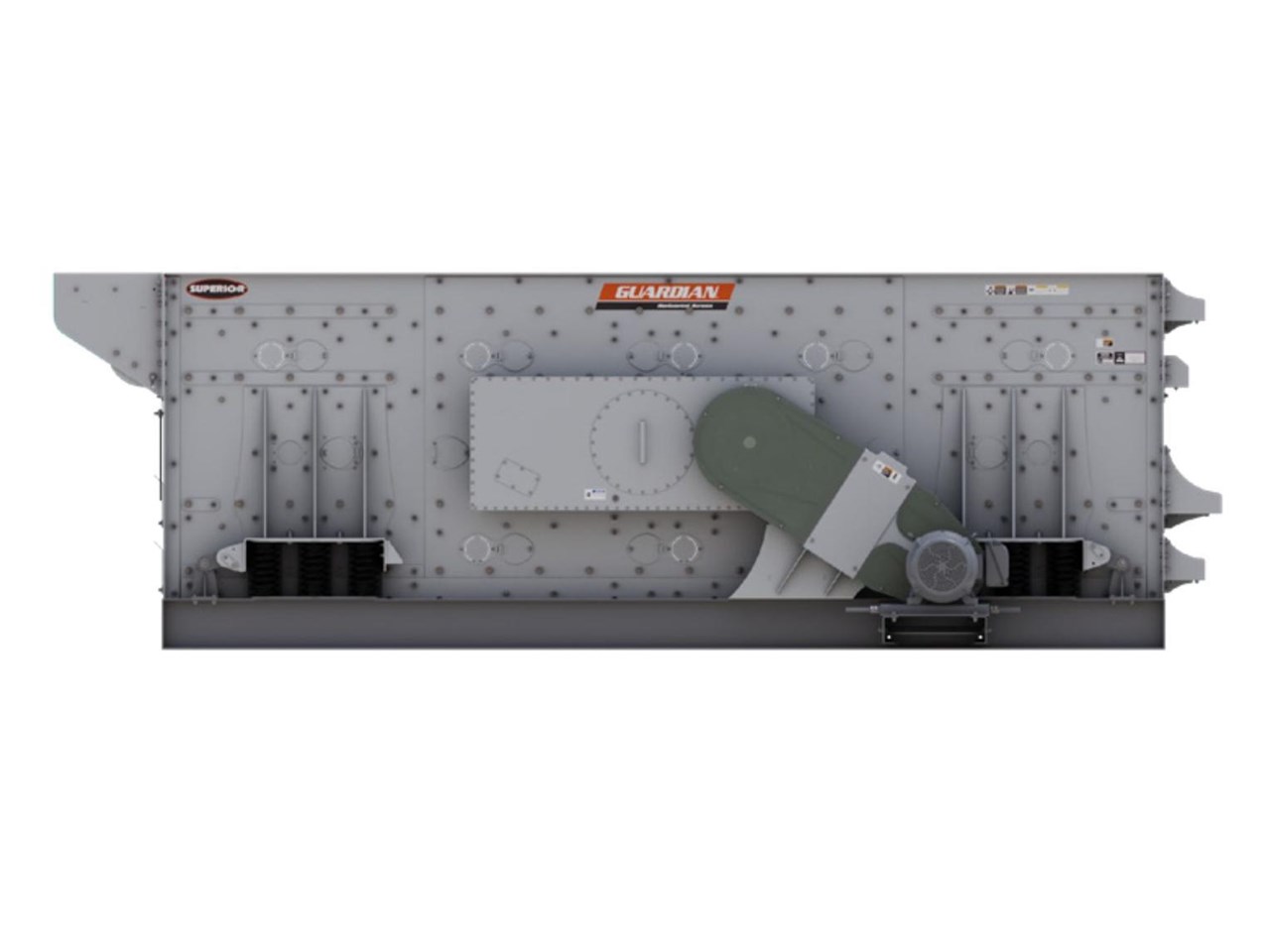

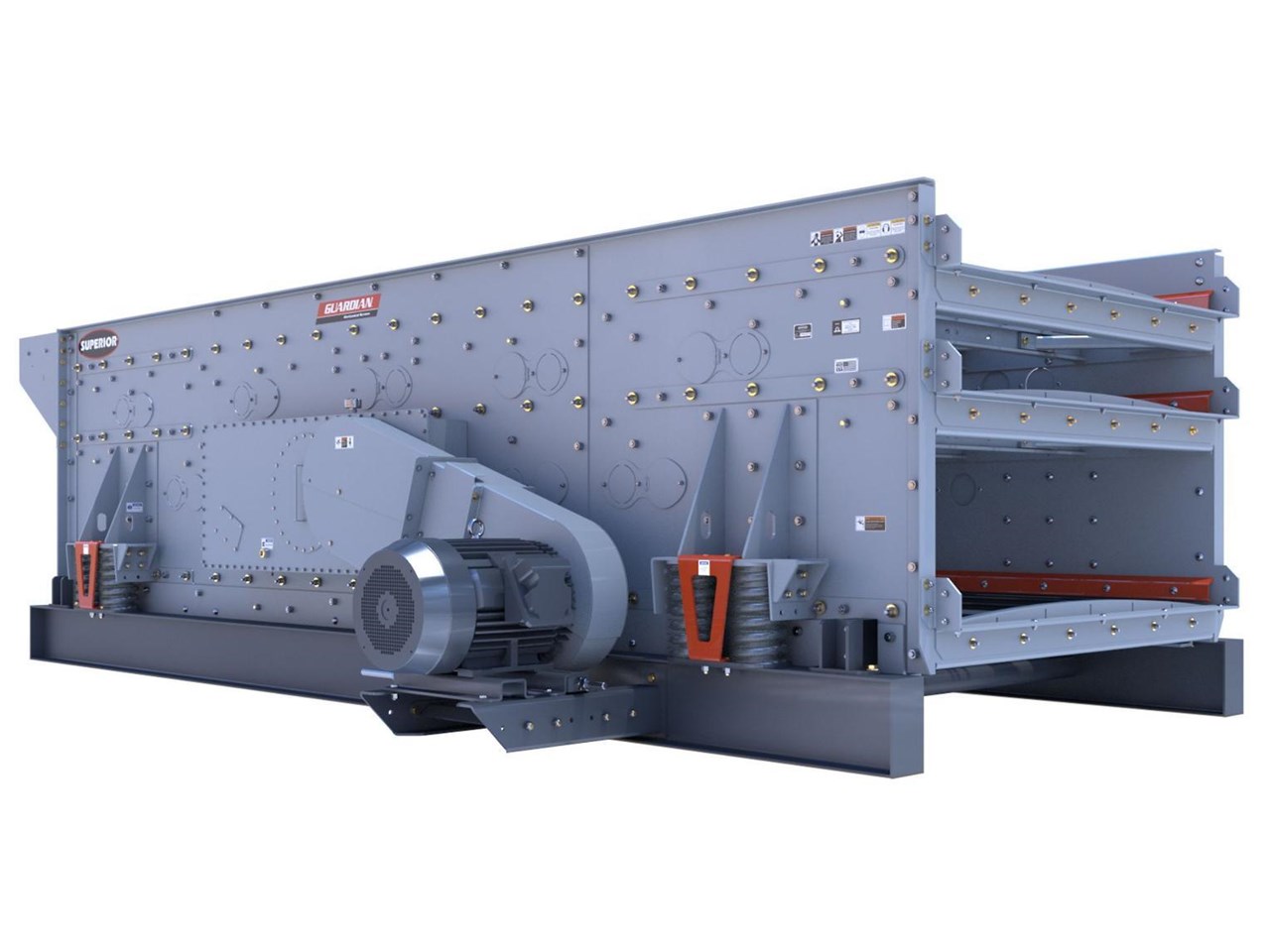

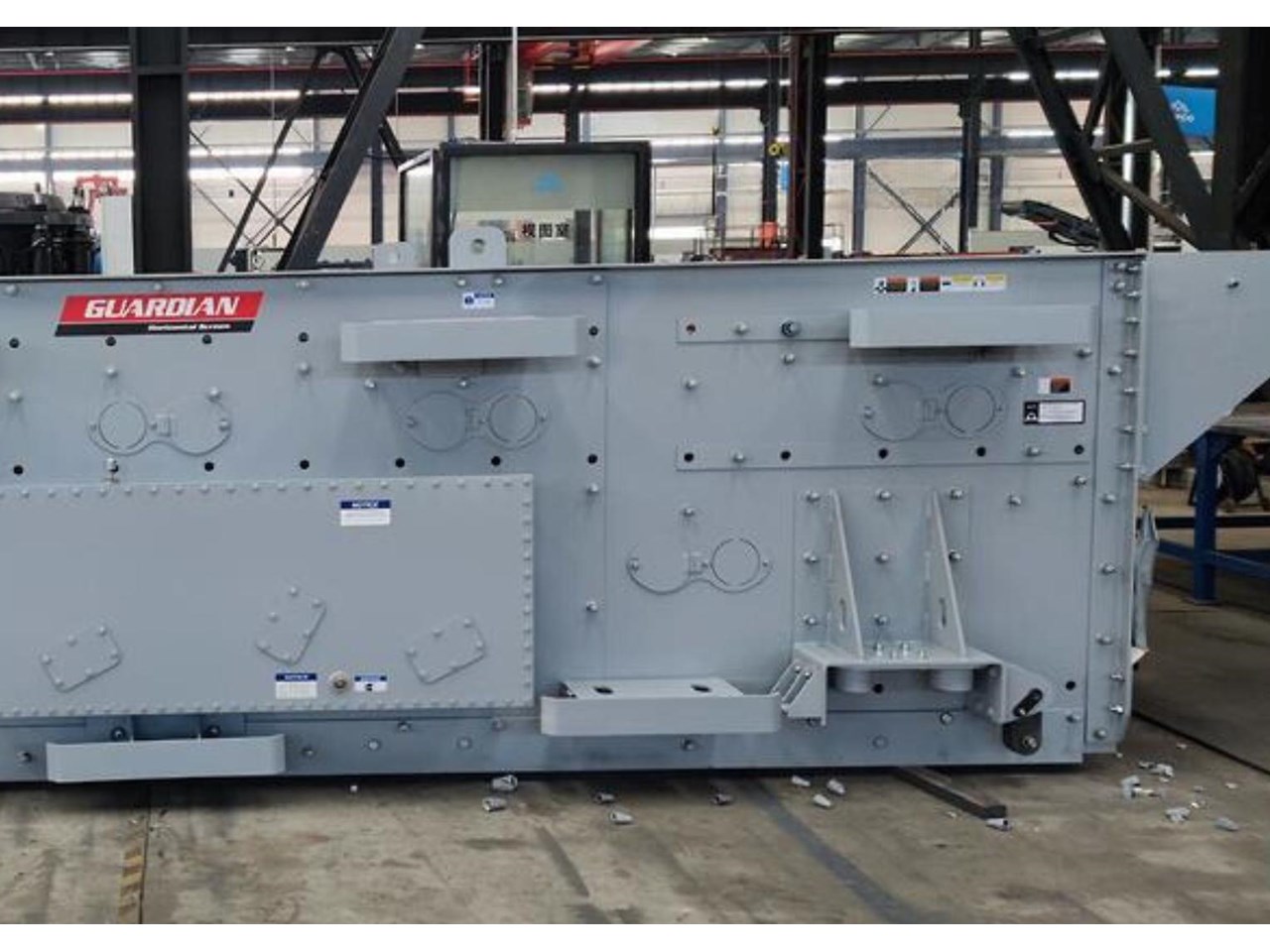

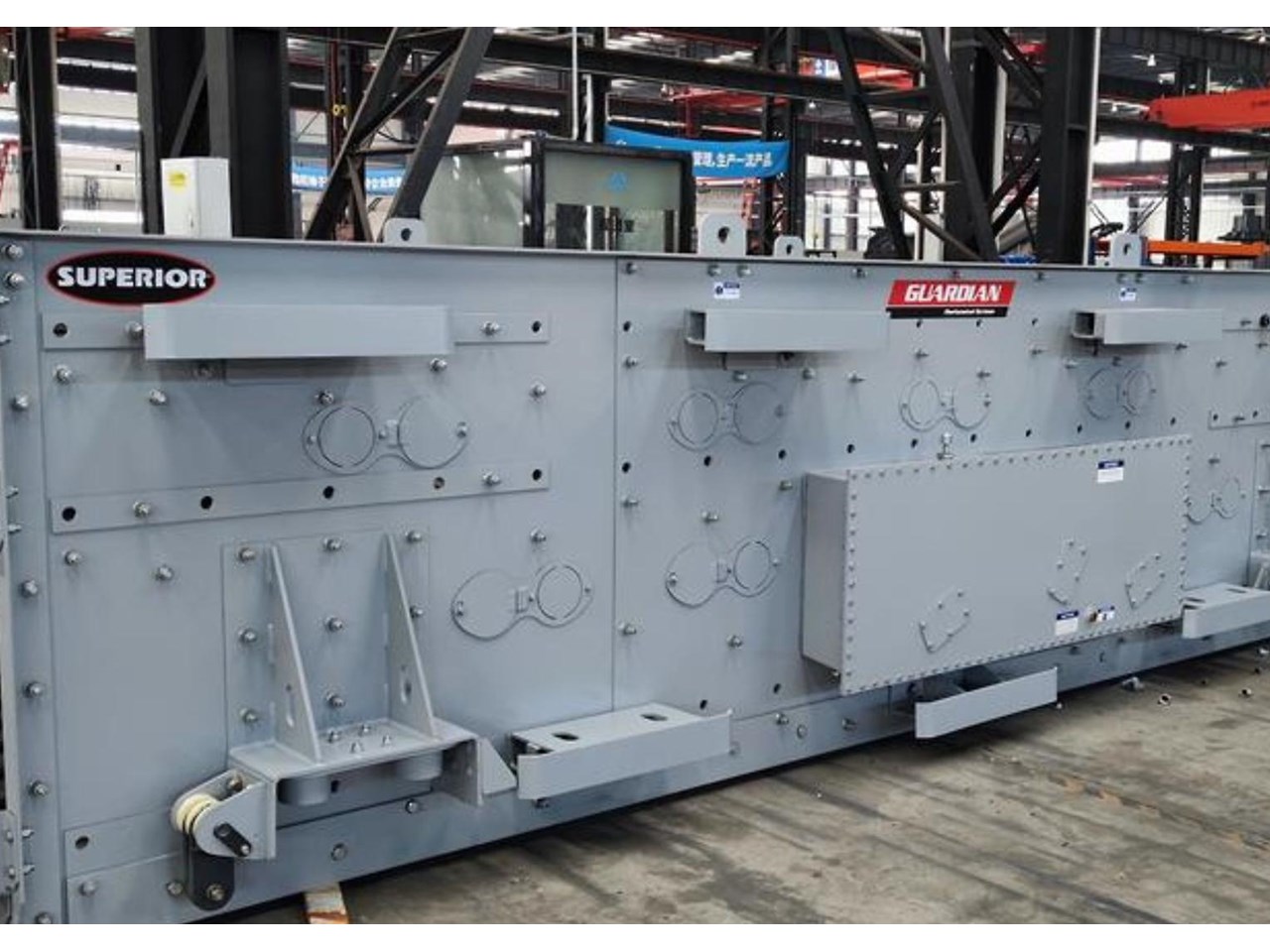

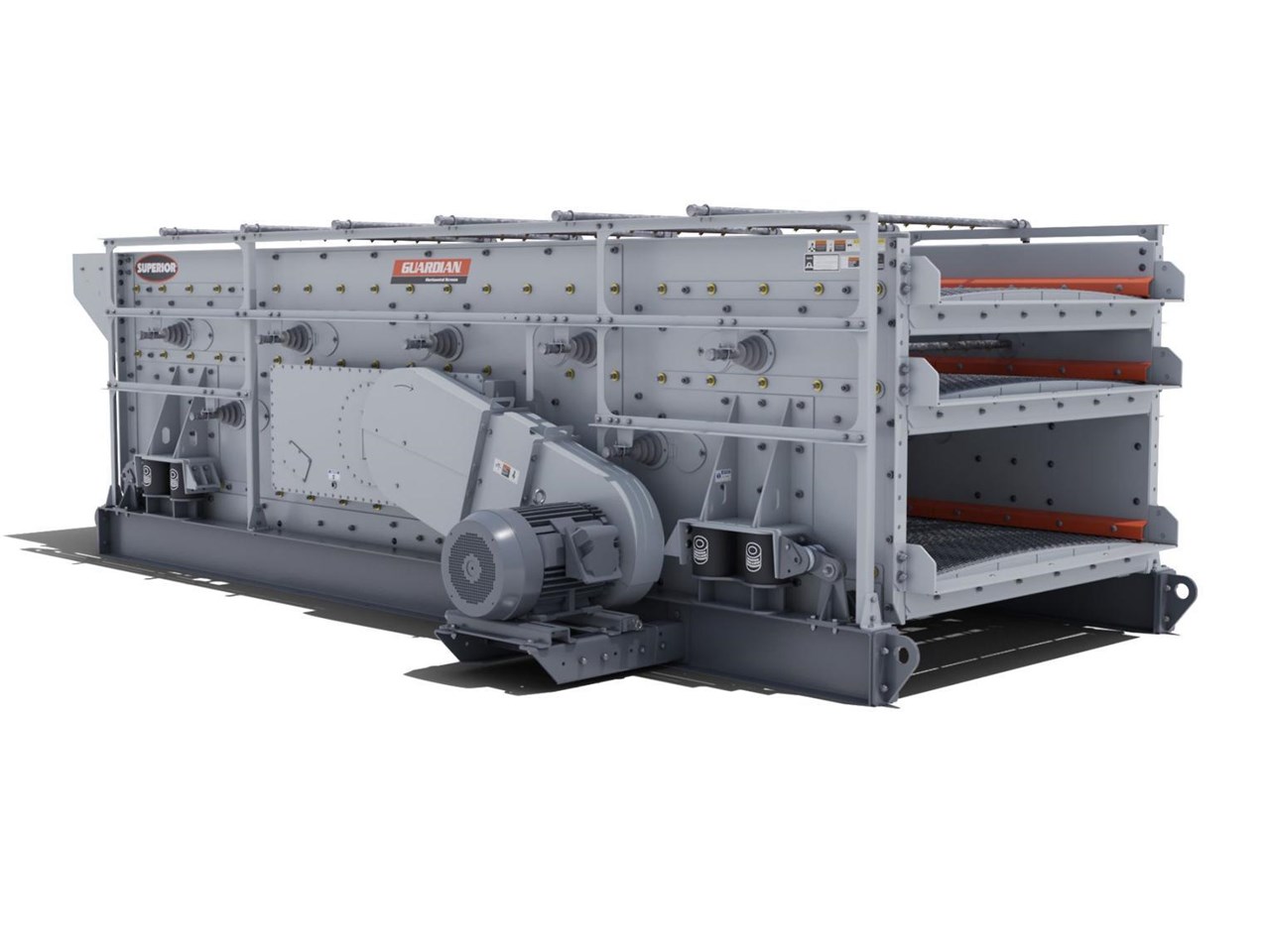

SUPERIOR INDUSTRIES GUARDIAN HORIZONTAL (6X20) 3 DECK SCREEN

Superior's vibratory horizontal screens are designed with satisfied owners in mind. That means every inch is consistently under investigation for improvement opportunities.

Repeatable quality is achieved during manufacturing thanks to work instructions at every stage, robotic assistance, and use of clean, shot-blasted steel to achieve higher quality welds and paint.

FEATURES
- Heavy-duty construction handles 10" (254mm) feed size and up to 4" (102mm) openings*
- Handles coarse and fine screening with adjustable oval stroke motion

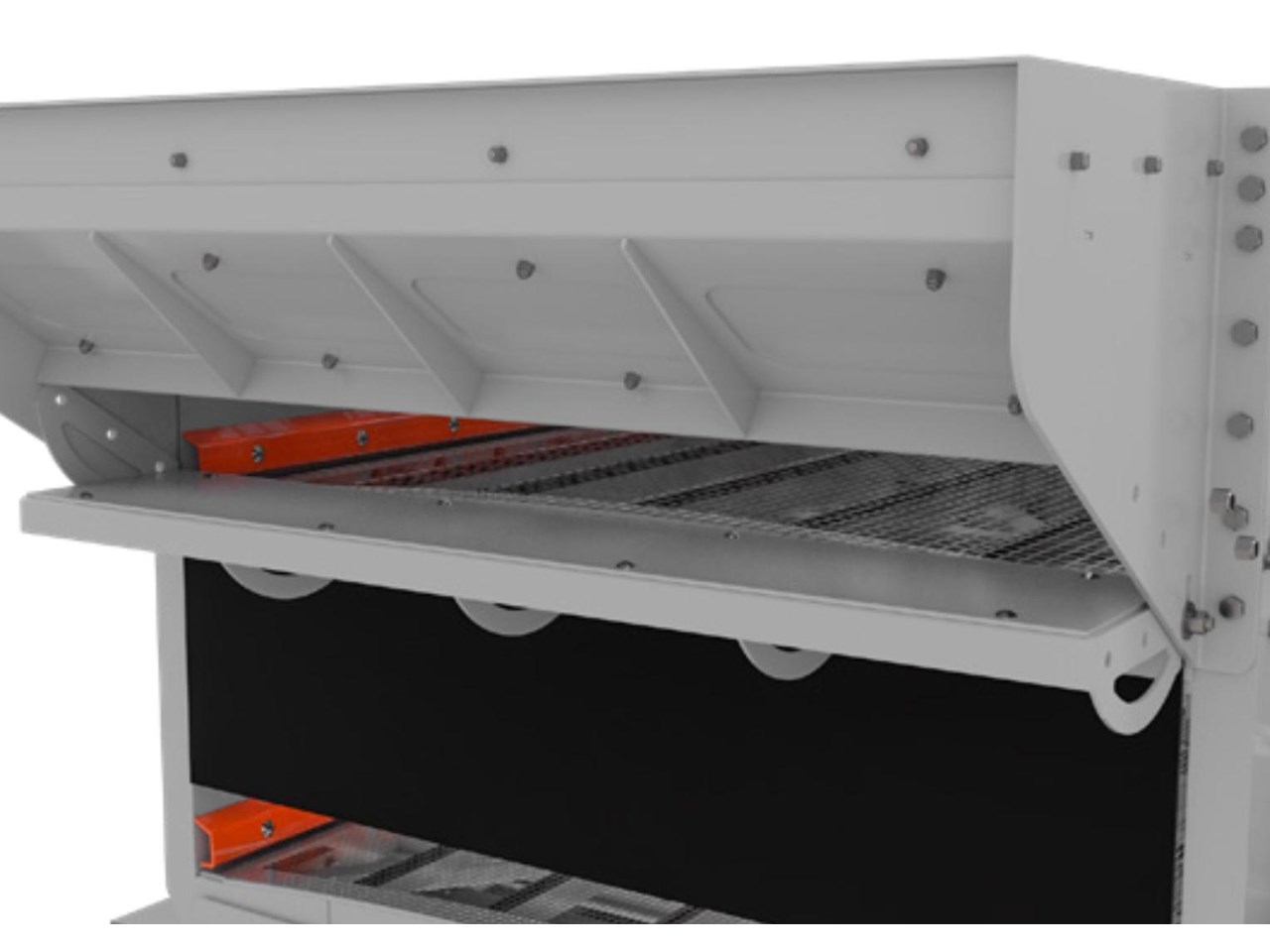

- Side tension single crown decks
- Wet or dry screening configurations
- Various deck options are available including scalping , flat urethane/rubber, and end tension styles*

• Medium Scalper option increases feed size to 14". This option includes 6" side liner/extensions and thicker feedbox and top discharge lip liners.

SPECIFICATIONS
- Speed: 730 - 835 RPM
- 415v, 50Hz Drive Motor
- Max Feed Size: 10" (254mm)**
- Speed: 730 - 835 RPM
- Stroke: 0.5 - .75" (12.5 - 20mm)

• TS (triple-shaft) 2.5 degree slope option 14"(355mm) with medium scalper top deck option
